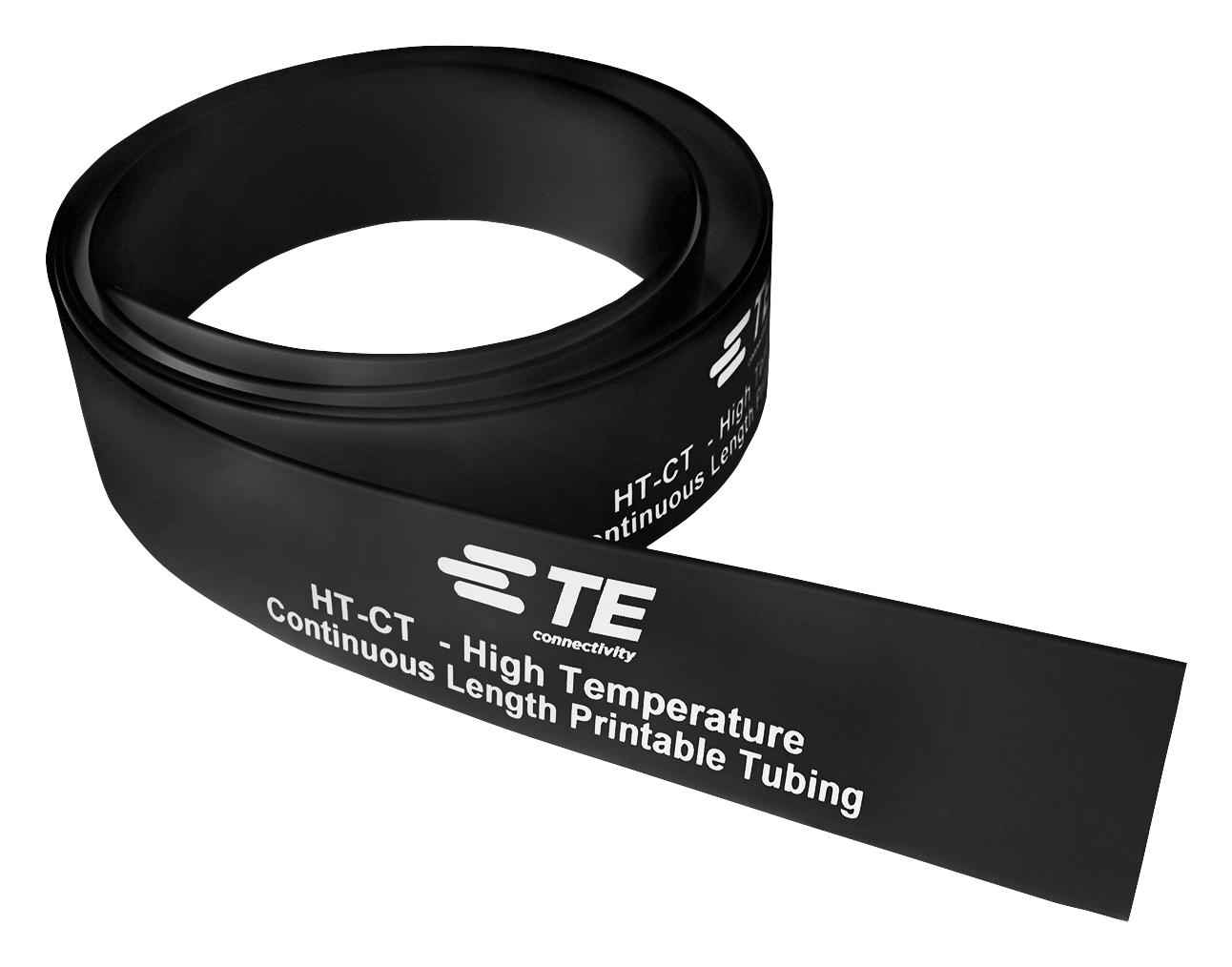

Raychem TE Connectivity HTCT50M38OUT0 High Temperature Heat Shrink Tube
High Temperature identification sleeve designed for wires and cables, made from radiation cross-linked material. Capable of operating up to 225°C, this heat shrink tube offers excellent chemical resistance, flame retardance, and is UL VW-1 rated. It features a 2:1 shrink ratio and is suitable for aerospace, military, rail, and industrial applications. The thin-walled, open-profile design facilitates easier installation. Compatible with specific printers and ribbons for optimal print performance; fully RoHS and REACH compliant. Available in various diameters and colors for versatile wiring identification.
Raychem TE Connectivity HTCT50M38OUT0 High Temperature Heat Shrink Tube Specifications:
- Operating Temperature Range: -55°C to 225°C (-67°F to 437°F)
- Material: Radiation cross-linked, flame retarded, UL VW-1 rated
- Shrink Ratio: 2:1 (e.g., 3/32 inch to 3.1/32 inch)
- Wall Thickness: Thin-walled, suitable for aggressive environments
- Colors Available: Standard Yellow, White; other colors on request
- Diameter Range: from 3/32 inch (2.4 mm) to 1-1/2 inch (38.1 mm)
- Spool Lengths: 50 meters (164 feet)
- Compliance: RoHS II, REACH, MIL 202J Method 215K, EN45545-2, NFPA 130
- Flame Retardant: UL VW-1 rated, self-extinguishing
- Resistant to chemicals, solvents, and aerospace/military fluids
- Compatible with TE identification printers and specific ribbons for optimal print quality
Buy the TE Series HT-CT High Temperature Identification Sleeve: HTCT50M38OUT0
Invest in the TE Connectivity High Temperature Heat Shrink Tube today to ensure durable and reliable wire identification. With operating temperatures up to 225°C, this flame-retardant, chemical-resistant sleeve is ideal for aerospace, military, rail, and industrial applications. Its advanced radiation cross-linked material provides excellent performance with low out-gassing, and the easy-open profile simplifies installation. Available in a variety of diameters and colors, this high-quality heat shrink solution is compatible with TE-specific printers and ribbons, making it an essential choice for professional wiring systems.
Order your TE Connectivity Series HT-CT high temperature heat shrink tube today and secure reliable wire and cable identification in demanding environments.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity HTCT50M38OUT0?
You can click on the BUY or RFQ button to purchase HTCT50M38OUT0 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part HTCT50M38OUT0?
You can download the HTCT50M38OUT0 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of HTCT50M38OUT0?
Raychem TE Connectivity
