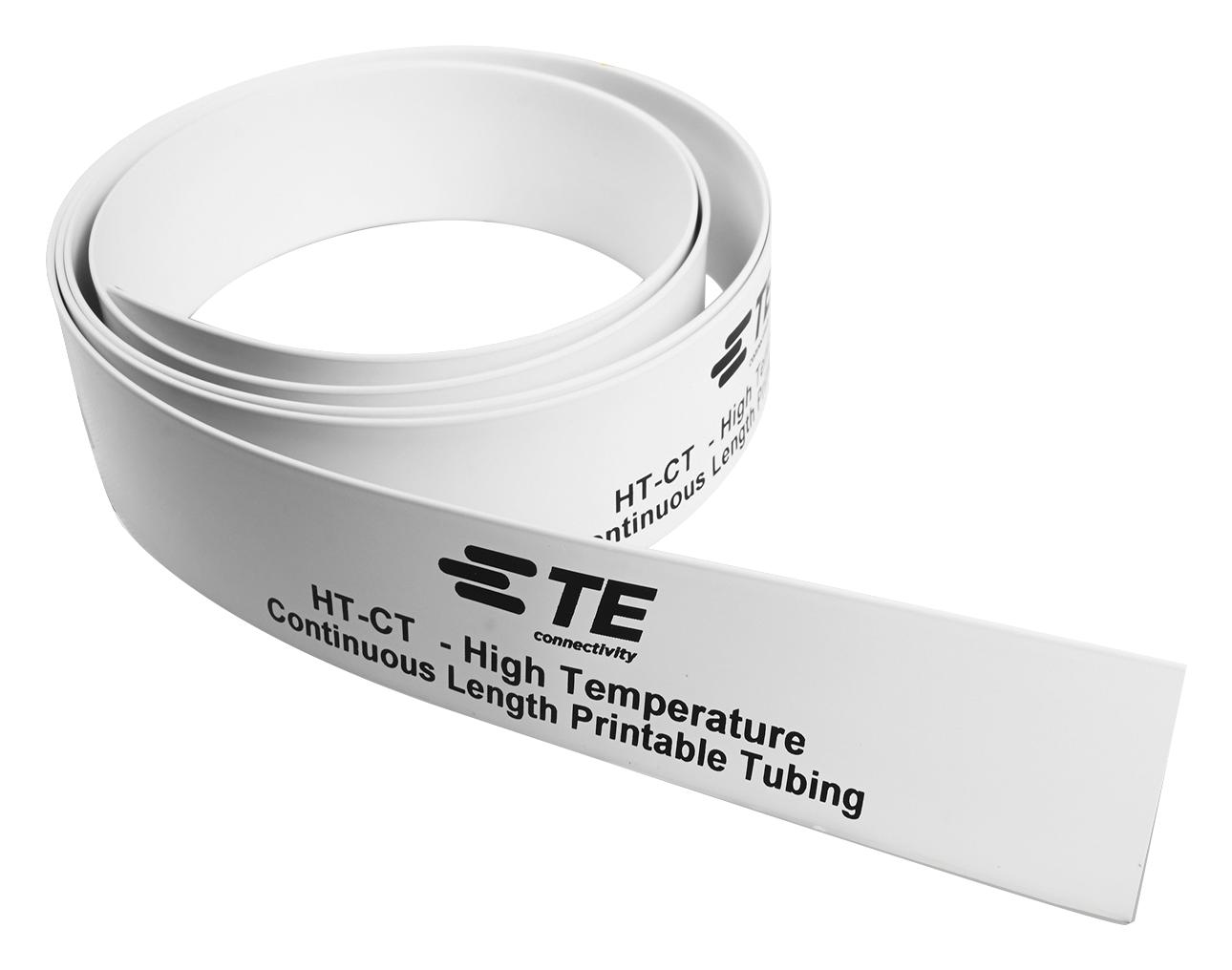

Raychem TE Connectivity HTCT50M34OUT9 Heat Shrink Identification Marker
The HT-CT series provides high-temperature, flame-retardant wire marking solutions made from advanced fluoropolymer material. Suitable for aerospace, military, rail, and industrial applications, it offers excellent chemical resistance and low-outgassing properties. Designed with a 2:1 shrink ratio and an open profile for easy application, this heat-shrinkable marker ensures secure wire identification in demanding environments. Supplied on a 50-meter spool, it supports various printer systems and complies with safety standards like UL VW-1. Operating temperatures range from -55°C to +225°C, making it ideal for space vehicles and high-heat environments worldwide.
Raychem TE Connectivity HTCT50M34OUT9 Heat Shrink Identification Marker Specifications:
- Material: Fluoropolymer, radiation cross-linked
- Flammability: UL VW-1 rated
- Chemical Resistance: Excellent against aerospace, military, rail, and industrial fluids
- Shrink Ratio: 2:1
- Operating Temperature Range: -55°C to +225°C (-67°F to 437°F)
- Profile: Open, easy to apply with firm hold after shrinking
- Spool Length: 50 meters (164 feet)
- Inside Diameter: 3/32 inch (0.094 inch, 2.4mm) before recovery, recommended for 0.035 to 0.075 inch cable diameters
- Color Options: Yellow (standard), white and other colors available on request
- Compatibility: Supports TE printer and ribbon systems, with software WINTOTAL for proper printing
Buy the Buy TE Connectivity High Temperature Identification Marker Part Number HTCT50M34OUT9 Online
Order TE Connectivity HTCT50M34OUT9 now for a high-performance, flame-retardant heat-shrink marker designed for demanding aerospace, military, rail, and industrial applications. With a 2:1 shrink ratio and operating temperatures up to 225°C, this fluoropolymer-based marker on a 50-meter spool ensures durable wire identification. Compatible with TE printers and ribbons, it offers excellent chemical resistance, low out-gassing, and easy application with a more open profile, providing a reliable solution for wire marking in extreme environments worldwide.
Buy TE Connectivity HTCT50M34OUT9 now and experience reliable high-temperature wire identification with flame-retardant heat-shrink markers designed for aerospace and industrial use.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity HTCT50M34OUT9?
You can click on the BUY or RFQ button to purchase HTCT50M34OUT9 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part HTCT50M34OUT9?
You can download the HTCT50M34OUT9 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of HTCT50M34OUT9?
Raychem TE Connectivity
