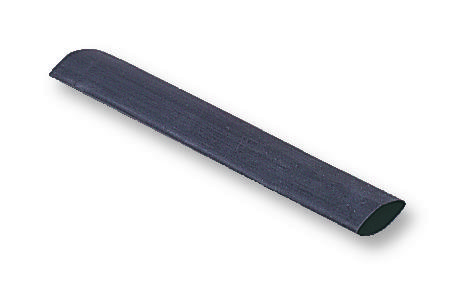

Raychem TE Connectivity DWFR52130STK Dual Wall Heat Shrink Tubing
The TE Connectivity DWFR-52/13-0-STK dual-wall, heat shrink tubing provides exceptional insulation and environmental sealing for electrical connections. Made from irradiated polyolefin with an adhesive inner layer, it features a 4:1 high shrink ratio, enabling coverage of various substrate sizes with fewer options. Its medium wall thickness offers enhanced mechanical protection against abrasion and bending stresses. Flame-retardant, moisture-resistant, and capable of withstanding temperatures from -40°C to 110°C, this tubing is ideal for sealing connector-to-cable transitions, repairing damaged jackets, and creating harness sealouts in industrial, automotive, and consumer applications. It complies with UL 224 VW-1 and is under CSA review, ensuring safety and reliability in demanding environments.
Raychem TE Connectivity DWFR52130STK Dual Wall Heat Shrink Tubing Specifications:
- Material: Irradiated polyolefin jacket with thermoplastic adhesive inner wall
- Shrink Ratio: 4:1
- Minimum Shrink Temperature: 60°C [140°F]
- Full Recovery Temperature: 110°C [256°F]
- Operating Temperature: -40°C to 110°C [-40°F to 230°F]
- Tensile Strength: 1500 psi (10.3 MPa) minimum
- Elongation: 200% minimum
- Dielectric Strength: 300 V/mil (11,811 V/mm) minimum
- Volume Resistivity: 10^10 ohm·cm (minimum)
- Flammability: UL 224 VW-1
- Water Absorption: 0.5% maximum
- Dimensions (Expanded I.D.): 52.0 mm (2.047 in)
- Wall Thickness (Recovered): 0.25 mm (0.010 in)
Buy the Buy TE Connectivity DWFR-52/13-0-STK Dual Wall Heat Shrink Tubing Online
Purchase TE Connectivity DWFR-52/13-0-STK dual wall heat shrink tubing online today. Designed for optimal electrical insulation, environmental sealing, and mechanical protection. Made from flame-retardant irradiated polyolefin with a high 4:1 shrink ratio, this tubing adapts to various substrate sizes, providing reliable performance in industrial, automotive, and electrical applications. Its medium wall thickness resists abrasion and bending stresses, ensuring durability and safety. Approved to UL 224 VW-1 standards and under consideration for CSA certification, it guarantees compliance and enhanced safety in critical environments.
Get TE Connectivity DWFR-52/13-0-STK today—built for insulation, environmental sealing, and mechanical protection in demanding environments.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity DWFR52130STK?
You can click on the BUY or RFQ button to purchase DWFR52130STK from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part DWFR52130STK?
You can download the DWFR52130STK datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of DWFR52130STK?
Raychem TE Connectivity
