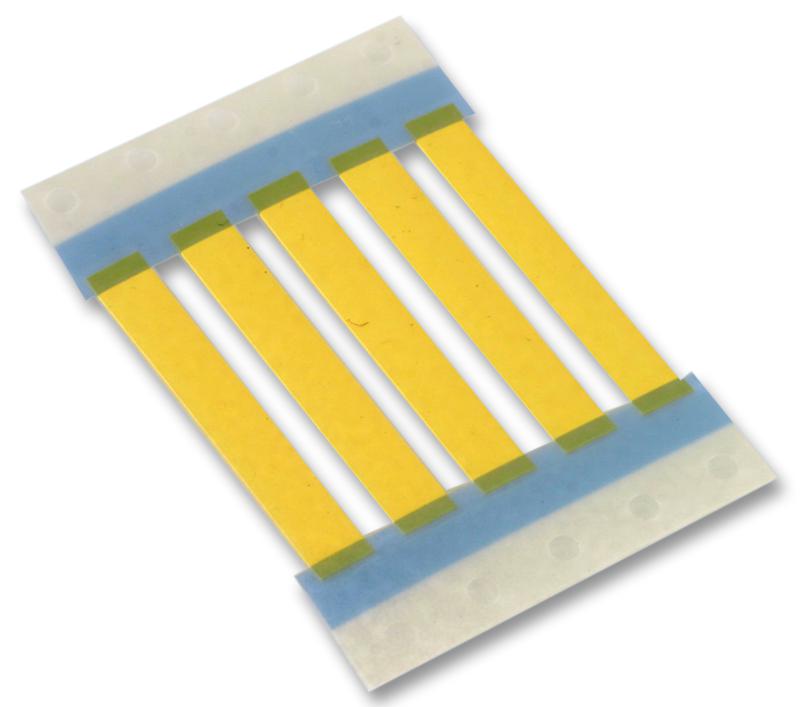

Raychem TE Connectivity TMSSCE316204 Heat Shrink Cable Markers
The TMS-SCE-3/16-2.0-4 is a heat-shrinkable wire identification sleeve made of radiation cross-linked polyolefin. Designed to meet high-performance wire and cable marking needs, this sleeve provides permanent, legible markings that withstand abrasion, aggressive cleaning solvents, and military fuels and oils. With a 2:1 shrink ratio, it features a rugged, thick wall and is easy to handle. The sleeve is compatible with computer-driven dot matrix or thermal transfer printers, reducing errors and cycle times. Supplied in a flat ladder format held between two hole-punched polyester strips, it feeds directly into compatible printers using recommended ribbons. This lightweight sleeve is ideal for industrial, defense, military, aerospace, and automotive applications.
Raychem TE Connectivity TMSSCE316204 Heat Shrink Cable Markers Specifications:
- Material: Radiation cross-linked polyolefin
- Shrink Ratio: 2:1
- Operating Temperature Range: -55°C to +135°C
- Minimum Recovery Temperature: 485°C
- Maximum Storage Temperature: +40°C
- Wall Thickness: Rugged, thick wall (approx. 0.075 inches)
- Color Options: Various (e.g., yellow, white, red, etc.)
- Supplied in flat ladder format with hole-punched polyester strips
- Compatible with dot matrix and thermal transfer printers
- UL Recognized and CSA Certified
- Meet MIL-STD-202F, SAE-AMS-DTL-23053/5 classes 1 and 3
- Flame Retardant, Radiation Crosslinked, CSA Certified, UL Recognized
- Operating Voltage: Not specified but suitable for wire marking
- Product Family: Heat Shrink Cable Markers
Buy the Tyco Series TMS-SCE Heat Shrink Cable Markers: TMSSCE316204
Order the Tyco TMS-SCE heat shrinkable wire identification sleeves online today for fast shipping and superior performance. Crafted from durable radiation cross-linked polyolefin, these sleeves are designed to meet the demanding needs of military and industrial applications. They provide permanent, legible markings that resist abrasion, chemicals, and extreme temperatures. Easy to print with dot matrix or thermal transfer printers, the sleeves come in a flat ladder format for accurate placement. Perfect for aerospace, automotive, and defense industries requiring reliable cable management solutions, these sleeves ensure long-lasting identification and simplified inventory management.
Buy Tyco cable identification sleeves now and experience unmatched durability, reliable markings, and easy integration with your industrial and aerospace projects.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity TMSSCE316204?
You can click on the BUY or RFQ button to purchase TMSSCE316204 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part TMSSCE316204?
You can download the TMSSCE316204 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of TMSSCE316204?
Raychem TE Connectivity
