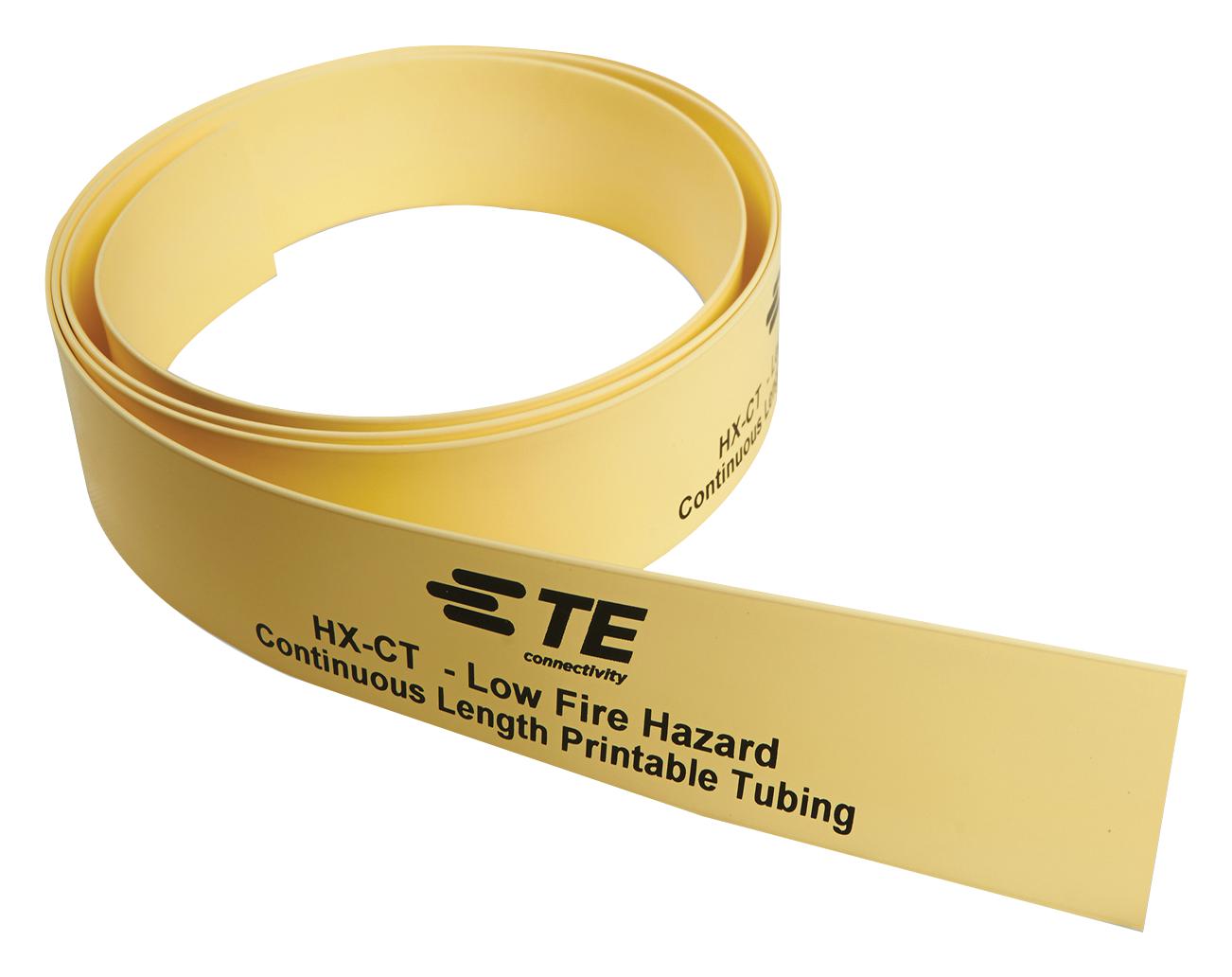

Raychem TE Connectivity HXCT40M254OUT4 Heat Shrink Wire Marker
The HX-CT series is a heat shrinkable wire marker designed for low fire hazard applications. It is zero halogen, producing low toxic fumes and smoke, and is self-extinguishing with non-flame propagating properties. The material offers excellent resistance to burning (typical LOI 39%) and is resistant to key rail and industrial fluids as specified by TE standard RW-2072. It features a 2:1 shrink ratio and a more open profile for easier application. Operating temperature ranges from -55°C to +105°C. The spool is compatible with outside printers and provides a length of 40 meters (131 feet).
Raychem TE Connectivity HXCT40M254OUT4 Heat Shrink Wire Marker Specifications:
- Material: Radiation cross-linked, halogen-free, flame-retardant
- Shrink Ratio: 2:1
- Operating Temperature Range: -55°C to +105°C
- Cable Compatibility: Suitable for cable diameters from 1.2mm to 38.1mm
- Length: 40 meters (131 feet)
- Color Options: Standard yellow, white, other colors available on request
- Resistant to industrial fluids and key rail substances
- Certifications: EN45545-2 Fire Hazard Classification 3, UL compliant, RoHS II, REACH
- Application: Wire and cable identification in rail and industrial environments
Buy the Buy TE Connectivity HX-CT Part Number HXCT40M254OUT4 Online
Secure your wiring projects with TE Connectivity's HX-CT heat shrink wire marker. This low fire hazard, halogen-free sleeve provides excellent flame retardancy and resistance to industrial fluids. Easy to apply with a 2:1 shrink ratio, it supports cable diameters from 1.2mm to 38.1mm and operates across temperatures from -55°C to +105°C. Available in multiple colors, this 40-meter spool ensures durable and compliant wire identification in critical applications like rail vehicles and industrial environments.
Order your TE Connectivity HX-CT marker spool today and ensure reliable, fire-safe identification for your rail and industrial wiring projects.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity HXCT40M254OUT4?
You can click on the BUY or RFQ button to purchase HXCT40M254OUT4 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part HXCT40M254OUT4?
You can download the HXCT40M254OUT4 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of HXCT40M254OUT4?
Raychem TE Connectivity
