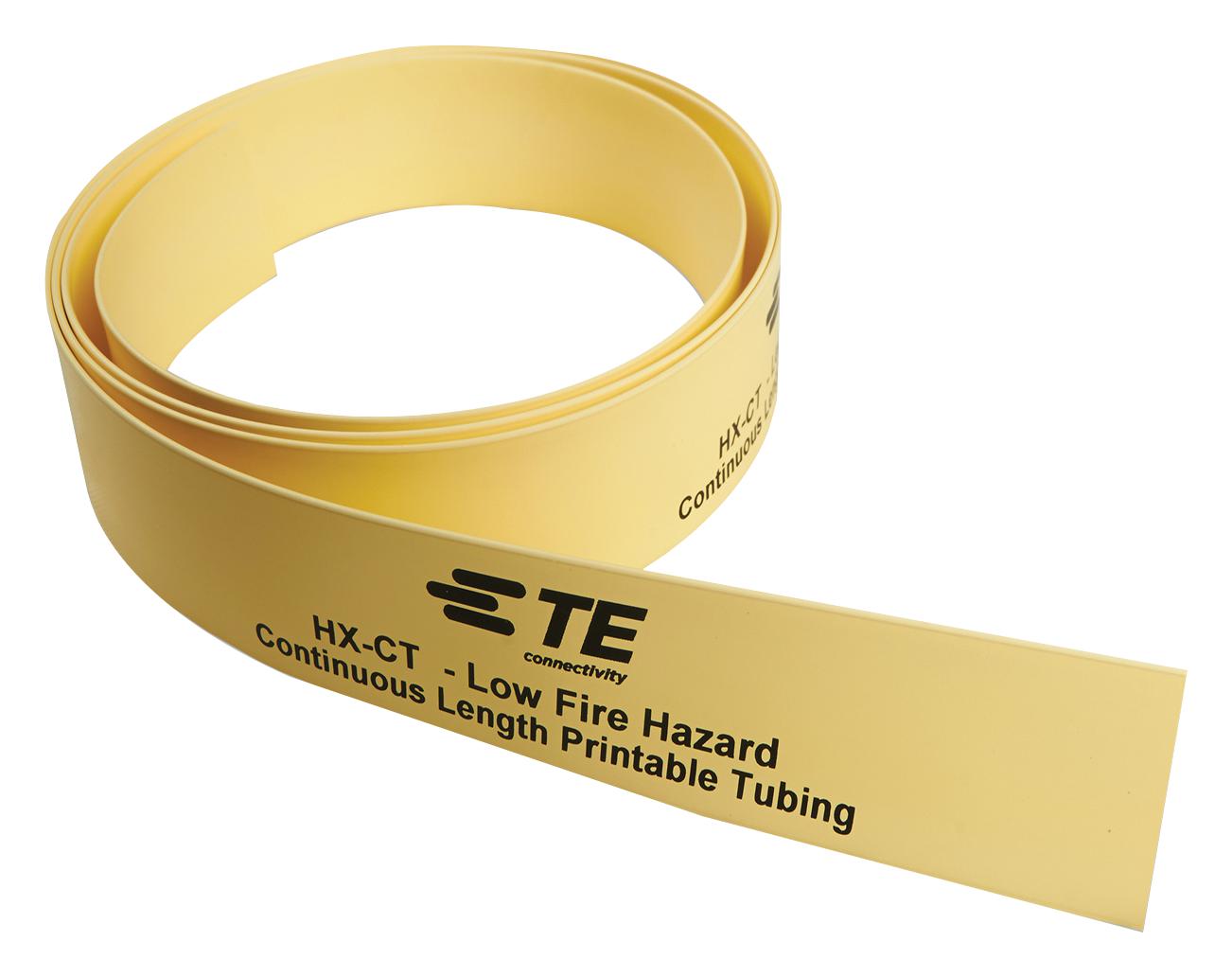

Raychem TE Connectivity HXCT50M190OUT4 Heat Shrink Marker
The HX-CT series is a heat shrinkable wire marker designed for safety and durability. It features zero halogen content, low toxic fumes, and low smoke emissions, making it ideal for environments where fire safety is critical. This self-extinguishing, non-flame propagating marker boasts excellent resistance to burning with a typical LOI of 39%, and is resistant to key rail and industrial fluids as per TE standard RW-2072. With a 2:1 shrink ratio, open profile for easy application, and operating temperature range of -55°C to +105°C, it ensures reliable wire identification in demanding conditions. Supplied in 50-meter spools compatible with external printers, it meets various fire safety standards including EN45545-2, BS 6853, and NF F 16-101.
Raychem TE Connectivity HXCT50M190OUT4 Heat Shrink Marker Specifications:
- Material: Radiation cross-linked, zero halogen, self-extinguishing, non-flame propagating
- Fire Safety: Meets EN45545-2 Fire Hazard Classification 3, BS 6853, NF F 16-101 standards
- LOI: 39% typical for burn resistance
- Shrink Ratio: 2:1
- Operating Temperature: -55°C to +105°C (-67°F to 221°F)
- Spool Length: 50 meters (164 feet)
- Inner Diameter Options: 2.4 mm to 38.1 mm (0.094 in to 1.50 in)
- Wall Thickness: Compatible with recommended cable diameters from 1.27 mm to 33.0 mm (0.050 in to 1.299 in)
- Colors Available: Yellow, White, Brown, Red, Orange, Green, Blue, Violet, Grey, Black
- Application: Suitable for identification of wires and cables in rail and industrial environments
- Resistance: To rail fluids, industrial chemicals, and key industrial solvents
- Printer Compatibility: External printers with specific spool sizes; recommended ribbons available
Buy the Buy TE Connectivity HX-CT Part Number HXCT50M190OUT4 Online
Enhance your wire management with TE Connectivity's HX-CT Heat Shrink Marker. Designed for safety and durability, it features a 2:1 shrink ratio, excellent flame resistance, and resistance to industrial fluids. Ideal for rail and industrial applications, it complies with fire safety standards such as EN45545-2 and BS 6853. Available in multiple colors and sizes, it provides a secure and durable solution for wire identification. Purchase online today to ensure reliable, high-quality cable marking in critical environments.
Order your TE Connectivity HX-CT low fire hazard heat shrink marker today and ensure safe, reliable wire identification in demanding environments.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity HXCT50M190OUT4?
You can click on the BUY or RFQ button to purchase HXCT50M190OUT4 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part HXCT50M190OUT4?
You can download the HXCT50M190OUT4 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of HXCT50M190OUT4?
Raychem TE Connectivity
