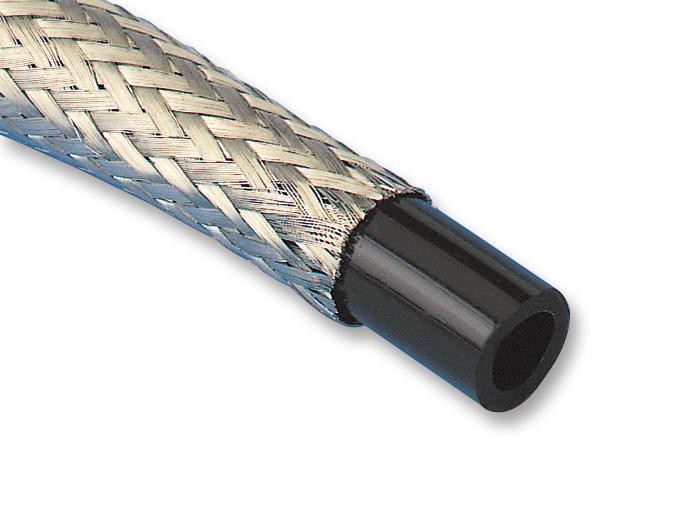

Raychem TE Connectivity LWB1016010 Screening Braid
The INSTALITE lightweight screening braid is composed of copper alloy with options for tin or nickel plating, suitable for electromagnetic shielding and grounding applications. This high-quality braid offers excellent electrical conductivity, with diameters ranging from 3.0 to 20.0 mm and coverage of 85-90%. Its flexible design adapts to various installation needs, ensuring durability and reliable performance in electronic and industrial environments. Tested to meet WSD 2516 standards, it is ideal for shielding connections requiring high performance and resistance to wear and corrosion, making it an essential component for advanced electronic systems.
Raychem TE Connectivity LWB1016010 Screening Braid Specifications:
- Material: Copper Alloy with Tin or Nickel Plating
- Nominal Diameter: 3.0 mm to 20.0 mm
- Nominal Weight: 28.00 kg/km at 3.0 mm, 7.00 kg/km at 20.0 mm
- Nominal DC Resistance: 90-96.4% coverage, resistance varies with diameter
- Coverage: 85-90%
- Performance Standard: Meets WSD 2516 requirements
- Recommended Range: 3.0 to 4.5 mm for LWB-10X-3.0, 45 to 8.0 mm for LWB-10X-6.0, 8.0 to 15.0 mm for LWB-10X-10.0, 15.0 to 25.0 mm for LWB-10X-20.0
- Part Number Format: LWB-10X followed by plating type and diameter
- Plating Types: 1 = Tin, 3 = Nickel
- Standards: Tested to WSD 2516 standard
- Brand: TE Connectivity
Buy the Buy TE Connectivity Screening Braid Part Number LWB1016010 Online
Purchase the TE Connectivity screening braid online today to benefit from high-quality copper alloy shielding that offers excellent electrical conductivity and durability. Ideal for grounding, shielding, and electromagnetic interference mitigation, this braid conforms to industry standards and provides flexible installation options for electronic and industrial systems. With multiple diameters and plating options, buying online ensures quick delivery and authentic products, helping you maintain system integrity and performance in demanding environments.
Buy TE Connectivity LWB1016010 screening braid now and ensure reliable electromagnetic shielding with corrosion-resistant copper alloy for industrial applications.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity LWB1016010?
You can click on the BUY or RFQ button to purchase LWB1016010 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part LWB1016010?
You can download the LWB1016010 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of LWB1016010?
Raychem TE Connectivity
