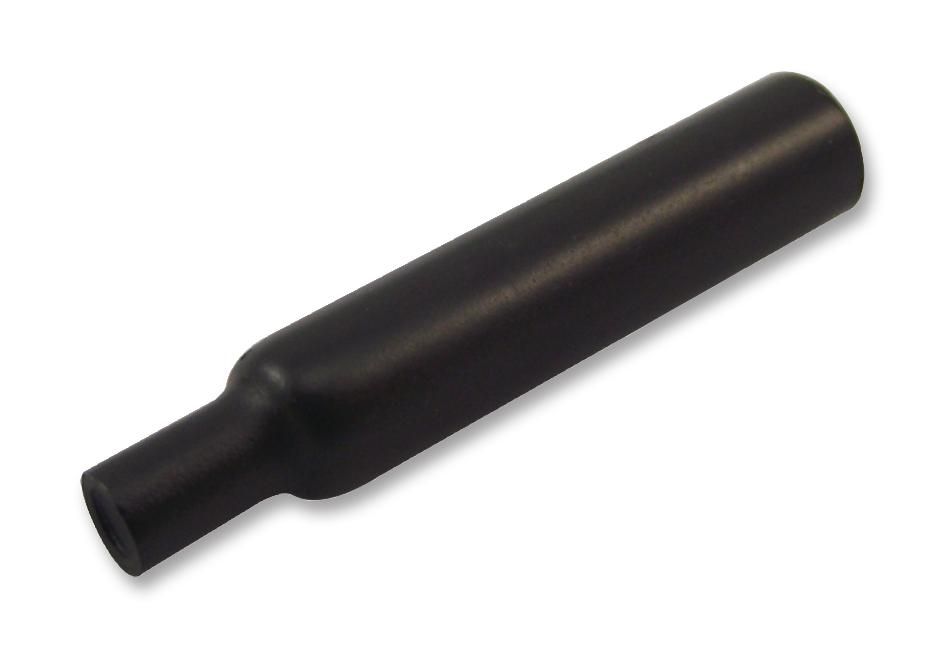

Raychem TE Connectivity PDCAP180 Electrical Insulation Caps
Heat-shrinkable, dual wall PD Caps provide an efficient solution for encapsulating crimped electrical connections, such as motor coils. Made from radiation-crosslinked polyolefin, these semirigid end caps shrink quickly with heat, creating a tight, electrically insulated seal. They are easy to install using standard heating tools like hot-air or infrared devices, without requiring special training. Designed for quick, reliable insulation, PD Caps are suitable for applications where immersion in fluids isn't necessary, ensuring long-term durability and protection for electrical connections.
Raychem TE Connectivity PDCAP180 Electrical Insulation Caps Specifications:
- Full recovery temperature: 135°C
- Continuous operating temperature: 55°C to 110°C
- Physical Dimensions: PD Cap sizes range from 1/8 inch to 1/2 inch, with outer diameters from 3.2 mm to 12.7 mm, and lengths from 12.7 mm to 21.6 mm.
- Wall Thickness: Less if recovery is restricted during shrinkage.
- Material: Outers made of heat-shrinkable, semirigid polyolefin; inner wall meltable polyolefin.
- Tensile Strength: 1500 psi minimum
- Ultimate Elongation: 200% minimum
- Dielectric Strength: 500 volts/mil minimum
- Volume Resistivity: 10^5 ohm-cm
- Low-Temperature Brittleness: No failure at -65°C
- Chemical Resistance: Noncorrosive, resistant to JP-8 Fuel, Skydrol, hydraulic fluid, gasoline, and water
- Water Absorption: 0.1% maximum
- Electrical Resistance: Meets ASTM standards for dielectric strength and volume resistivity
- Certifications: UL Listed, CSA Certified
Buy the Tyco Electronics Series PD Caps: Insulating Heat-shrinkable End Caps for Electrical Connections
Purchase Tyco Electronics Series PD Caps online today for fast, dependable insulation of electrical connections. These heat-shrinkable, polyolefin caps are easy to install, offering high mechanical strength and reliable dielectric protection. Ideal for motor coils and other electrical applications, they shrink quickly with standard heat tools, creating a secure seal. Their durable material resists chemicals and temperature extremes, ensuring long-term performance. Simplify your wiring insulation process with these professionally designed, easy-to-use caps—order online now for quick delivery and optimal connection protection.
Order your Tyco Electronics Series PD Caps today and ensure quick, reliable insulation for your electrical connections with professional-grade heat-shrinkable caps.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity PDCAP180?
You can click on the BUY or RFQ button to purchase PDCAP180 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part PDCAP180?
You can download the PDCAP180 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of PDCAP180?
Raychem TE Connectivity
