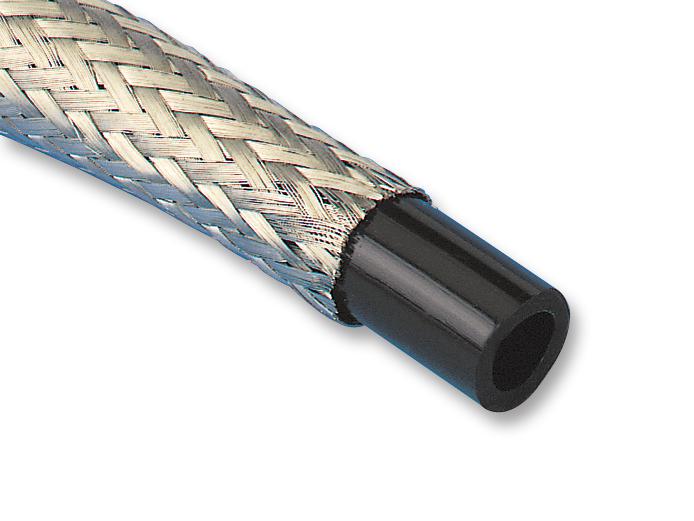

Raychem TE Connectivity RAY10110010 Tubular wire braid
The RayBraid RAY-101-10.0(10) is a tinned copper tubular braid used for electrical screening of wire bundles and military harnesses. Supplied on a tube former for easier assembly and enhanced durability compared to flattened braid, it offers high optical coverage for effective shielding. Compatible with Tinel-Lock adapters for secure termination to connectors, it is suitable for industrial, aerospace, and power management applications. The braid’s flexible design allows for reliable performance in complex wiring harness systems, ensuring optimal electromagnetic interference (EMI) protection and easy handling during assembly processes.
Raychem TE Connectivity RAY10110010 Tubular wire braid Specifications:
- Material: Tinned copper
- Type: Tubular braid
- Diameter: 10.0 mm
- Coverage: Minimum 93% optical coverage
- Maximum bundle diameter: 12.0 mm
- Minimum bundle diameter: 7.0 mm
- Strand Size: 36/0.13 mm
- Number of carriers per size: 24
- Flexible expansion ratio: Minimum 2:1
- Max. number of ends per carrier: 15
- Compatibility: Tinel-Lock adaptors for braid termination
- Temperature suitability: High-temperature applications
- Finish: Tinned copper available, nickel plated versions also supplied
- Application: Wire harness screening, military and industrial shielding
Buy the Buy Raychem RAY-101-10.0(10) Part Number RAY10110010 Online
Purchase the Raychem RAY-101-10.0(10) tubular wire braid online for high-performance electrical shielding of wire bundles and military harnesses. Supplied on a convenient tube former, this tinned copper braid offers minimum 93% optical coverage, ensuring superior electromagnetic interference protection. Its flexible expansion ratio allows for easy installation in complex wiring systems across aerospace, industrial, and power management sectors. Compatible with Tinel-Lock connectors, it guarantees a secure termination. Perfect for demanding environments requiring durability, high-temperature resistance, and easy handling during assembly processes.
Get Raychem RAY-101-10.0(10) today—built for reliable electrical shielding in demanding industrial and military applications.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity RAY10110010?
You can click on the BUY or RFQ button to purchase RAY10110010 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part RAY10110010?
You can download the RAY10110010 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of RAY10110010?
Raychem TE Connectivity
