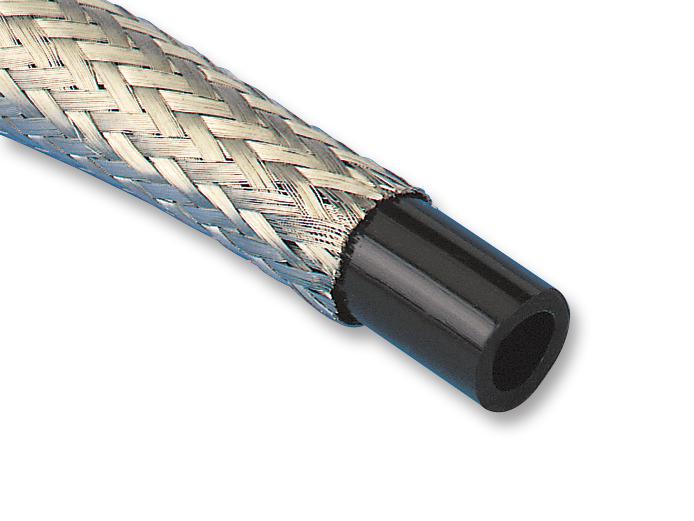

Raychem TE Connectivity RAY10140100 Copper Braid Shielding
RAYBRAID® plated copper braid is a flexible, high-quality shielding and grounding solution designed for electronic and electrical applications. It features various sizes with different strand configurations, coverage, and internal diameters, suitable for shielding, EMI/RFI protection, and flexible grounding. The braid is available in tin or nickel plating, providing corrosion resistance and enhanced durability. It complies with WSD 1922 standards, ensuring reliable performance in demanding environments. Easy to install and custom-cut, RAYBRAID® enhances the reliability and safety of electrical systems with its excellent electrical conductivity and mechanical flexibility.
Raychem TE Connectivity RAY10140100 Copper Braid Shielding Specifications:
- Plating Type: Tin or Nickel
- Strand Configuration: 36/0.127 mm for most sizes, 32/0.203 mm for larger diameters
- Coverage: 93%
- Internal Diameter: Ranges from 3.0 mm to 40.0 mm
- Weight: 14.1 kg/km to 305 kg/km depending on size
- Maximum Carrier Ends: 10 to 48
- Nominal Internal Diameter: From 3.0 mm to 40.0 mm
- Performance: Meets WSD 1922 standards for electrical performance
- Conductor Material: Copper
- Compliance: UL Listed and CSA Certified
- Flexibility: Designed for easy installation and cutting
- Application: EMI/RFI shielding, grounding, industrial electronics
- Environment: Suitable for demanding environments, corrosion-resistant
Buy the Buy TE Connectivity RAYBRAID Copper Braid Part Number RAY10140100 Online
Enhance your electrical and electronic projects with TE Connectivity RAYBRAID Copper Braid, available for quick online purchase. Designed for shielding, grounding, and EMI protection, this copper braid offers high coverage and excellent electrical conductivity. With sizes ranging from 3.0 mm to 40.0 mm, plus tin or nickel plating options, it ensures durability and corrosion resistance. Whether you’re working on industrial electronics or demanding environments, RAYBRAID guarantees reliable performance, easy installation, and a perfect fit for your shielding and grounding needs. Shop online now for quick delivery and top-quality performance.
Buy TE Connectivity RAY10140100 now and experience unmatched reliability and flexible EMI shielding for electrical systems.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity RAY10140100?
You can click on the BUY or RFQ button to purchase RAY10140100 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part RAY10140100?
You can download the RAY10140100 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of RAY10140100?
Raychem TE Connectivity
