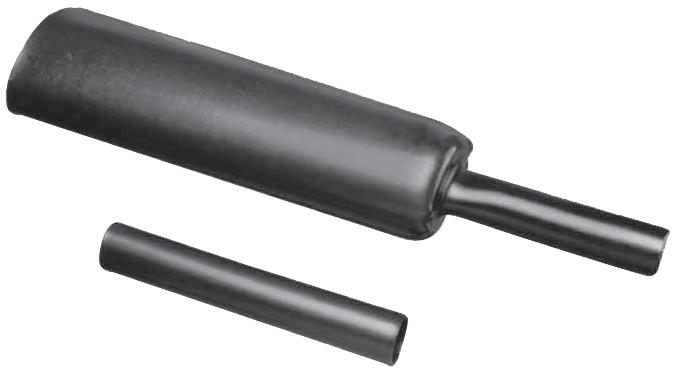

Raychem TE Connectivity RMW180601200ADH0 Polyolefin Heat-Shrink Tubing
RMW is a medium wall, heat-shrinkable polyolefin tubing designed for low-voltage cable insulation, protection, and strain relief. Its impact- and abrasion-resistant crosslinked polyolefin easily shrinks rapidly upon heating, conforming tightly to substrates and providing a moisture-proof seal with adhesive-lined options. Suitable for cable joints and repairs, RMW withstands mechanical abuse, chemicals, and moisture, ensuring high reliability. It offers quick installation without special skills, making it ideal for electrical systems requiring durable, environmental, and electrical insulation performance across a wide range of diameters.
Raychem TE Connectivity RMW180601200ADH0 Polyolefin Heat-Shrink Tubing Specifications:
- Material: Crosslinked polyolefin
- Full recovery temperature: 125°C
- Continuous operating temperature: 55°C to 110°C
- Inside diameter: varies from 3 mm to 75 mm
- Wall thickness (recovered): approximately 0.039 mm to 0.098 mm
- Tensile strength: Minimum 2000 psi (14 MPa)
- Ultimate elongation: Minimum 350%
- Specific gravity: 1.2
- Hardness Shore D: 50 to 70
- Dielectric strength: Minimum 500 volts/mil (200 kV/mm)
- Volume resistivity: ≥ 1×10^16 ohm-cm
- Water absorption: ≤ 0.1%
- Chemical resistance: Noncorrosive, resistant to oils and moisture
- Flammability: UL 94V-0 compliant
- Impact and abrasion resistance: High, suitable for harsh environments
Buy the Buy Tyco Electronics RMW Part Number RMW180601200ADH0 Online
Enhance your electrical projects with Tyco Electronics RMW heat-shrinkable tubing. Its impact and chemical resistance make it ideal for cable insulation, sealing, and protection. The fast shrinking process conforms tightly for a moisture-proof, environmentally sealed connection. Suitable for low-voltage systems, it provides excellent electrical insulation, durability, and strain relief. Available in various sizes, this tubing is easy to install without special tools, ensuring high reliability and long-term performance in demanding environments. Purchase online today for dependable electrical protection.
Order your Tyco Electronics RMW adhesive-lined heat-shrink tubing today and ensure reliable cable insulation with quick, easy installation for low-voltage systems.
