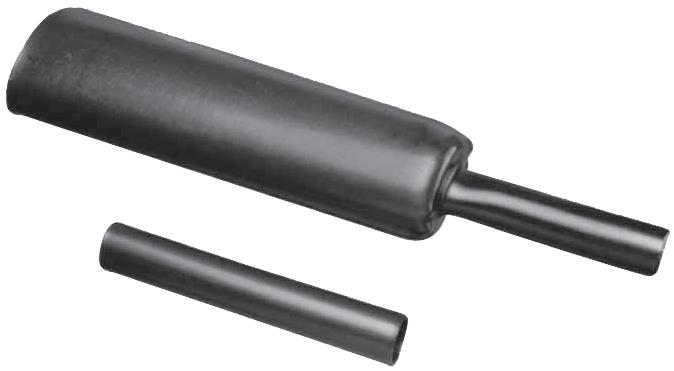

Raychem TE Connectivity RMW35121200ADH0 Heat-shrink tubing
The medium wall, polyolefin heat-shrinkable tubing is designed for low-voltage electrical applications, offering insulation, strain relief, and environmental sealing. RMW tubing is tough, abrasion-resistant, and resistant to impact, chemicals, and moisture, making it ideal for cable joints and repairs. Adhesive-lined variants provide a moisture-proof seal, enhancing reliability and corrosion protection. Quick to install, the tubing shrinks rapidly when heated, conforming tightly to cables and components. Suitable for industrial electrical insulation, it combines durability, ease of use, and broad diameter coverage, ensuring long-lasting performance in demanding environments.
Raychem TE Connectivity RMW35121200ADH0 Heat-shrink tubing Specifications:
- Material: Crosslinked polyolefin
- Full recovery temperature: 125°C
- Continuous operating temperature: 55°C to 110°C
- Inside diameter (expanded): D(min) to d(max) mm (inches)
- Wall thickness after recovery: 0.039 to 0.055 mm (0.0015 to 0.0022 inches)
- Tensile strength: 2000 psi (14 MPa) minimum
- Ultimate elongation: 350% minimum
- Specific gravity: 1.2 maximum
- Hardness: Shore D 50-70
- Dielectric strength: 500 volts/mil (200 kV/mm) minimum
- Volume resistivity: 1 x 10^15 ohm-cm
- Water absorption: 0.1% maximum
- Chemical resistance: Noncorrosive under test conditions
- Fluid resistance: Maintains tensile strength and elongation after exposure
- Adhesive: Melts and flows upon shrinking to environmentally seal the splice
- Color: Black
- Packaging: 1200 mm (approx. 47.2 inches) lengths
- Marking: Product name, size, batch number
- Compliance: ASTM D 412, ASTM D 792, ASTM D 2240, ASTM D 2671, ASTM D 149, ASTM D 257, ASTM G21, ASTM D 570, DVE 0370 oil
Buy the Tyco Electronics RMW35121200ADH0 – Reliable Heat-Shrinkable for Industrial Applications
Purchase Tyco Electronics RMW35121200ADH0 heat-shrink tubing online today—ideal for electrical insulation, strain relief, and environmental sealing. It shrinks quickly when heated to conform tightly around cables and joints, providing a moisture-proof and corrosion-resistant environment. The tough, impact-resistant material withstands mechanical abuse, chemicals, and low temperatures. Easy to install, it reduces assembly time and overall costs while ensuring long-lasting performance in low-voltage electrical systems. Suitable for diverse industrial applications, this reliable tubing ensures safety, durability, and ease of use for technicians and engineers alike.
Get Tyco Electronics RMW35121200ADH0 today—designed for durable electrical insulation and environmental sealing in demanding industrial environments.
