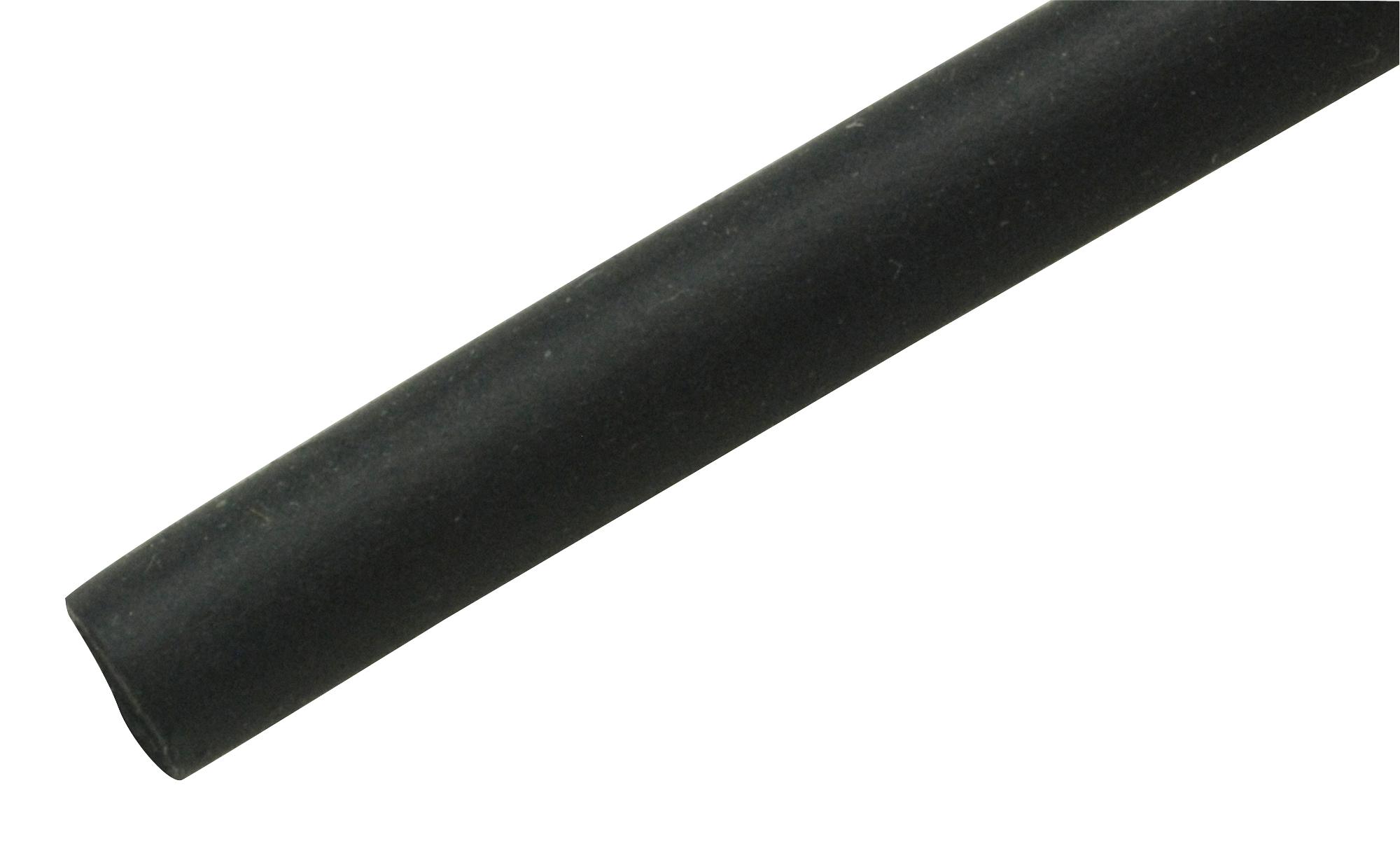

Raychem TE Connectivity RNF1001160STK Heat Shrink Tubing
The RNF-100 series from TE Connectivity is a high-performance, flame-retardant, polyolefin heat shrinkable tubing suitable for various industrial applications. Made from irradiated, modified polyolefin material, this flexible, single-wall tubing features a 2:1 shrink ratio and is available in a wide range of colors and sizes. It is designed to withstand elevated temperatures, mechanical abrasion, and fluids such as aviation fuel, hydraulic fluid, lubricating oil, and water. The tubing has excellent physical, chemical, and electrical properties, meeting both industrial and military standards, including MIL-DTL-23053/5 Class 1&2. It supports a maximum working voltage of 600V, with a minimum shrink temperature of +121°C and an operating temperature range from -55°C to +135°C.
Raychem TE Connectivity RNF1001160STK Heat Shrink Tubing Specifications:
- Material: Flame-retardant polyolefin
- Shrink Ratio: 2:1
- Temperature Rating: Minimum shrink temperature of 121°C, continuous operating temperature from -55°C to 135°C
- Voltage Rating: 600 V
- Standards: MIL-DTL-23053/5 Class 1 and 2, UL-recognized, CSA-certified
- Color Options: Black, clear, white, red, blue, green, yellow, brown, orange, violet, gray
- Physical Dimensions: Sizes range from 3/64" to 5", with expanded and recovered diameters and wall thickness specified per size
- Electrical Properties: Dielectric strength minimum 500 volts/mil, volume resistivity over 10^14 ohm-cm
- Chemical Resistance: Resistant to aviation fuel, hydraulic fluid, lubricating oil, and water
- Flammability: Self-extinguishing
Buy the Tyco Series RNF-100 Heat Shrink Tubing: RNF1001160STK
Purchase Tyco RNF-100 heat shrink tubing online today to ensure optimal insulation and protection for your electrical and industrial projects. Designed to meet strict military standards, this flame-retardant polyolefin tubing offers a reliable solution for wire bundling, strain relief, and color-coding in both commercial and military environments. Available in multiple sizes and colors, it withstands elevated temperatures, mechanical abrasion, and exposure to various fluids. Order now for fast delivery and expert support, ensuring your applications are protected with high-quality, certified tubing that’s built for durability and safety.
Get Tyco RNF-100 heat shrink tubing today—built for high performance, reliable insulation, and long-lasting durability in demanding environments.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity RNF1001160STK?
You can click on the BUY or RFQ button to purchase RNF1001160STK from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part RNF1001160STK?
You can download the RNF1001160STK datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of RNF1001160STK?
Raychem TE Connectivity
