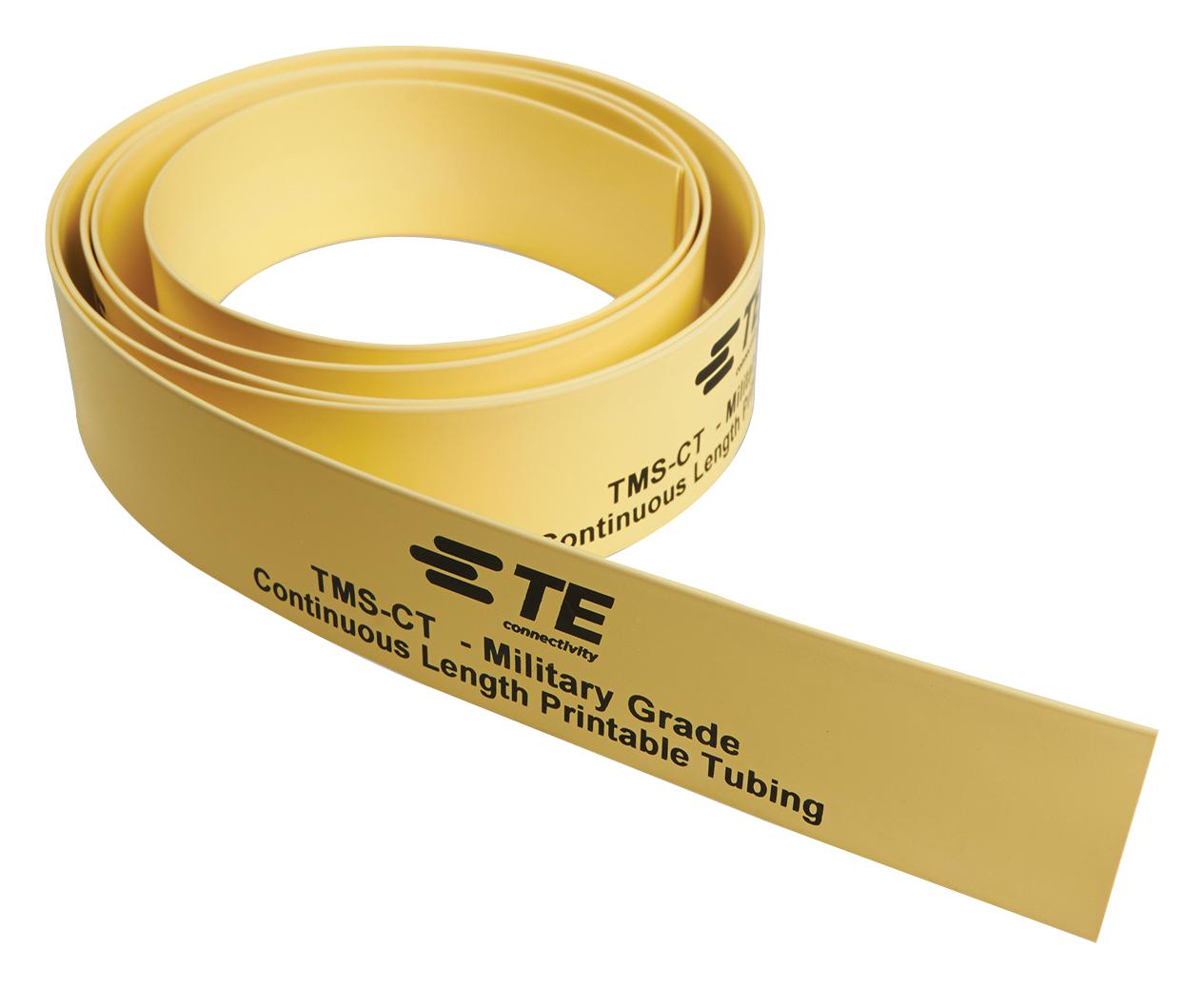

Raychem TE Connectivity TMSCT50M34OUT9 Heat Shrink Identification Sleeve
The TMS-CT series is a military-grade, heat-shrink identification sleeve designed for wire and cable identification. Made from durable, flame-retardant polyolefin, this heat-shrinkable marker offers high performance and versatility suitable for aerospace, military, industrial, transportation, and energy applications. Features include self-extinguishing, non-flame propagating properties, resistance to key military and aerospace fluids as defined by RW-2511, and the capability for laser marking for enhanced performance. It is intended for pre-termination cable identification with a thin wall, lightweight construction, and a fast 3:1 shrink ratio. The open profile facilitates easier application. Each spool is 50 meters (160 feet) long and compatible with outside printers. The operating temperature range spans from -55°C to +135°C.
Raychem TE Connectivity TMSCT50M34OUT9 Heat Shrink Identification Sleeve Specifications:
- Material: Crosslinked polyethylene (polyolefin)
- Shrink Ratio: 3:1 (except 38.1 and 50.8 mm which are 2:1)
- Operating Temperature Range: -55°C to +135°C
- Inner Diameter: 2.4 mm to 50.8 mm (0.094 to 2.00 inches) before recovery
- Maximum After Recovery Diameter: 0.03 to 2.00 inches depending on size
- Length: 50 meters (164 feet) per spool
- Colors: Standard - Yellow, White, other colors available on request
- Compliance: MIL-STD-23053/5 Class 1, RoHS, REACH, UL certified
- Application: Wire and cable identification in aerospace, military, industrial, transport, and energy sectors
- Flame Resistance: Self-extinguishing, non-flame propagating, meets fire safety standards for railway and passenger systems
Buy the TE Connectivity Series TMS-CT Heat Shrink Cable Identification: TMSCT50M34OUT9
Experience superior wire and cable identification with the TE Connectivity Series TMS-CT heat shrink sleeve. Designed for demanding military and aerospace environments, it offers flame retardancy, high durability, and easy application with a fast 3:1 shrink ratio. This versatile, lightweight sleeve features excellent chemical resistance and thermal stability, ensuring long-lasting performance across various industries. Choose the TMS-CT to streamline your cable marking process, ensure safety compliance, and achieve high-quality results in your critical projects. Purchase online today for dependable and efficient wiring solutions.
Order your TE Connectivity Series TMS-CT heat shrink identification sleeve today and enhance your wire and cable management with reliable, military-grade performance.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity TMSCT50M34OUT9?
You can click on the BUY or RFQ button to purchase TMSCT50M34OUT9 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part TMSCT50M34OUT9?
You can download the TMSCT50M34OUT9 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of TMSCT50M34OUT9?
Raychem TE Connectivity
