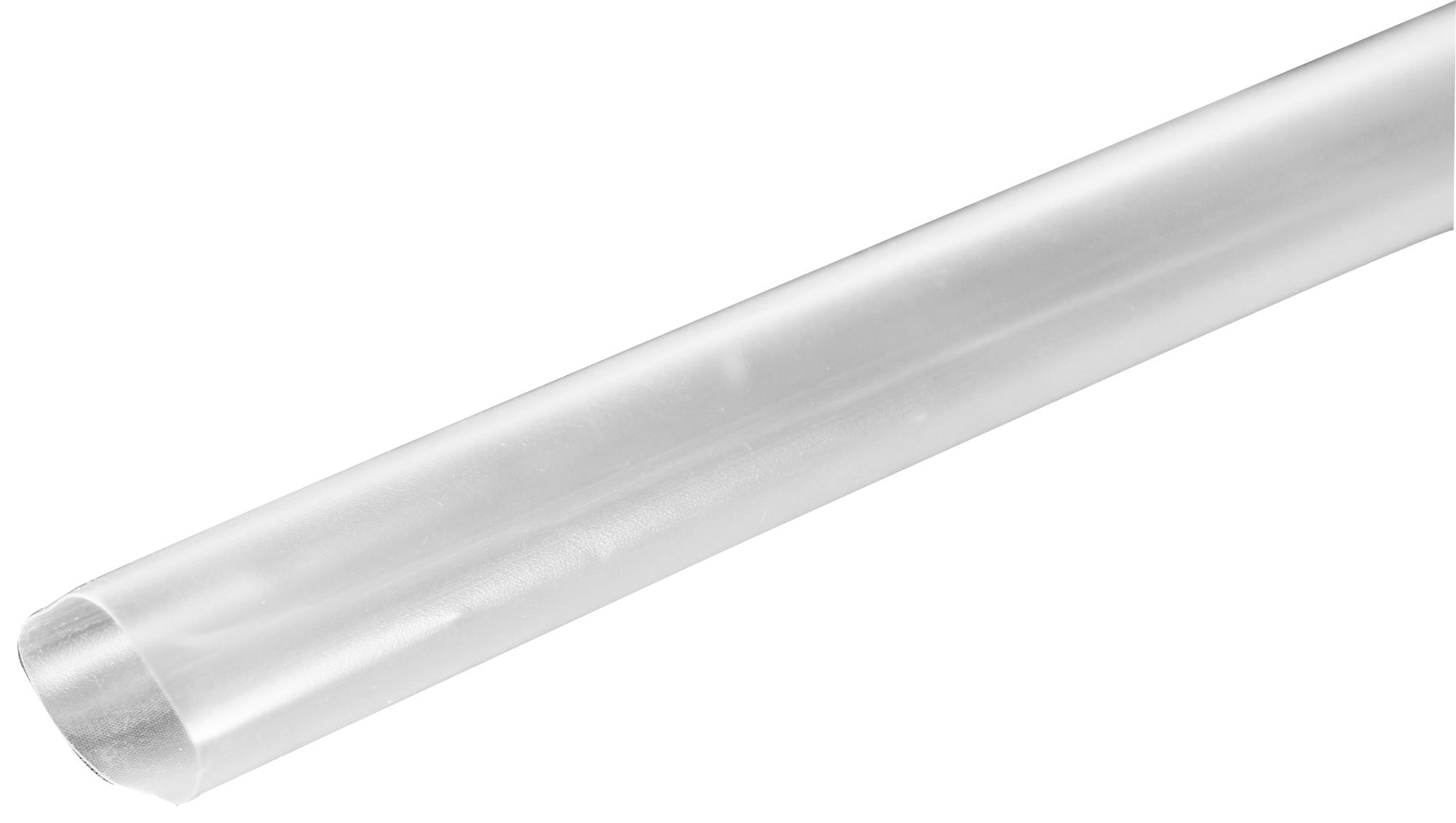

Raychem TE Connectivity RW175E332XSTK Insulation Tube
The RW-175-E series is a tough, semi-rigid, very-thin-wall insulation material made from modified polyvinylidene fluoride. It offers excellent electrical insulation, high flame-resistance meeting IEC 60684-2, UL, and CSA VW-1 standards, and withstands temperatures from -55°C to 175°C. Suitable for aerospace, industrial, and electronic applications, it resists common industrial solvents, fuels, and chemicals. It features improved clarity and resistance to crazing, with full recovery at 175°C. Available in clear and black, with standard 4-foot lengths and optional spool packaging. Ideal for strain relief and delicate electrical connections.
Raychem TE Connectivity RW175E332XSTK Insulation Tube Specifications:
- Material: Modified polyvinylidene fluoride
- Color: Clear, Black
- Length: 4 ft. (standard), optional spool
- Temperature Range: -55°C to 175°C
- Full Recovery Temperature: 175°C
- Flammability: IEC 60684-2, UL VW-1, CSA VW-1
- Tensile Strength: Minimum 35 MPa
- Elongation: Minimum 150%
- Secant Modulus: 690 MPa
- Specific Gravity: 1.8
- Dielectric Strength: 31,500 V/mm (sizes 3/64 to 1/2), 23,600 V/mm (sizes 3/4 to 2)
- Water Absorption: Max 0.5%
- Volume Resistivity: ≥ 1×10^8 Ohm-cm
- Chemical Resistance: Resistant to solvents, fuels, and chemicals
- Certification: IEC 60684-2, UL 224, CSA C22.2 No. 1981-98 VW-1
- Dimensions: Vary from 1.20 mm (3/64 in.) to 50.00 mm (2 in.) in diameter
- Abrasive Resistance: Excellent resistance to abrasion and cut-through
Buy the TE Connectivity Series RW-175-E Insulation Tube: RW175E332XSTK
Order the TE Connectivity RW-175-E series insulation tube online today to benefit from its excellent electrical insulation, high flame-resistance, and chemical resistance. Designed for aerospace, industrial, and electronic applications, this semi-rigid, thin-wall material withstands temperatures up to 175°C and resists fuels, solvents, and chemicals. Available in clear or black, with standard and spool packaging options, it offers superior abrasion resistance and flexibility for delicate electrical connections and strain relief. Ensure reliable insulation and protection by purchasing this high-performance material online now.
Buy TE Connectivity RW-175-E insulation tube now and experience unmatched durability, flame-resistance, and chemical protection for industrial and aerospace applications.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity RW175E332XSTK?
You can click on the BUY or RFQ button to purchase RW175E332XSTK from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part RW175E332XSTK?
You can download the RW175E332XSTK datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of RW175E332XSTK?
Raychem TE Connectivity
