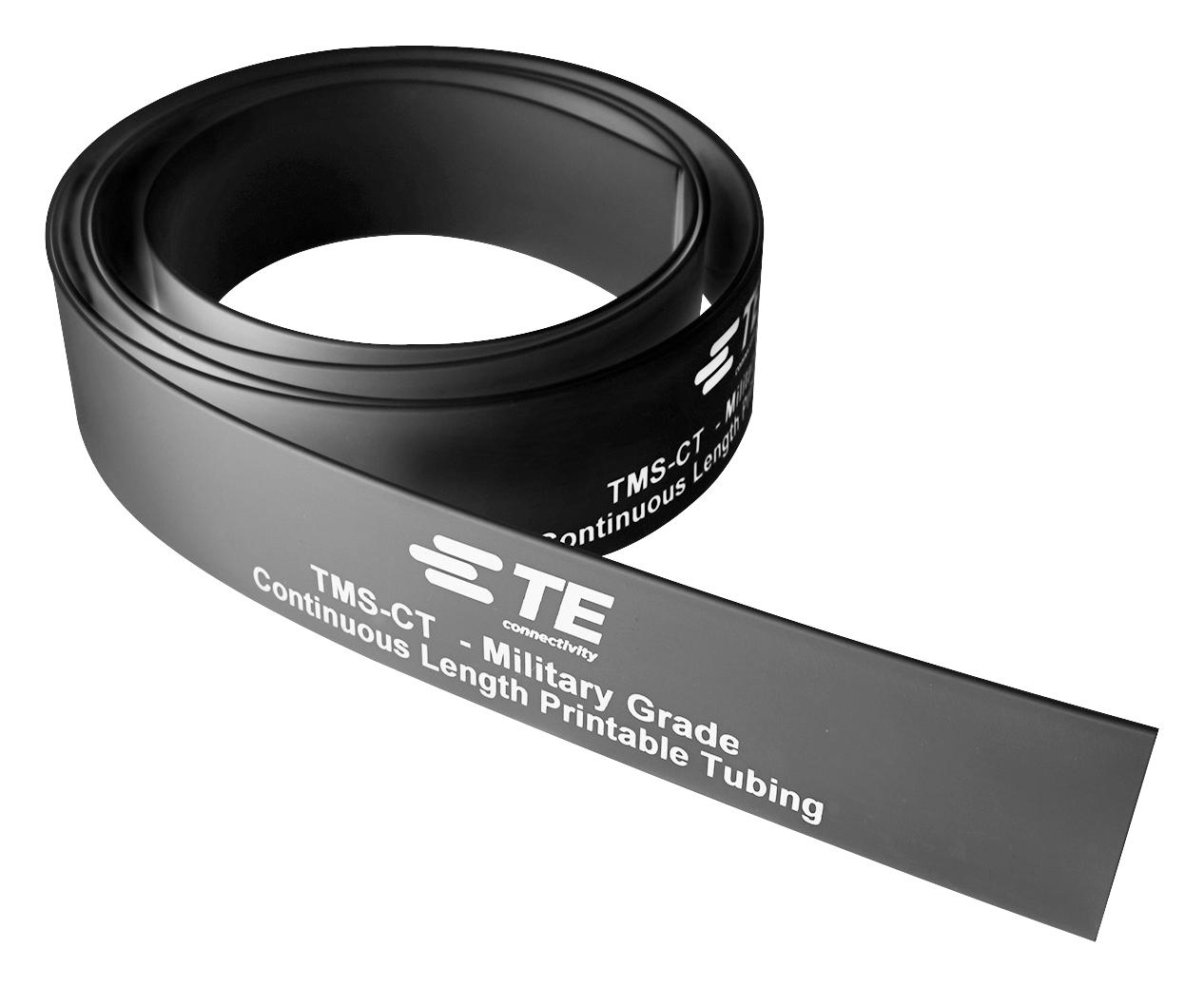

Raychem TE Connectivity TMSCT50M112OUT0 Heat Shrink Identification Sleeve
TMS-CT is a military-grade heat shrink identification system made from durable, flame-retardant, radiation cross-linked polyolefin. It features a thin wall, lightweight design with a fast 3:1 shrink ratio (except certain sizes with 2:1). Suitable for aerospace, military, industrial, transport, and energy applications, it meets standards such as SAE-AMS-DTL-23053/5 and RoHS. The system offers various diameters from 2.4mm to 50.8mm, with print capability for wire and cable identification, enhanced fire resistance, and flexibility for harsh environments.
Raychem TE Connectivity TMSCT50M112OUT0 Heat Shrink Identification Sleeve Specifications:
- Shrink Ratio: 3:1 (except 38.1 and 50.8mm which are 2:1)
- Material: Radiation cross-linked polyolefin
- Flammability: Self-extinguishing, meets UL 94V-0
- Temperature Range: -55°C to 135°C
- Diameters: 2.4mm to 50.8mm (0.094 to 2.00 inches)
- Inside Diameter After Recovery: 0.03 to 25.5 inches
- Length: 50 meters spool, customizable sizes available
- Compliance: SAE-AMS-DTL-23053/5 Class 1, RoHS, Reach, various industry standards
- Fire Resistance: Meets EN45545-2, NFPA 130, DOT requirements
- Print Compatibility: Laser marking for superior identification
- Applicable for aerospace, military, industrial, rail, transport, and energy sectors
- Shelf Life: Refer to TE document 408-121006
- Certification: UL, CSA, MIL, EN45545-2, NFPA standards
Buy the TE Connectivity Series TMSCT Heat Shrink Identification Sleeve: TMSCT50M112OUT0
Enhance your wire and cable management with TE Connectivity's heat shrink identification sleeves designed for harsh environments. These military-grade sleeves offer exceptional flame retardancy, chemical resistance, and precise laser marking capabilities. Available in various diameters up to 50.8mm and lengths of 50 meters, they meet industry standards for aerospace, military, rail, and industrial applications. Easy to install and highly reliable, buy online today to ensure durable, compliant, and clear wire identification for your critical projects.
Buy TE Connectivity TMS-CT heat shrink identification sleeves now and ensure durable, flame-retardant, high-performance cable marking for demanding industrial environments.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity TMSCT50M112OUT0?
You can click on the BUY or RFQ button to purchase TMSCT50M112OUT0 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part TMSCT50M112OUT0?
You can download the TMSCT50M112OUT0 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of TMSCT50M112OUT0?
Raychem TE Connectivity
