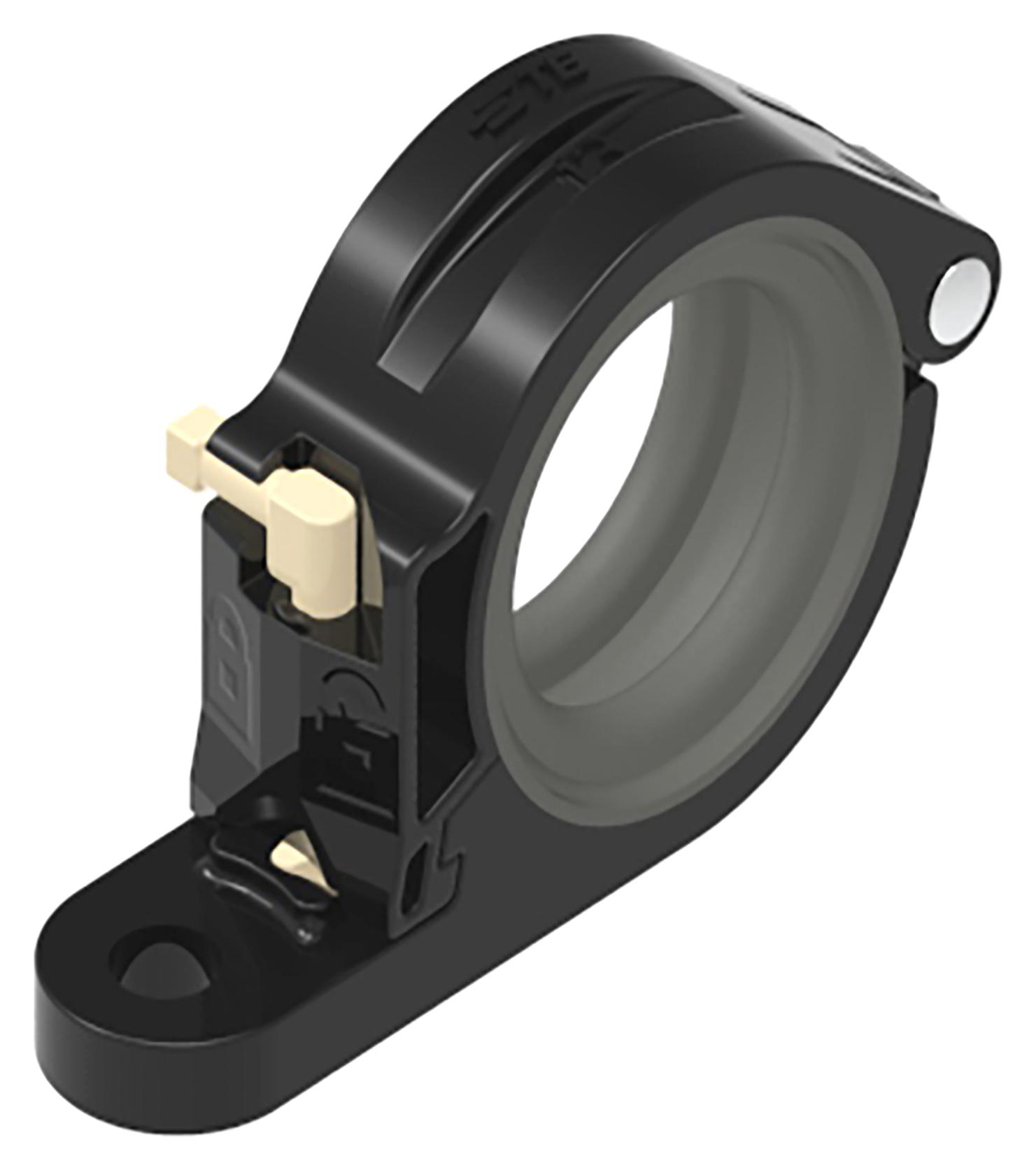

Raychem TE Connectivity THAPDKG03 Cable Management Clamp
The TE Connectivity P-Clamp offers a lightweight, tool-free cable management solution suitable for aerospace, military, and industrial applications. It features a quick installation process, with separate mounting and locking features that facilitate early assembly stages and secure locking in confined spaces. Made with aerospace-grade PEEK and chloroprene cushions, it withstands temperature fluctuations from 5°C to +85°C and resists fluids like fuel and oil. The clamp supports wire bundles from 25" to 1.375" in diameter, provides static load support of 50 lbs., and complies with SAE standards, offering a reliable, versatile component for cable harnesses in demanding environments.
Raychem TE Connectivity THAPDKG03 Cable Management Clamp Specifications:
- Material: Aerospace-grade PEEK and chloroprene cushions
- Operating Temperature: 5°C to +85°C
- Fluid Resistance: Fuel, Deicer, Oil, Cleaning Compound
- Load Bearing: 50 lbs. static in all directions
- Wire Bundle Range: 25" to 1.375" (3.2mm to 35mm)
- Vibration Resistance: 27 grms
- Width: 5" (12.7mm)
- Mounting Hardware: ANSI 10/MS Screw with washer recommended
- Standards: SAE AS23190 Type 3 Class 1
- Mounting and locking features: tool-free, quick install, secure lock
- Application: Aerospace, military, marine vehicles, industrial vehicles, rail, automotive
Buy the TE Connectivity THAPDKG03 – Reliable Cable Management for Industrial Applications
Enhance your projects with the TE Connectivity aerospace-grade P-Clamp. Designed for quick, tool-free installation and reliable locking, it secures cables effectively across aerospace, defense, and industrial sectors. Made with high-quality materials, it withstands temperature variations from 5°C to +85°C and resists oils, fuel, and cleaning compounds. Its wide wire bundle range from 25" to 1.375" makes it versatile for various applications. Lightweight and easy to install, this clamp improves assembly efficiency and reduces foreign object debris risks, ensuring safety and durability.
Order your TE Connectivity Series THAPDKG03 aerospace-grade P-Clamp today and ensure secure, efficient cable management in demanding environments.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity THAPDKG03?
You can click on the BUY or RFQ button to purchase THAPDKG03 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part THAPDKG03?
You can download the THAPDKG03 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of THAPDKG03?
Raychem TE Connectivity
