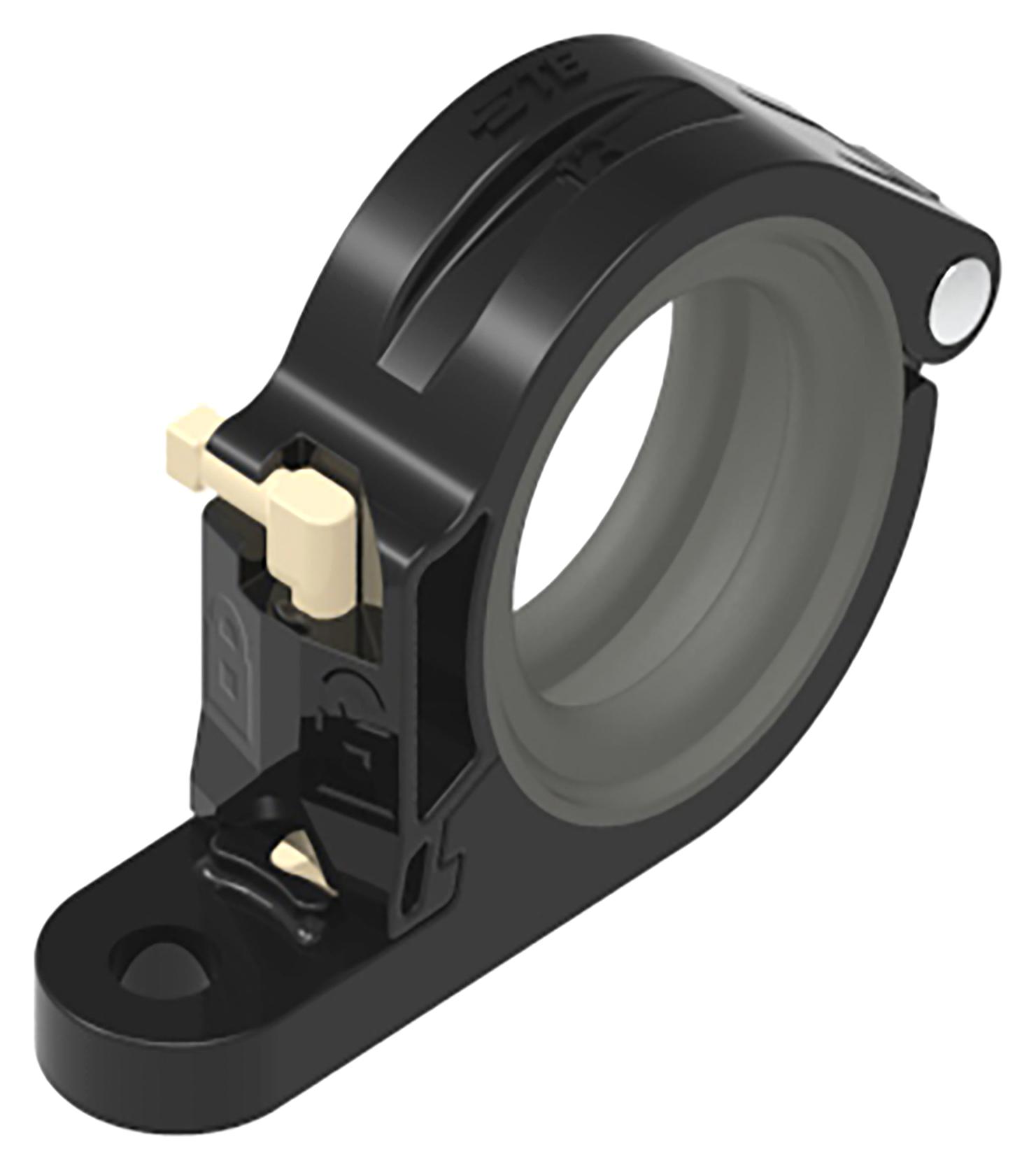

Raychem TE Connectivity THAPDKG07 Cable Clamp
The TE Connectivity P-Clamp provides a lightweight, tool-free solution for mounting cable harnesses in aerospace, military, and industrial applications. Crafted from aerospace-grade PEEK and chloroprene cushion material, it ensures durability, flexibility, and vibration resistance. Its quick-lock design enables early installation in complex assemblies, reducing labor time by up to 25%. Capable of bearing 50 lbs. static load and operating between 5°C to +85°C, it offers reliable cable management while minimizing foreign object debris and cable damage, ideal for harsh environments.
Raychem TE Connectivity THAPDKG07 Cable Clamp Specifications:
- Material: Aerospace-grade PEEK, Chloroprene cushion
- Operating Temperature: 5°C to +85°C
- Load Bearing: 50 lbs static
- Vibration Resistance: 27 grms
- Wire Range: 25" (63.5cm) to 1.375" (34.9mm)
- Width: 5 inches (12.7mm)
- Mounting Hardware: ANSI 10/MS Screw with washer recommended
- Fluid Resistance: Fuel, Deicer, Oil, Cleaning Compound
- Standards: SAE AS23190 Type 3 Class 1
- Performance: Quick install, up to 25% lighter than metal clamps, tool-free locking
- Part No. Range: AS21919WDGO2 to AS21919WDG22
- Vibration: 27 grms
- Cable Diameter Range: varies with part number, covering from 0.457 inches to 1.390 inches
- Durability: Designed for aerospace, defense, and marine environments
Buy the TE Connectivity THAPDKG07 – Reliable Cable Clamp for Industrial Applications
Choose the TE Connectivity Cable Clamp for efficient, tool-free wire and cable mounting in aerospace, defense, and industrial sectors. Designed from aerospace-grade materials, it facilitates quick installation and reduces assembly time by up to 25%. With a lightweight construction and robust performance, it withstands harsh conditions, vibration, and chemical exposure. Its wide compatibility with cable diameters, combined with easy locking features, makes it ideal for complex assemblies in limited spaces. Purchase online today for reliable, durable cable management solution.
Get TE Connectivity THAPDKG07 today—built for precision and long-lasting durability in demanding environments.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity THAPDKG07?
You can click on the BUY or RFQ button to purchase THAPDKG07 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part THAPDKG07?
You can download the THAPDKG07 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of THAPDKG07?
Raychem TE Connectivity
