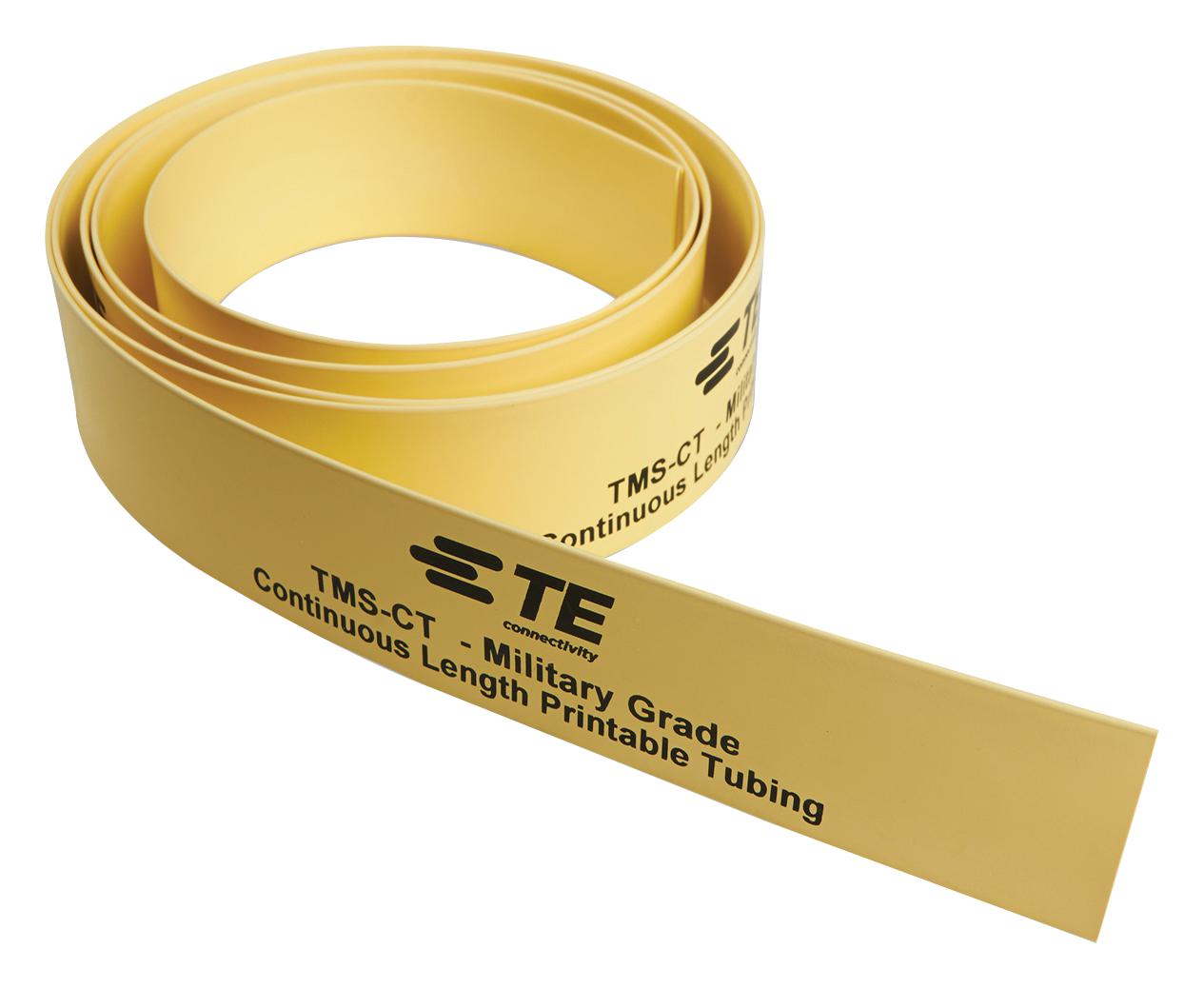

Raychem TE Connectivity TMSCT50M1OUT9 Heat Shrink Identification Sleeve
The TMS-CT series is a military-grade, heat-shrink identification marker sleeving used for the identification of wires and cables. Made from durable, flame-retardant polyolefin, this heat-shrinkable wire marker is designed to meet high-performance requirements. It is suitable for various applications including aerospace, military, industrial, transportation, and energy sectors. Features include self-extinguishing, non-flame propagating properties, resistance to key military and aerospace fluids (as specified by RW-2511), laser-markable for enhanced visibility, and pre-terminated for convenient cable identification. The sleeving has a thin wall, lightweight design, and a fast 3:1 shrink ratio with an open profile for easier application. Each spool is 50 meters (160 feet) long and compatible with outside printers. Operating temperature ranges from -55°C to +135°C.
Raychem TE Connectivity TMSCT50M1OUT9 Heat Shrink Identification Sleeve Specifications:
- Material: Cross-linked polyolefin
- Flammability: Self-extinguishing, non-flame propagating
- Temperature Rating: -55°C to +135°C (−67°F to 275°F)
- Shrink Ratio: 3:1 (except 38.1 and 50.8mm which are 2:1)
- Inside Diameter: 2.4mm to 50.8mm (0.094 to 2 inches) after recovery
- Spool Length: 50 meters (164 feet)
- Color Options: Yellow, White, Brown, Red, Orange, Green, Blue, Violet, Grey, Black
- Compatible with TE printers, using specific thermal transfer ribbons
- Meets SAE-AMS-23053/5 Class 1, UL and CSA certifications
- Suitable for military, aerospace, railway, and fire-resistant applications
Buy the TE Connectivity Series TMS-CT: Military Grade Heat Shrink Identification Sleeve: TMSCT50M1OUT9
Enhance your wiring and cable management with the TE Connectivity TMS-CT Heat Shrink Identification Sleeve, a military-grade, flame-retardant solution. Designed for aerospace, military, industrial, and transportation sectors, this durable polyolefin sleeve features a 3:1 shrink ratio, laser markability, and compliance with industry standards. Each 50-meter spool is easy to use with outside printers and withstands temperatures from -55°C to +135°C. Ensure high performance wire identification with this easy-to-apply, fire-resistant, and versatile heat-shrink sleeve today.
Order your TE Connectivity Series TMS-CT military-grade heat shrink identification sleeve today and ensure reliable wire and cable identification for demanding industrial and aerospace applications.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity TMSCT50M1OUT9?
You can click on the BUY or RFQ button to purchase TMSCT50M1OUT9 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part TMSCT50M1OUT9?
You can download the TMSCT50M1OUT9 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of TMSCT50M1OUT9?
Raychem TE Connectivity
