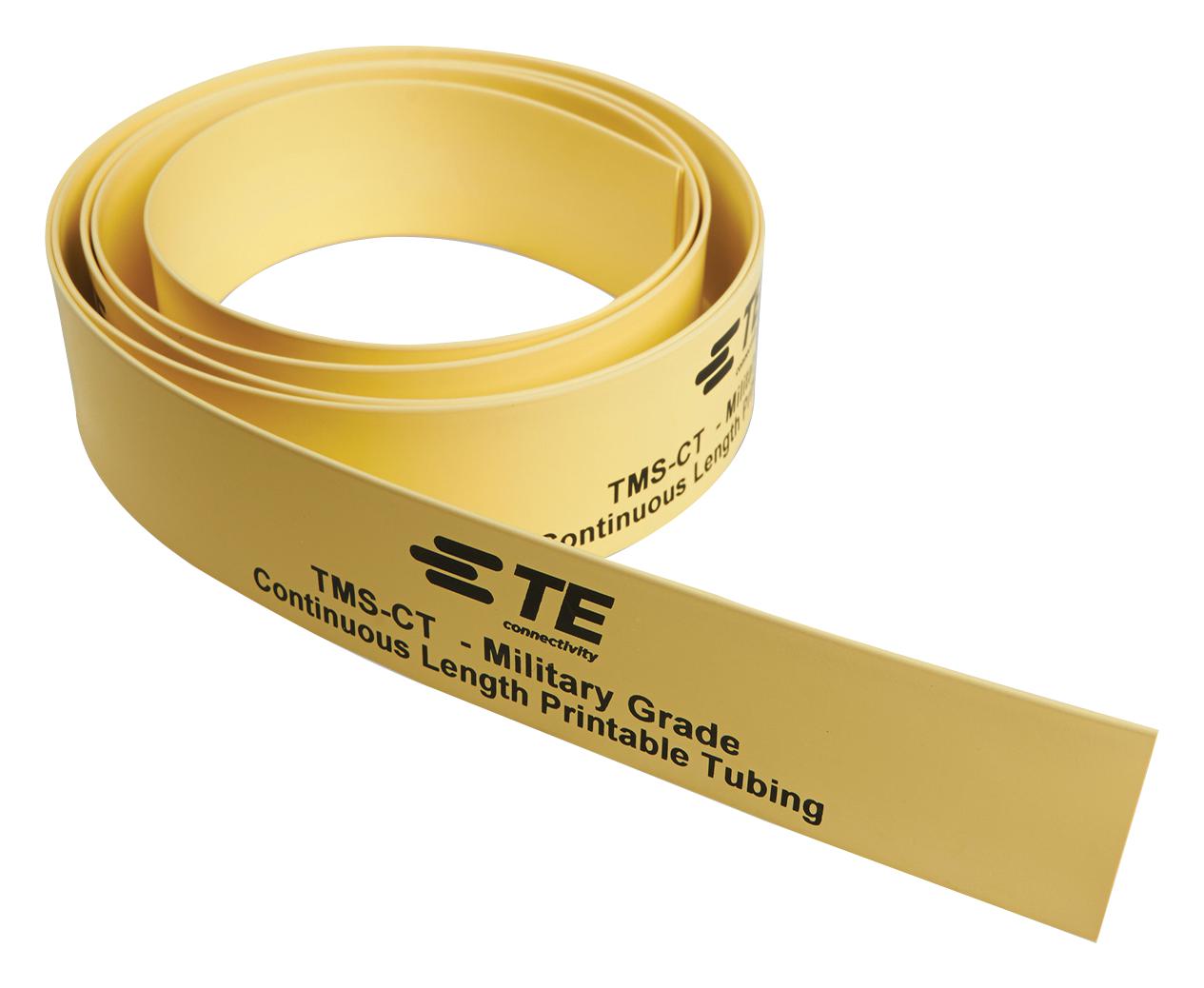

Raychem TE Connectivity TMSCT50M332OUT4 Heat Shrink Identification Sleeve
The TMS-CT series is a military-grade heat-shrink identification marker sleeving designed for the clear identification of wires and cables. Made from durable, flame-retardant polyolefin, it is suitable for demanding applications in aerospace, military, industrial, transportation, and energy sectors. The material is self-extinguishing with non-flame propagating properties and resistant to key military and aerospace fluids as specified by RW-2511. It can be laser marked for enhanced performance. Featuring a pre-termination design, thin walls, lightweight construction, and a 3:1 shrink ratio, the sleeve offers an open profile for easier application. The spool length is 50 meters (160 feet), compatible with outside printer usage, and it operates effectively within a temperature range of -55°C to +135°C.
Raychem TE Connectivity TMSCT50M332OUT4 Heat Shrink Identification Sleeve Specifications:
- Material: Cross linked polyolefin
- Flame retardant: Yes, self-extinguishing
- Temperature Range: -55°C to +135°C
- Shrink Ratio: 3:1 (except 38.1mm and 50.8mm which are 2:1)
- Spool Length: 50 meters (164 feet)
- Inside Diameter After Recovery: from 0.03 inches (0.08 mm) to 1.00 inches (25.4 mm)
- Applications: Aerospace, military, industrial, transportation, energy
- Fluid Resistance: Military and aerospace fluids as per RW-2511
- Standards: SAE-AMS-23053/5 Class 1, UL Certified
- Compliance: RoHS, REACH, NFPA 130, EN45545-2
Buy the TE Connectivity Series TMS-CT Heat Shrink Identification Sleeving: TMSCT50M332OUT4
Purchase the TE Connectivity TMS-CT military-grade heat-shrink identification sleeve online today. Designed for wire and cable identification, it features a durable, flame-retardant polyolefin construction, a 3:1 shrink ratio, and an open profile for easier application. Suitable for aerospace, military, industrial, transport, and energy sectors, it is resistant to key fluids and can be laser marked for superior performance. With a 50-meter spool and wide diameter range, it ensures reliable, long-lasting performance in extreme temperatures from -55°C to +135°C. Order now for quick, secure online delivery and professional wiring solutions.
Get TE Connectivity TMS-CT 50M heat-shrink identification sleeve today—built for durability, ease of use, and demanding aerospace and military applications.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity TMSCT50M332OUT4?
You can click on the BUY or RFQ button to purchase TMSCT50M332OUT4 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part TMSCT50M332OUT4?
You can download the TMSCT50M332OUT4 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of TMSCT50M332OUT4?
Raychem TE Connectivity
