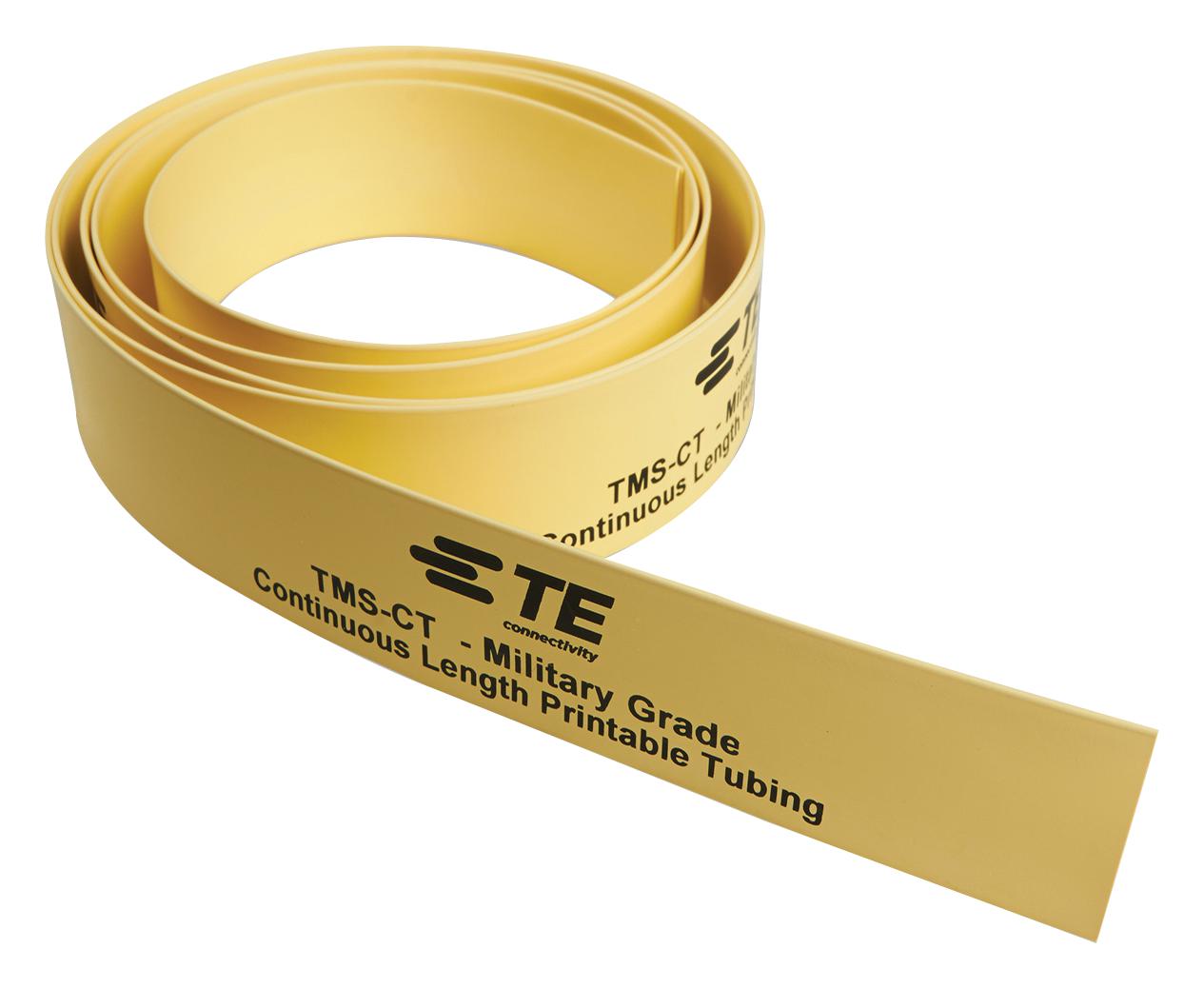

Raychem TE Connectivity TMSCT50M332OUT9 Heat Shrink Identification Sleeving
The TMS-CT series is a military-grade heat shrink identification marker sleeving designed for wire and cable labeling. Made from durable, flame-retardant polyolefin, it offers high performance for demanding applications such as aerospace, military, industrial, transportation, and energy sectors. Features include self-extinguishing properties that do not propagate flames, resistance to key military and aerospace fluids (per RW-2511 standards), and the ability to be laser marked for enhanced readability. It is suitable for pre-termination cable identification, with a thin wall and lightweight construction that provides a fast 3:1 shrink ratio and an open profile for easier handling. Each spool contains 50 meters (160 feet) of sleeving, compatible with outside printer use. The operating temperature range is from -55°C to +135°C.
Raychem TE Connectivity TMSCT50M332OUT9 Heat Shrink Identification Sleeving Specifications:
- Material: Crosslinked polyolefin
- Flammability: Self-extinguishing, non-flame propagating
- Flame Resistance: Meets RW-2511 standards
- Temperature Range: -55°C to +135°C (-67°F to 275°F)
- Shrink Ratio: 3:1 (except 38.1mm and 50.8mm which are 2:1)
- Sleeve Diameter: Ranges from 2.4mm (0.094 inches) to 50.8mm (2 inches)
- Length per spool: 50 meters (164 feet)
- Open profile for easy use and application
- Resistance: Aerospace and military fluids, UL certified material
- Application: Wire and cable identification in harsh environments
Buy the Buy TE Connectivity TMS-CT Part Number TMSCT50M332OUT9 Online
Order TE Connectivity TMS-CT heat shrink identification sleeving online today to ensure reliable wire and cable labeling in aerospace, military, and industrial applications. Made from flame-retardant, radiation cross-linked polyolefin, it offers a lightweight, fast recovery 3:1 shrink ratio and an open profile for easy handling. Compatible with outside printers, each 50-meter spool supports various wire diameters from 2.4mm to 50.8mm. With excellent resistance to military and aerospace fluids, it operates efficiently from -55°C to +135°C, providing superior durability and performance for critical projects.
Get TE Connectivity TMS-CT Part Number TMSCT50M332OUT9 today—built for precision and long-lasting durability in demanding industrial and military environments.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity TMSCT50M332OUT9?
You can click on the BUY or RFQ button to purchase TMSCT50M332OUT9 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part TMSCT50M332OUT9?
You can download the TMSCT50M332OUT9 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of TMSCT50M332OUT9?
Raychem TE Connectivity
