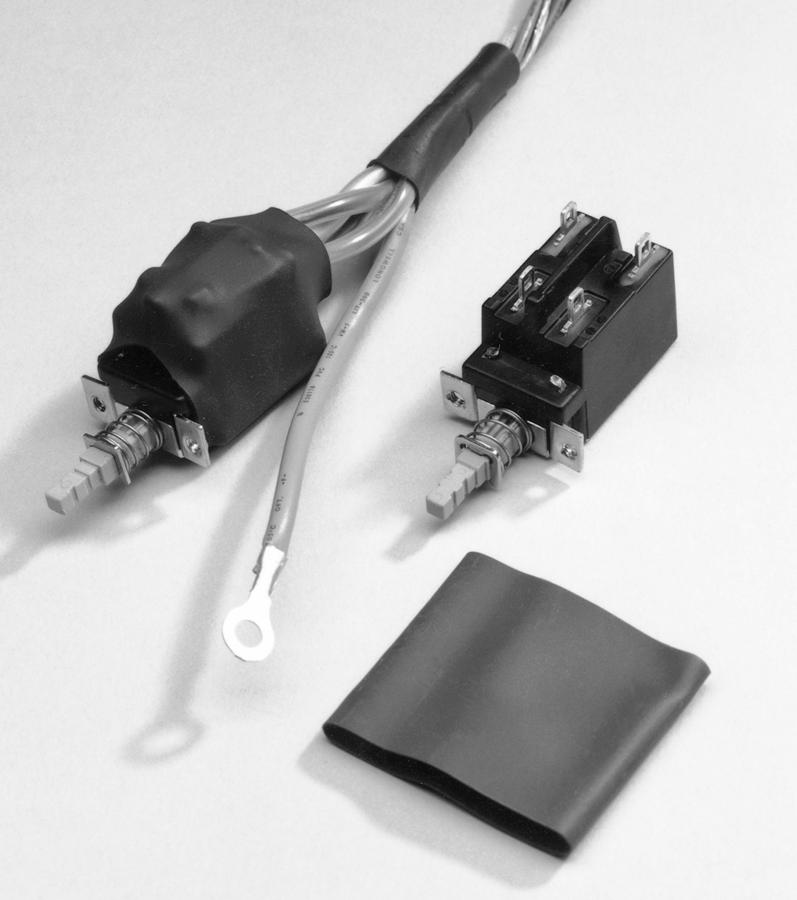

Raychem TE Connectivity VERSAFITMINISPL116BK Heat Shrink Tubing
The VERSAFIT-MINI-SPL-1/16-BK is a black, flexible, flame-retardant heat shrink tubing made from irradiated modified polyolefin with a 2:1 shrink ratio. It provides electrical insulation and strain relief for in-line components, electrical connections, wire terminations, and splices. Suitable for bundling wires in lightweight harnesses, it also serves to identify or color-code wires, cables, terminals, and electronic components. The tubing has a minimum full recovery temperature of 90°C, a minimum shrink temperature of 70°C, and operates within a temperature range of -55°C to 135°C. It finds applications in power management, automotive, safety, medical, defense, military, aerospace, and industrial sectors. Market demand has extended lead times, and delivery dates may vary. This product is exempt from discounts.
Raychem TE Connectivity VERSAFITMINISPL116BK Heat Shrink Tubing Specifications:
- Material: Irradiated modified polyolefin
- Color: Black
- Shrink Ratio: 2:1
- Minimum full recovery temperature: 90°C
- Minimum shrink temperature: 70°C
- Operating Temperature Range: -55°C to 135°C
- Flammability Rating: UL 224/CSA VW-1
- Application: Electrical insulation, strain relief, wire bundling, identification
- Suitable for: Automotive, aerospace, industrial, defense, medical sectors
- Dimensions: 1/16 inch (1.6 mm) diameter, 6-inch (15.2 cm) length
Buy the Raychem VERSAFITMINISPL116BK – Reliable Heat Shrink Tubing for Industrial Applications
Purchase the Raychem VERSAFIT-MINI-SPL-1/16-BK heat shrink tubing online today to ensure high-quality electrical insulation and strain relief for your wiring projects. Crafted from irradiated polyolefin with a 2:1 shrink ratio, this tubing offers excellent flexibility and flame retardancy, operating in a temperature range from -55°C to 135°C. Perfect for bundling wires in light-duty harnesses or color coding cables, it ensures durability and safety in power management, automotive, aerospace, and industrial sectors. Order now for quick delivery and reliable performance.
Buy Raychem VERSAFITMINISPL116BK now and experience unmatched electrical insulation, flexibility, and reliable wire protection in industrial environments.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity VERSAFITMINISPL116BK?
You can click on the BUY or RFQ button to purchase VERSAFITMINISPL116BK from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part VERSAFITMINISPL116BK?
You can download the VERSAFITMINISPL116BK datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of VERSAFITMINISPL116BK?
Raychem TE Connectivity
