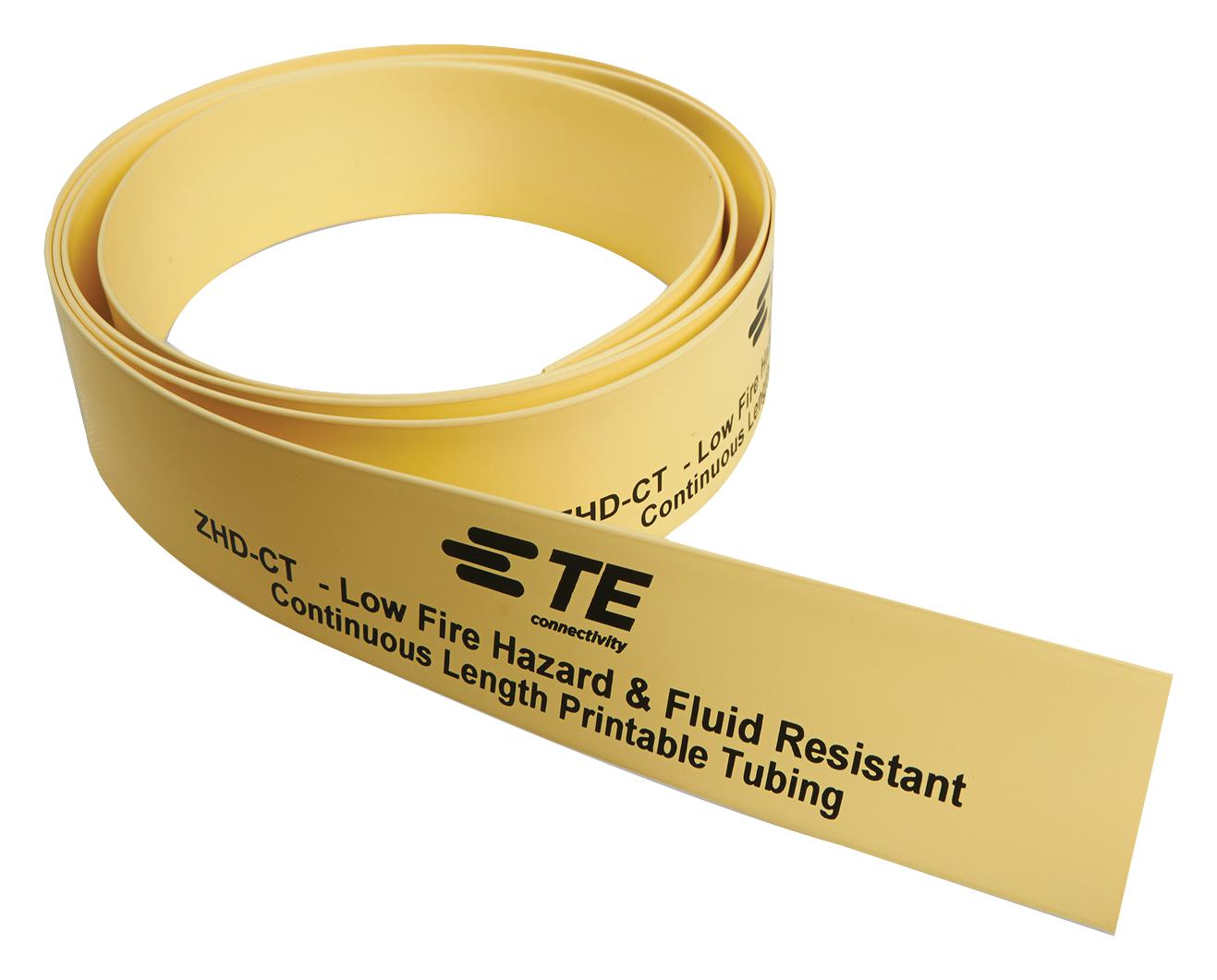

Raychem TE Connectivity ZHDCT50M127OUT9 Heat Shrink Wire Marker
The ZHD-CT series is a high-performance heat shrinkable wire marker designed for demanding installation environments. It is a blend between D-CT and HX-CT series, offering zero halogen features, diesel resistance, and compliance with safety standards. The marker provides zero halogen emissions, low toxic fumes, and produces low smoke, making it suitable for safety-critical applications. It is self-extinguishing and non-flame propagating. Additionally, it resists key rail and industrial fluids as per TE specification RW-2536. With a 2:1 shrink ratio, it comes on a 50-meter spool and operates within a temperature range of -55°C to +125°C.
Raychem TE Connectivity ZHDCT50M127OUT9 Heat Shrink Wire Marker Specifications:
- Shrink ratio 2:1
- Diameter range: 2.4mm to 38.1mm
- Operating Temperature Range: -55°C to +125°C
- Material: Radiation cross-linked, flame retardant
- Compliance: EN45545-2, BS 6853, NFPA 130, Federal Railroad FRA
- Flammability: Self-extinguishing, low smoke, low toxic fumes
- Resistant to: rail and industrial fluids (TE RW-2536)
- Color options: Yellow, White, Brown, Red, Orange, Green, Blue, Violet, Grey, Black
- Spool Length: 50 meters
- Expanded Inside Diameter: 48 mm for standard size
- Certifications: EN45545-2 Fire classification 1 & 2, UL compliant for flame retardancy
Buy the Buy TE Connectivity ZHD-CT Part Number ZHDCT50M127OUT9 Online
Discover the TE Connectivity ZHD-CT heat shrink wire marker, engineered for safety-critical applications with zero halogen and diesel resistance. Available in a variety of colors, it ensures secure wire identification even in harsh environments. Ideal for rail and industrial installations, it withstands extreme temperatures from -55°C to 125°C and complies with fire safety standards EN45545-2 and NFPA 130. Easily ordered online, it provides a durable, flame-retardant solution for your wiring needs, ensuring project safety and compliance effortlessly.
Order your TE Connectivity ZHD-CT diesel resistant heat shrink wire marker today and enhance your wiring safety with this reliable, high-performance identification solution.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity ZHDCT50M127OUT9?
You can click on the BUY or RFQ button to purchase ZHDCT50M127OUT9 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part ZHDCT50M127OUT9?
You can download the ZHDCT50M127OUT9 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of ZHDCT50M127OUT9?
Raychem TE Connectivity
