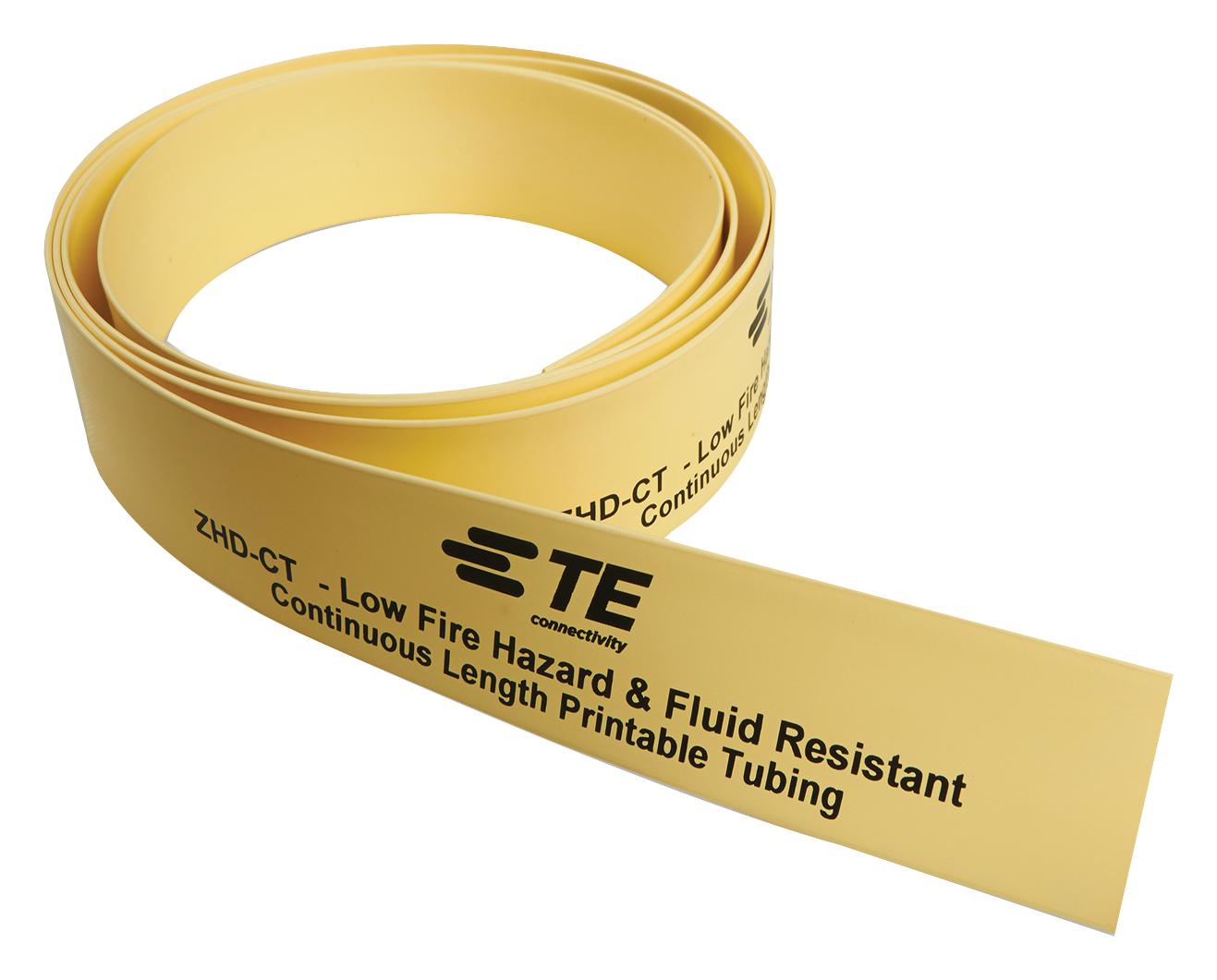

Raychem TE Connectivity ZHDCT50M24OUT4 Heat Shrink Marker
The ZHD-CT series is a heat-shrinkable wire marker designed for high-performance installations where safety and reliability are paramount. It is a blend of the D-CT and HX-CT series, offering zero halogen properties and diesel resistance. The marker emits low toxic fumes and smoke, is self-extinguishing, resistant to industrial fluids as specified by TE standard RW-2536, with a 2:1 shrink ratio. Available as a 50-meter spool, it operates within -55°C to +125°C, suitable for rail and industrial cable identification demanding fire safety and chemical resistance.
Raychem TE Connectivity ZHDCT50M24OUT4 Heat Shrink Marker Specifications:
- Shrink ratio: 2:1
- Sleeve diameters from 2.4mm to 38.1mm
- Spool length: 50 meters (164 feet)
- Expanded inside diameter options: 2.4mm, 3.2mm, 4.8mm, 6.4mm, 9.5mm, 12.7mm, 19.0mm, 25.4mm, 38.1mm
- Material: Radiation cross-linked, Zero Halogen, Diesel resistant
- Operating Temperature Range: -55°C to +125°C
- Flammability: Self-extinguishing, low toxic fumes and smoke, compliant with RoHS II, REACH
- Resistance: Resistant to rail and industrial fluids, meets TE standard RW-2536
- Fire Classification: EN45545-2 Fire Hazard Classification 1 and 2
- Applicable standards: BS 6853, EN 50343, NFPA 130, Federal Railroad FRA Appendix B
- Print Performance: Resistance to solvents, adherence compliant with SAE AS 5942
Buy the TE Series ZHD-CT Zero Halogen Diesel Resistant Heat Shrink Identification System: ZHDCT50M24OUT4
Order TE Series ZHD-CT Heat Shrink Marker Sleeving online today and ensure your wiring systems meet the highest safety standards. This robust, zero halogen, diesel-resistant identification sleeve is ideal for railway vehicles and industrial environments, providing excellent chemical and fire performance. With easy installation, a 2:1 shrink ratio, and availability in multiple diameters and colors, it guarantees a secure fit and long-lasting identification. Buy now to benefit from fast delivery and the assurance of a trusted brand known for quality and compliance with international safety standards.
Buy TE Series ZHD-CT ZHDCT50M24OUT4 now and experience unmatched reliability and performance in railway and industrial cable identification with safety your project demands.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity ZHDCT50M24OUT4?
You can click on the BUY or RFQ button to purchase ZHDCT50M24OUT4 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part ZHDCT50M24OUT4?
You can download the ZHDCT50M24OUT4 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of ZHDCT50M24OUT4?
Raychem TE Connectivity
