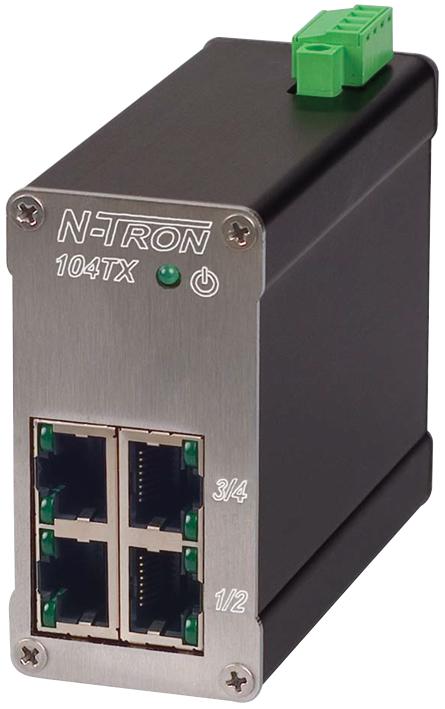

Red Lion Controls 104TX Industrial Ethernet Switch
The 104TX Industrial Ethernet Switch is a compact, unmanaged four-port device designed for demanding industrial environments. It features full IEEE 802.3 compliance, extended temperature range from -40°C to 80°C, rugged metal DIN-Rail enclosure, dual power inputs, and supports full/half duplex operation with up to 800 Mb/s throughput. Ideal for data acquisition, control, and Ethernet I/O applications, its plug & play design and auto-negotiation capabilities simplify network upgrades and improve reliability in harsh settings, ensuring high performance and minimal downtime.
Red Lion Controls 104TX Industrial Ethernet Switch Specifications:
- Case Dimensions: Height 2.9 inches, Width 1.5 inches, Depth 3.6 inches
- Weight: 0.6 lbs
- DIN-Rail Width: 35mm
- Input Voltage: 10-30 VDC
- Steady Input Current: 215mA @24V
- Inrush Current: 7.8Amp/0.7ms@24V
- Operating Temperature: -40°C to 80°C
- Storage Temperature: -40°C to 85°C
- Operating Humidity: 10% to 95%
- Operating Altitude: 0 to 10,000 ft
- MTBF: >2 Million hours
- Network Media: >Cat3 Cable for 10BaseT, >Cat5 Cable for 100BaseTX
- Connectors: Four RJ-45 TX ports
- Power Inputs: Dual redundant power (10-30 VDC)
- Surge Protection and ESD Diodes on RJ-45 ports
- Supports 2000 MAC addresses, full wire speed, auto sensing speed, and flow control
- Compliance: FCC, CE, UL, EN50155, DNV, RoHS
- Mounting: DIN-Rail mount, optional metal din rail mount
Buy the Buy N-Tron Industrial Ethernet Switch Part Number 104TX Online
Order the durable and high-performance N-Tron industrial Ethernet switch 104TX online today. Designed for demanding environments with rugged metal enclosure, dual power inputs, and extended temperature range, it ensures reliable network connectivity. Its plug & play setup with auto-negotiation and auto-sensing features simplifies upgrades and minimizes downtime, making it ideal for data acquisition, control systems, and Ethernet I/O applications. Enhance your industrial network efficiency with this high-quality unmanaged switch, built for maximum uptime and durability in tough conditions.
Buy N-Tron 104TX industrial Ethernet switch now and experience unparalleled reliability, high throughput, and robust performance in harsh environments.
Frequently Asked Questions
Where can I buy Red Lion Controls 104TX?
You can click on the BUY or RFQ button to purchase 104TX from an authorized Red Lion Controls distributor.
How do I troubleshoot issues or seek technical support for part 104TX?
You can download the 104TX datasheet or visit the Red Lion Controls website for support.
Who is the manufacturer of 104TX?
Red Lion Controls
