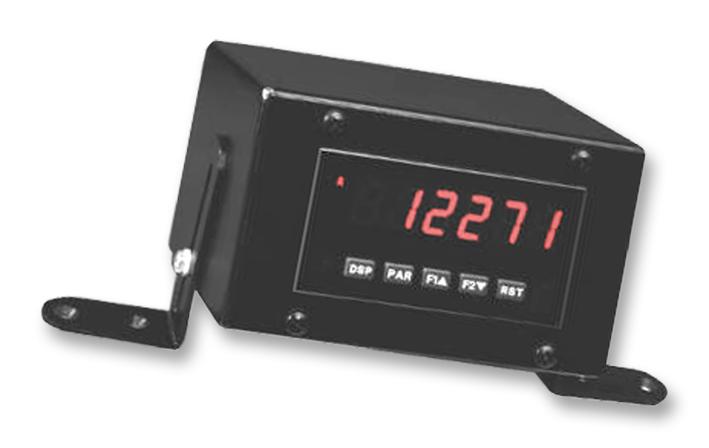

Red Lion Controls ENC5A000 Industrial Enclosure
These NEMA 4X/IP65 waterproof enclosures are crafted from rugged polycarbonate and steel, suitable for wash-down environments. The plastic enclosure encloses one or two 1/8 DIN meters, with easy wiring access via drilled holes for conduit fittings. The steel variant offers welded seams, durable polyurethane coating, and versatile mounting options for machines or desktops. Both enclosures feature sealing integrity for moisture protection, with removable panels and rubber pads for surface protection. Ideal for industrial applications requiring water-resistant instrument housing with reliable sealing and mounting flexibility.
Red Lion Controls ENC5A000 Industrial Enclosure Specifications:
- Material: Polycarbonate (plastic) or formed steel with welded seams
- Rating: NEMA 4X/IP65 wash-down protected
- Mounting: Free-standing or surface-mounted with brackets
- Dimensions: Plastic enclosure 7.0 x 5.5 x 3.25 inches (177.8 x 139.7 x 82.6 mm); Steel enclosure 7.0 x 5.5 x 3.25 inches (177.8 x 139.7 x 82.6 mm)
- Wiring: Drilled rear or side for conduit fittings
- Sealing: Gasket compression of approximately 75-80% for waterproof integrity
- Finish: Polyurethane coating (steel), clear polycarbonate (plastic)
- Accessory features: Rubber pads for surface protection, mounting brackets included
- Installation: Panel or surface mounting with adjustable tilt options
Buy the Red Lion ENC5A – Reliable Enclosures for Industrial Applications
Secure your sensitive instrumentation with Red Lion waterproof enclosures designed for harsh environments. The durable polycarbonate and steel constructions offer NEMA 4X/IP65 protection, sealing against water and dust. Easy wiring through drilled openings, removable access panels, and included mounting brackets make installation straightforward. Whether free-standing or surface-mounted, these enclosures provide reliable, sealed housing for one or two 1/8 DIN meters. Choose quality and durability for your industrial control and measurement needs—order online today for quick delivery and peace of mind.
Buy Red Lion ENC5A waterproof enclosures now and ensure your instruments are protected in wash-down environments with easy installation and versatile mounting.
