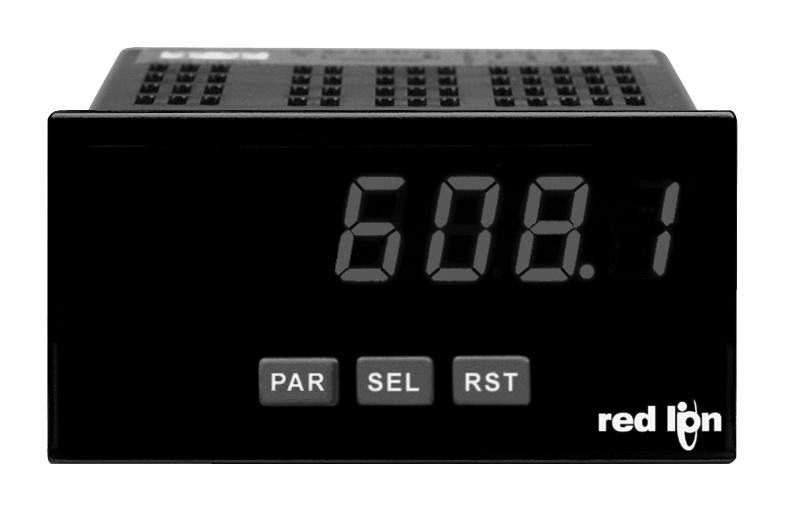

Red Lion Controls PAXLCR00 Dual Counter Rate Meter
The PAX Lite Dual Counter and Rate Meter combines versatile counting capabilities with dynamic rate monitoring in a robust, sealed enclosure. Its 6-digit, 0.56-inch red LED display offers adjustable brightness for clear visibility. The device supports eight counting modes, including bi-directional, quadrature, and anti-coincidence, with independent scaling and decimal point configuration for each counter. Programmable scaling allows for precise measurement conversions. Users can toggle between count and rate displays manually or automatically. Features include built-in batch counting, programmable user inputs, dual 5A relays, universal power, and a NEMA 4X/IP65 sealed front, suited for industrial environments.
Red Lion Controls PAXLCR00 Dual Counter Rate Meter Specifications:
- Display: 6 digit, 0.56" (14.2 mm) high Red LED with adjustable intensity
- Power Requirements: AC 50-250 VAC 50/60Hz 12 VA; DC 21.6-250 VDC 6 W; +24 VDC output available
- Counter A Range: -99999 to 999999; Counter B Range: 0 to 999999; Overflow indication when exceeded
- Maximum Count Rates: 50% duty cycle, mode dependent; Rate display max 25 KHz, min 0.01 Hz; Accuracy ±0.01%
- Inputs: Two signal inputs accepting logic or magnetic pickup signals, with DIP switch selectable active high/low and filtering; User input programmable with debounce response time ~10-50 ms
- Outputs: Two Form C relays, 5A resistive, 1400 Vrms isolation, response time <4 ms, rated for NEMA 4X/IP65 installation
- Environmental Conditions: Operating 0-50°C, humidity 0-85%, vibration IEC 68-2-6, shock IEC 68-2-27, altitude up to 2000m
- Physical: Enclosure NEMA 4X/IP65 sealed front, panel mounting with gasket, dimension approx. 4.10" H x 2.50" W, weight 10.4 oz
- Certifications: UL Listed, CE approved, RoHS compliant, EN 61010-1 safety standard
Buy the Red Lion Series PAXLCR Dual Counter and Rate Meter: PAXLCR00
Purchase the Red Lion PAXLCR00 dual counter and rate meter online today to enhance your industrial measurement systems. Its rugged NEMA 4X/IP65 sealed front ensures durability in harsh environments, while the programmable features allow precise control over counting and rate measurement. Easily set scaling factors, toggle between count and rate displays, and utilize dual relays for automation. Perfect for applications requiring accurate counting, rate monitoring, and reliable operation under demanding industrial conditions. Experience seamless integration and superior performance now.
Buy Red Lion PAXLCR00 dual counter and rate meter now and experience unmatched reliability and industrial performance with sealed, durable design.
Frequently Asked Questions
Where can I buy Red Lion Controls PAXLCR00?
You can click on the BUY or RFQ button to purchase PAXLCR00 from an authorized Red Lion Controls distributor.
How do I troubleshoot issues or seek technical support for part PAXLCR00?
You can download the PAXLCR00 datasheet or visit the Red Lion Controls website for support.
Who is the manufacturer of PAXLCR00?
Red Lion Controls
