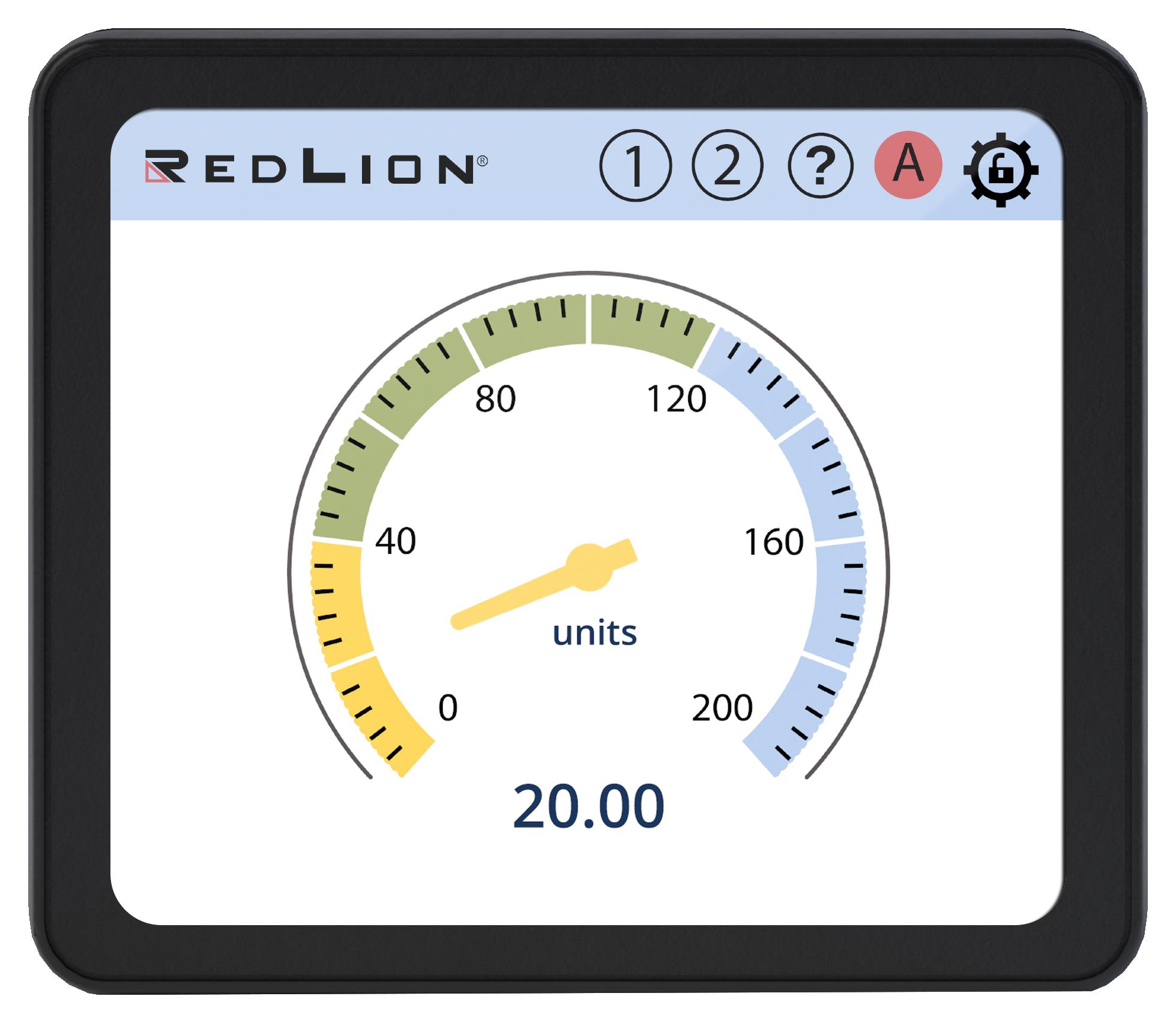

Red Lion Controls PM500D0301600F00 Digital Input Panel Meter
The PM-50 is a 4.3-inch color touchscreen graphical panel meter designed for industrial automation, featuring modular construction, multiple communication options including Wi-Fi, RS-485/MODBUS, Ethernet, and RS-232. It supports high-resolution displays, real-time data access, and alarm notifications. The device offers simple programming via a start-up wizard, web server, and programming app, with on-board dual SSR outputs, and environmental ratings suitable for indoor use. Its robust design includes various input types, memory options, and multiple expansion modules for flexible integration into control systems. Ideal for increasing operator productivity and improving process monitoring in industrial environments.
Red Lion Controls PM500D0301600F00 Digital Input Panel Meter Specifications:
- Display: 4.3" color TFT, 480 x 272 pixels, 262,144 colors, 420 cd/m² brightness, LED backlight, 30,000 HR lifetime
- Power Supply: 10-30 VDC, Max Power: 46W (PM-50 only), 12W with modules, +24 VDC, +5% @ 50 mA
- Inputs: Configurable switch contacts, TTL, magnetic pickups, all standard RLC sensors, with debounce and filtering
- Memory: Nonvolatile, microSD slot supports up to 32 GB
- Communication: RS485 Modbus RTU/ASCII, Ethernet TCP/IP, Wi-Fi 802.11 b/g/n, 20.5 dBm power output
- Outputs: ON-Board dual SSR outputs, SINK or SOURCE modes, max 100 mA, 0.3 V ON voltage, 30 V max voltage
- Operational Environment: -10°C to 55°C, 0-85% RH, vibration 2 g, shock 20 g, altitude up to 2000 m, indoor use only
- Certifications: CE, RoHS, IEC 61010-1, UL, FCC, EN 61326-1, CISPR 11 Class A
- Physical Dimensions: 4.3" display - 92 mm x 160 mm, 3.5" display - 82 mm x 125 mm, panel installation with gasket and locks
- Construction: NEMA 4X/IP65 face, IP20 rear, flame resistant, metal bezel, modular plug-in modules available
Buy the Red Lion Series PM-50 4 Digital Input Graphical Panel Meter: PM500D0301600F00
Improve your process control with the Red Lion Series PM-50 4-inch graphical panel meter. Featuring high-resolution color display, Wi-Fi, Modbus, Ethernet, and flexible expansion modules, this device simplifies installation and enhances operational efficiency. Its intuitive programming, alarm notifications, and robust environmental ratings make it ideal for demanding industrial environments. With optional accessories like relay modules and communication interfaces, the PM-50 provides a comprehensive solution for real-time data access, control, and monitoring. Purchase online now for fast, reliable delivery and upgrade your automation system today.
Order your Red Lion Series PM-50 4 Digital Input Graphical Panel Meter today and enhance your industrial automation projects with reliable, real-time data monitoring.
