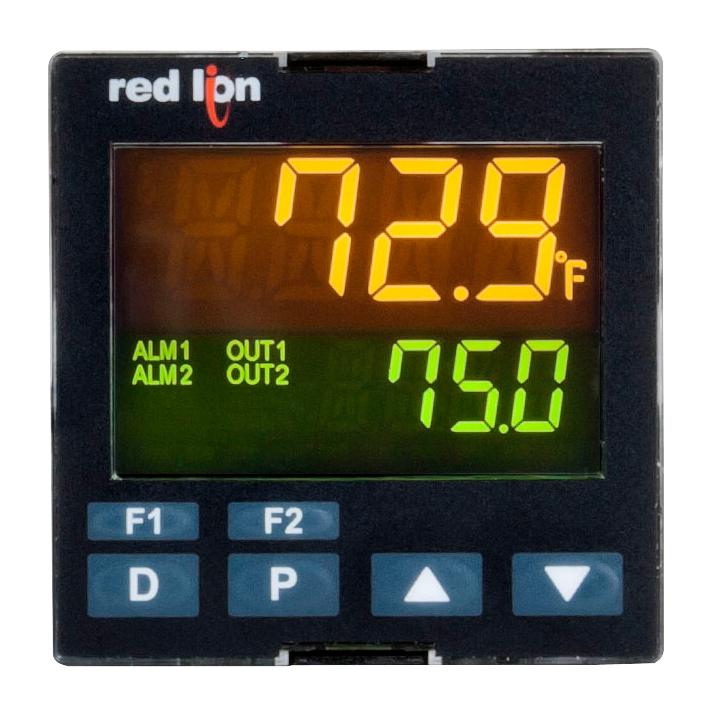

Red Lion Controls PXU41C20 Process Controller
The PXU series PID controllers by Red Lion Automation are versatile industrial process controllers designed for precision temperature and process management. Featuring universal inputs such as thermocouple, RTD, 0-10 VDC, and 4-20 mA, these controllers support full PID control, auto-tuning, ramp/soak capabilities, and multiple configuration options including second analog input/output and current transducer input. They come in various DIN sizes with digital displays, easy setup via crimson software, and are UL listed with IP65 ingress protection, suitable for factory automation, food, beverage, and manufacturing applications.
Red Lion Controls PXU41C20 Process Controller Specifications:
- Display: LCD transmissive with backlighting, 4-digit per line, available in 1/16, 1/8, and 1/4 DIN models
- Input Capabilities: Thermocouple, RTD, 0-10 VDC, 4-20 mA, 0-50 mA, with optional current transducer
- Control: Full PID with auto-tuning and ramp/soak functionality
- Outputs: Configurable alarms, dual relay alarms, analog outputs, and control outputs, including relay, logic/SSR, 4-20 mA, and 0-10 VDC
- Power: 100-240 VAC or 24 VDC
- Dimensions: 1/16 DIN: 1.89 x 0.47 inches; 1/8 DIN: 4.77 x 0.47 inches; 1/4 DIN: 3.58 x 1.89 inches
- Environmental: Operating temperature 0-50°C, storage -20-65°C, humidity up to 80%, vibration resistance, and IP65 face rating
- Certifications: CE, UL Listed, EN 61326-1
Buy the Buy Red Lion PID Controller Part Number PXU41C20 Online
Order the Red Lion PXU41C20 PID controller online today for reliable and accurate temperature and process management. Built with versatile universal inputs including thermocouple, RTD, and voltage/current signals, it offers full PID control with auto-tuning, ramp/soak features, and customizable outputs. The easy-to-use front panel and Crimson software streamline programming and setup. With IP65 protection, multiple DIN sizes, and UL listing, this controller is ideal for food, beverage, manufacturing, and factory automation, ensuring durability and performance in demanding industrial environments.
Get Red Lion PXU41C20 today—designed for precise process control in industrial automation.
Frequently Asked Questions
Where can I buy Red Lion Controls PXU41C20?
You can click on the BUY or RFQ button to purchase PXU41C20 from an authorized Red Lion Controls distributor.
How do I troubleshoot issues or seek technical support for part PXU41C20?
You can download the PXU41C20 datasheet or visit the Red Lion Controls website for support.
Who is the manufacturer of PXU41C20?
Red Lion Controls
