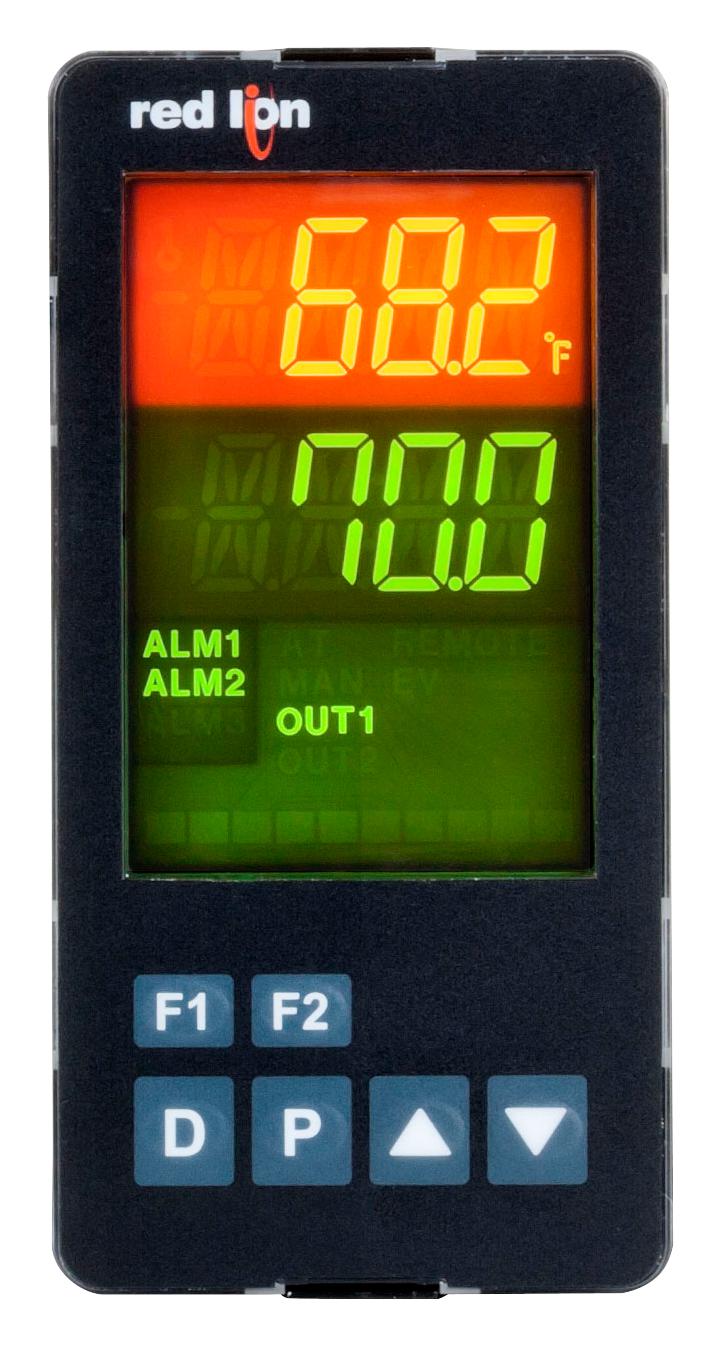

Red Lion Controls PXU41B30 Industrial Process Controller
The PXU Series PID controllers from Red Lion are versatile industrial process controllers designed for precise temperature and process management. Available in multiple DIN sizes, they feature full PID control, on-demand auto-tuning, ramp/soak capability, and dual control outputs, making them suitable for applications like food & beverage, factory automation, and manufacturing. These controllers support various input types such as thermocouples, RTDs, and analog signals, with optional current transducer inputs. They are UL listed, CE approved, IP65 rated, and easy to program via front panel or Crimson software, offering reliable and flexible process control solutions.
Red Lion Controls PXU41B30 Industrial Process Controller Specifications:
- Display: LCD negative transmissive with backlighting, 4 digits per line, digit sizes vary by DIN model (0.43" to 0.87").
- Inputs: Thermocouple, RTD, 0-10 VDC, 4-20 mA, 0-50 mV (optional Current Transducer input).
- Outputs: Two control outputs (analog or relay), two relay alarms, digital Pot functionality.
- Power: 100-240 VAC or 24 VDC, UL listed, CE approved.
- Environmental: Operating temperature 0 to 50°C, storage -20 to 65°C, humidity up to 80% (non-condensing).
- Protection: IP65 faceplate, vibration resistance 10-85 Hz, shock resistance 30 g.
- Dimensions: 1/16 DIN (48.0 mm), 1/8 DIN (95.8 mm), 1/4 DIN (144.0 mm); weight varies from 7.8 oz to 11 oz depending on model.
- Communication: Optional RS-485 serial interface, EN 61326-1 immunity, CISPR 11 Class A emission compliance.
- Certifications: UL Listed, CE approved, EN 61010-1 safety standard.
Buy the Buy Red Lion PID Controller Part Number PXU41B30 Online
Enhance your industrial automation with the Red Lion PID Controller, offering full PID control, auto-tuning, ramp/soak capabilities, and multiple input options. This reliable controller supports various DIN sizes and provides easy setup through front panel or Crimson software. Its environmental protection rating of IP65, UL listing, and CE approval ensure durability and safety. Perfect for food & beverage, manufacturing, and factory automation, it delivers precise process management and improved efficiency for demanding industrial applications.
Buy Red Lion PXU41B30 now and experience unmatched reliability and precise process control with full PID features and easy programming options.
Frequently Asked Questions
Where can I buy Red Lion Controls PXU41B30?
You can click on the BUY or RFQ button to purchase PXU41B30 from an authorized Red Lion Controls distributor.
How do I troubleshoot issues or seek technical support for part PXU41B30?
You can download the PXU41B30 datasheet or visit the Red Lion Controls website for support.
Who is the manufacturer of PXU41B30?
Red Lion Controls
