SCHROFF 24560083 EuropacPRO Subrack
SCHROFF EuropacPRO subracks provide a versatile platform for electronic component mounting and system integration. These subracks are designed to meet industry standards like IEC 60297-3-100 and IEEE 1101.1, ensuring dimensional accuracy and reliability. They are suitable for CompactPCI and VME64x applications and can be customized with accessories like guide rails, ESD clips, and EMC shielding. The kits offer pre-fitted components and are available in various heights, widths, and depths to accommodate diverse system requirements. ServicePLUS configuration options allow for individual component selection and assembly, providing tailored solutions for specific industrial and rugged applications.
SCHROFF 24560083 EuropacPRO Subrack Specifications:
- Standards/Certifications: IEC 60297-3-100, -101, - 102, -103, -104, -105, IEEE 1101.1, IEEE 1101.10/11, IP 20 (IEC 60529), IEC 61587-3, BN 411002, BN 411003, NF F 60002, NF F 67012, IEC 61587-2, EN 50155, KTA 1401
- Shock and Vibration Resistance: Up to 5 g
- Available Data: 3D PDF or CAD 3D data
- Kit Configuration: Kits or individual configuration available
- Application Suitability: Suitable for CompactPCI and VME64x insertion and extractor handles
- EMC Shielding: EMC shielding can be retrofitted
- Max Installed Load: Up to 7.5 kg, 11 kg, or 15 kg
- Delivery Includes: Side panels, front and rear horizontal rails, threaded inserts, insulation strip, fixing material kit, user manual

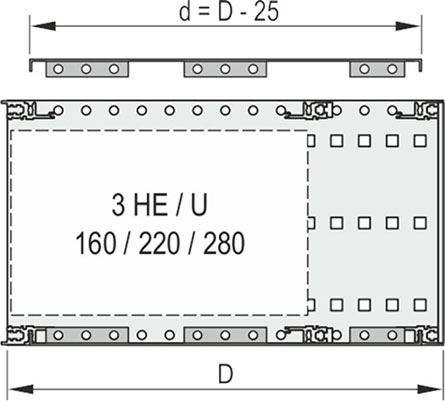

- Depth D: 175 mm, 235 mm, 295 mm
- Insertion Depth D1: 175 mm, 175/235 mm, 175/235/295 mm
- Board Depth D2: D1 - 15 mm
Buy the 24560083 SCHROFF EuropacPRO Subrack | myMectronic
Purchase the SCHROFF EuropacPRO subrack securely online and benefit from our reliable shipping and excellent customer support.
Buy Now
Frequently Asked Questions
Where can I buy SCHROFF 24560083?
You can click on the BUY or RFQ button to purchase 24560083 from an authorized SCHROFF distributor.
How do I troubleshoot issues or seek technical support for part 24560083?
You can download the 24560083 datasheet or visit the SCHROFF website for support.
Who is the manufacturer of 24560083?
SCHROFF
