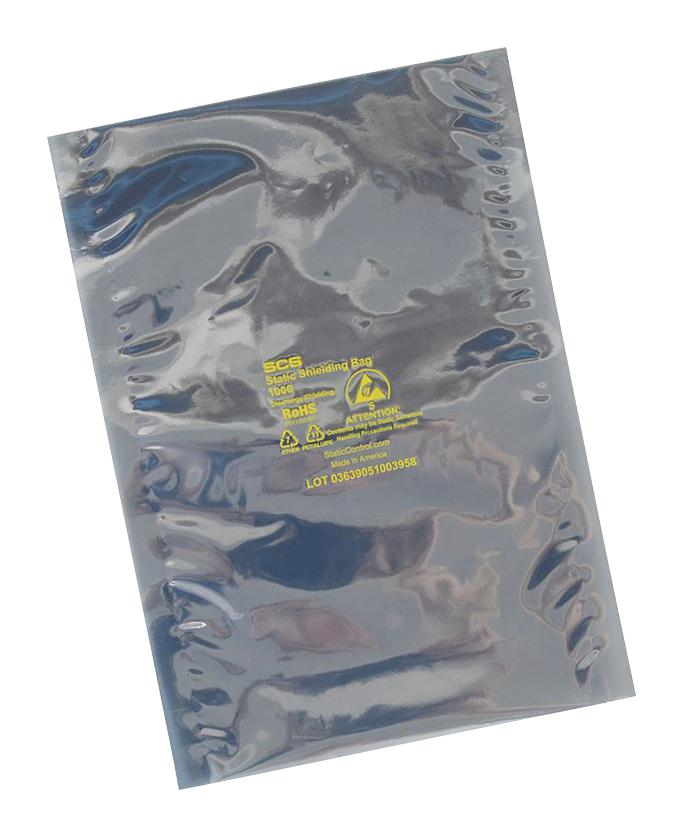

SCS 1001212 Static Shielding Bag
SCS 1000 Series Static Shielding Bags are designed to protect sensitive electronic components from electrostatic discharge (ESD) damage. These bags, manufactured from a robust polyester, metal, and polyethylene laminate, provide a multi-layered defense against static electricity. The metal layer offers discharge shielding, while the polyester and polyethylene layers contribute to the bag's structural integrity and heat sealability. The exterior surface is static dissipative, allowing electrostatic charges to be safely removed when grounded. These bags are ideal for protecting circuit boards, semiconductors, and other ESD-sensitive components during manufacturing, storage, and shipping. They meet ANSI/ESD S20.20, ANSI/ESD S541, and ANSI/ESD S11.4 Level 3 standards, ensuring reliable ESD protection.
SCS 1001212 Static Shielding Bag Specifications:
- Tensile Strength: 4600 PSI, 32 MPa (ASTM D882)
- Puncture Resistance: 12 lbs, 53 N (MIL-STD-3010C Method 2065)
- Seal Strength: 11 lbs, 48 N (ASTM D882)
- Thickness: 2.8 mils, 0.071 mm +/-10% (MIL-STD-3010C Method 1003)
- Marking Adhesion: Pass (IPC-TM-650 2.4.1)
- Transparency: 40% (Tobias)
- ESD Shielding: <10 nJ (ANSI/ESD STM11.31)
- Surface Resistance (Exterior): < 1 x 10 [4] to < 1 x 10 [11] ohms (ANSI/ESD STM11.11)
- Surface Resistance (Interior): < 1 x 10 [11] ohms (ANSI/ESD STM11.11)
- Static Decay: < 2 seconds (ETS 406D)
- Silicone: Not Detected (FTIR)
- Heat Sealing Temperature: 300ºF – 375°F, 149ºC – 190°C
- Heat Sealing Time: 0.5 – 3.5 seconds
- Heat Sealing Pressure: 30 – 70 PSI, 206 – 482 KPa
- Material Composition: Polyester, Metal, Polyethylene Laminate
- Bag Markings: Standard bag markings shown
- Seal Width: 3/8" +/- 1/8"
