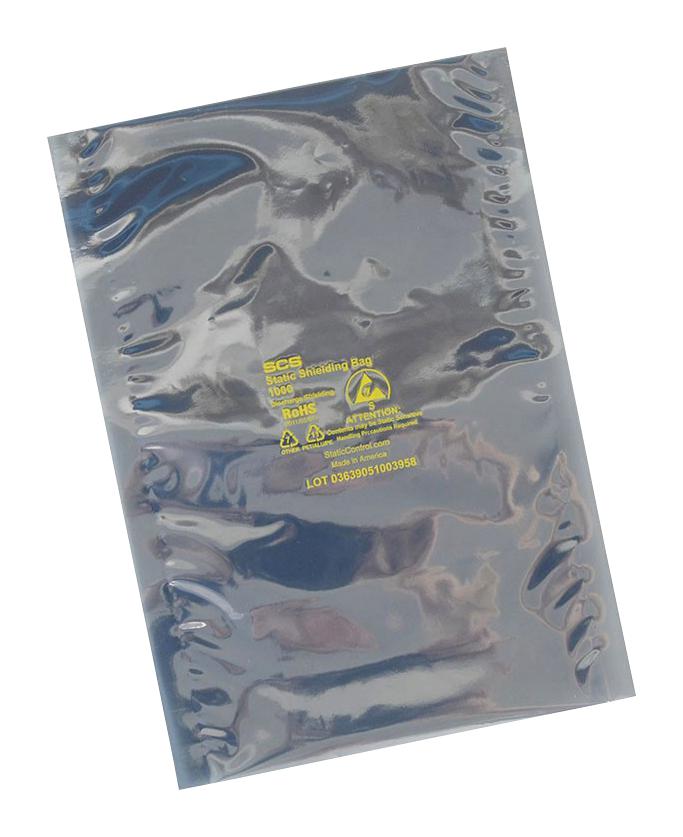

SCS 10068 Static Shielding Bag
SCS 10068 Static Shielding Bags are engineered to create a static-safe environment for sensitive electronic components. Constructed from a robust polyester, metal, and polyethylene laminate, these bags offer excellent discharge shielding and a static dissipative exterior. They are ideal for protecting devices during storage, shipping, and handling, ensuring the integrity of electronic components. The bags are heat sealable, facilitating secure closures, and are marked with an ESD protective symbol and lot code for traceability. Meeting ANSI/ESD standards, these bags are a reliable solution for ESD control in various industrial applications.
SCS 10068 Static Shielding Bag Specifications:
- Tensile Strength: 4600 PSI, 32 MPa ASTM D882
- Puncture Resistance: 12 lbs, 53 N MIL-STD-3010C Method 2065
- Seal Strength: 11 lbs, 48 N ASTM D882
- Thickness: 2.8 mils, 0.071 mm +/-10% MIL-STD-3010C Method 1003
- Marking Adhesion: Pass IPC-TM-650 2.4.1
- Transparency: 40% Tobias
- ESD Shielding: <10 nJ ANSI/ESD STM11.31
- Surface Resistance (Exterior): < 1 x 10 [4] to < 1 x 10 [11] ohms ANSI/ESD STM11.11
- Surface Resistance (Interior): < 1 x 10 [11] ohms ANSI/ESD STM11.11
- Static Decay: < 2 seconds ETS 406D
- Silicone: Not Detected FTIR
- Heat Sealing Temperature: 300ºF – 375°F, 149ºC – 190°C
- Heat Sealing Time: 0.5 – 3.5 seconds
- Heat Sealing Pressure: 30 – 70 PSI, 206 – 482 KPa
- Meets Standards: ANSI/ESD S20.20, Packaging standard ANSI/ESD S541, and Static Control Bag ANSI/ESD S11.4 Level 3
