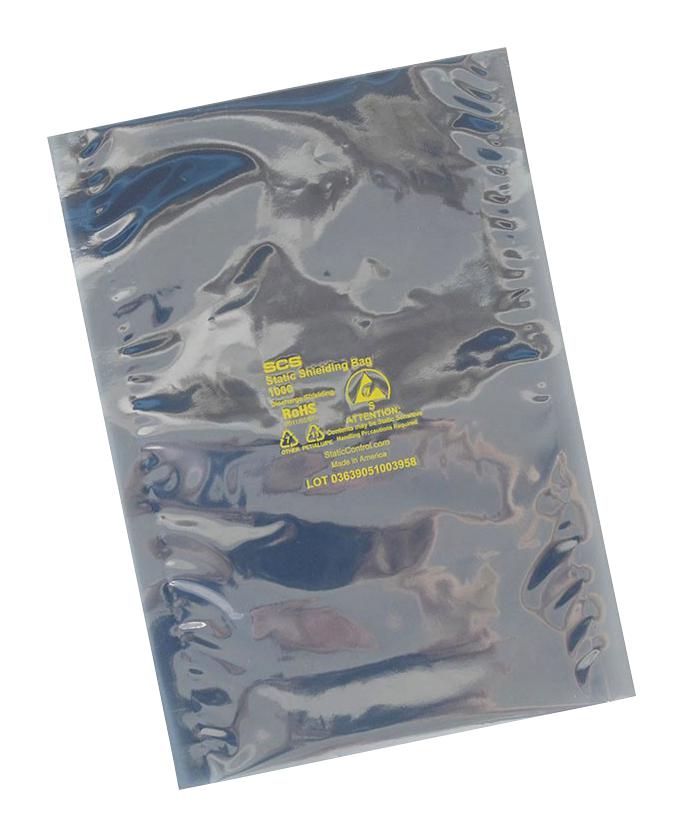

SCS 1001216 Static Shielding Bag
SCS 1000 Series Static Shielding Bags are designed to protect sensitive electronic components from electrostatic discharge (ESD) damage. These bags, manufactured from a robust polyester, metal, and polyethylene laminate, provide a multi-layered defense against static electricity. The metal layer offers discharge shielding, while the polyester and polyethylene layers contribute to the bag's structural integrity and static dissipative properties. The exterior surface allows for electrostatic charges to be safely removed when grounded. These bags are ideal for protecting circuit boards, semiconductors, and other ESD-sensitive components during manufacturing, storage, and shipping. They are commonly used in electronics manufacturing, aerospace, and medical device industries. The bags are heat sealable for secure closure and feature standard markings for traceability.
SCS 1001216 Static Shielding Bag Specifications:
- Tensile Strength: 4600 PSI, 32 MPa
- Puncture Resistance: 12 lbs, 53 N
- Seal Strength: 11 lbs, 48 N
- Thickness: 2.8 mils, 0.071 mm +/-10%
- Marking Adhesion: Pass IPC-TM-650 2.4.1
- Transparency: 40%
- ESD Shielding: <10 nJ
- Surface Resistance (Exterior): < 1 x 10 [4] to < 1 x 10 [11] ohms
- Surface Resistance (Interior): < 1 x 10 [11] ohms
- Static Decay: < 2 seconds
- Heat Sealing Temperature: 300ºF – 375°F, 149ºC – 190°C
- Heat Sealing Time: 0.5 – 3.5 seconds
- Heat Sealing Pressure: 30 – 70 PSI, 206 – 482 KPa
- Material Composition: Polyester, metal, polyethylene laminate
- Free Of: Amines, silicones and heavy metals
- Meets Standards: ANSI/ESD S20.20, Packaging standard ANSI/ESD S541, and Static Control Bag ANSI/ESD S11.4 Level 3
