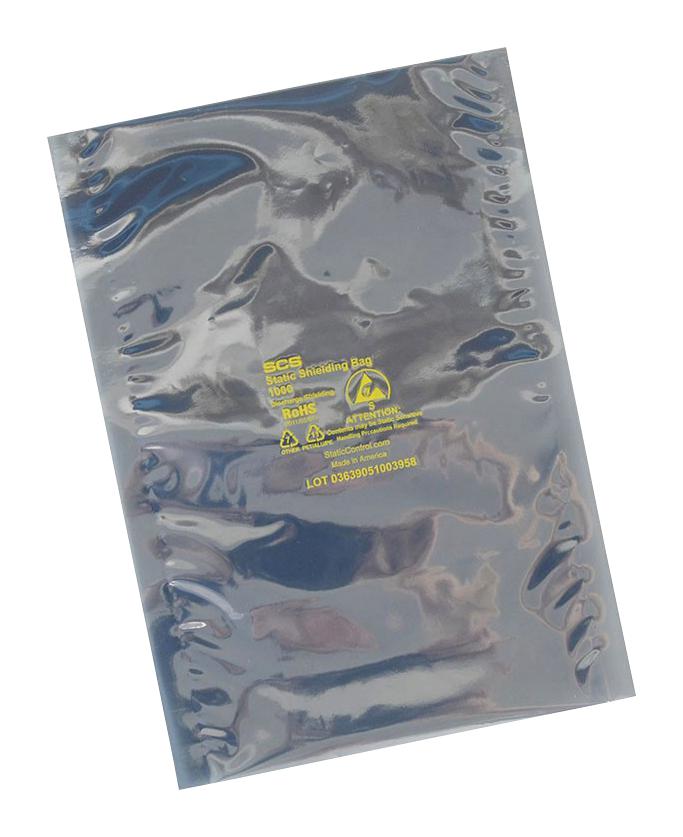

SCS 100810 Static Shielding Bag
SCS 100810 Static Shielding Bags are designed to provide a static-safe environment for electronic devices. Constructed from a polyester, metal, and polyethylene laminate, these bags offer excellent discharge shielding and static dissipation properties. The exterior surface is static dissipative, allowing electrostatic charges to be removed when grounded. These bags are heat sealable, printed with an ESD protective symbol and lot code for traceability, and meet ANSI/ESD S20.20, ANSI/ESD S541, and ANSI/ESD S11.4 Level 3 standards. They are free of amines, silicones, and heavy metals and are intended for commercial use only.
SCS 100810 Static Shielding Bag Specifications:
- Tensile Strength: 4600 PSI, 32 MPa ASTM D882
- Puncture Resistance: 12 lbs, 53 N MIL-STD-3010C Method 2065
- Seal Strength: 11 lbs, 48 N ASTM D882
- Thickness: 2.8 mils, 0.071 mm +/-10% MIL-STD-3010C Method 1003
- Marking Adhesion: Pass IPC-TM-650 2.4.1
- Transparency: 40% Tobias
- ESD Shielding: <10 nJ ANSI/ESD STM11.31
- Surface Resistance (Exterior): < 1 x 10 [4] to < 1 x 10 [11] ohms ANSI/ESD STM11.11
- Surface Resistance (Interior): < 1 x 10 [11] ohms ANSI/ESD STM11.11
- Static Decay: < 2 seconds ETS 406D
- Silicone: Not Detected FTIR
- Heat Sealing Temperature: 300ºF – 375°F, 149ºC – 190°C
- Heat Sealing Time: 0.5 – 3.5 seconds
- Heat Sealing Pressure: 30 – 70 PSI, 206 – 482 KPa
