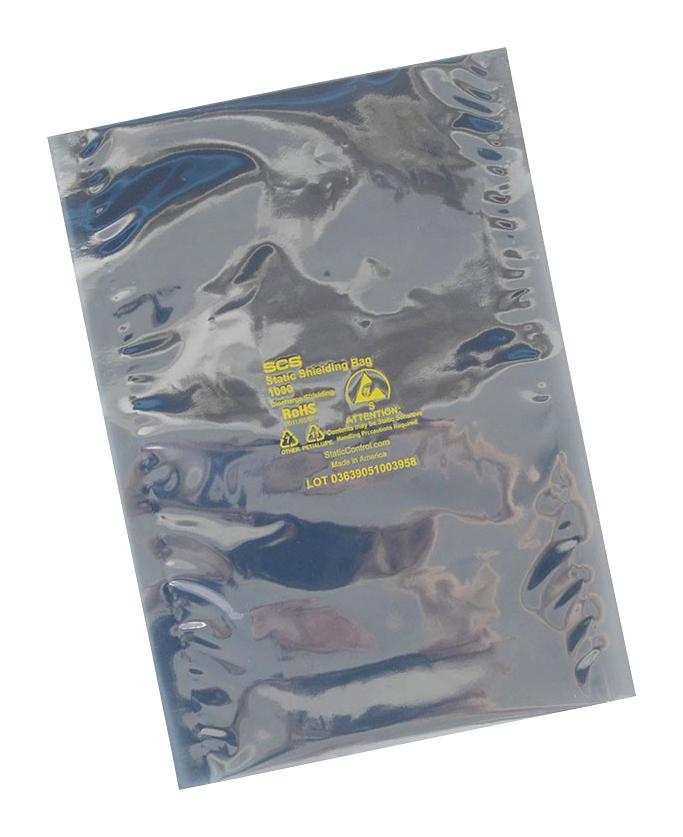

SCS 1001824 Static Shielding Bag
The SCS 1001824 Static Shielding Bag is a critical component for safeguarding electronic devices from electrostatic discharge (ESD) damage. This bag, part of the 1000 Series, is manufactured using a robust polyester, metal, and polyethylene laminate, offering a multi-layered defense against static electricity. The exterior surface is designed to be static dissipative, allowing electrostatic charges to be safely removed when grounded. The bag's construction provides excellent discharge shielding, ensuring a secure environment for sensitive electronics during storage and transportation. It is commonly used in electronics manufacturing, assembly, and repair processes where ESD control is paramount. The bag is heat sealable for secure closure and is printed with an ESD protective symbol and lot code for traceability.
SCS 1001824 Static Shielding Bag Specifications:
- Material: Polyester, Metal, Polyethylene Laminate
- Thickness: 2.8 mils (0.071 mm +/-10%)
- Tensile Strength: 4600 PSI (32 MPa)
- Puncture Resistance: 12 lbs (53 N)
- Seal Strength: 11 lbs (48 N)
- ESD Shielding: <10 nJ (ANSI/ESD STM11.31)
- Surface Resistance (Exterior): < 1 x 10^4 to < 1 x 10^11 ohms (ANSI/ESD STM11.11)
- Surface Resistance (Interior): < 1 x 10^11 ohms (ANSI/ESD STM11.11)
- Static Decay: < 2 seconds (ETS 406D)
- Transparency: 40%
- Heat Sealing Temperature: 300ºF – 375°F (149ºC – 190°C)
- Heat Sealing Time: 0.5 – 3.5 seconds
- Heat Sealing Pressure: 30 – 70 PSI (206 – 482 KPa)
- Marking Adhesion: Pass (IPC-TM-650 2.4.1)
- Cleanliness: Silicone Not Detected (FTIR)
- Meets Standards: ANSI/ESD S20.20, ANSI/ESD S541, ANSI/ESD S11.4 Level 3
- Free Of: Amines, silicones, and heavy metals
