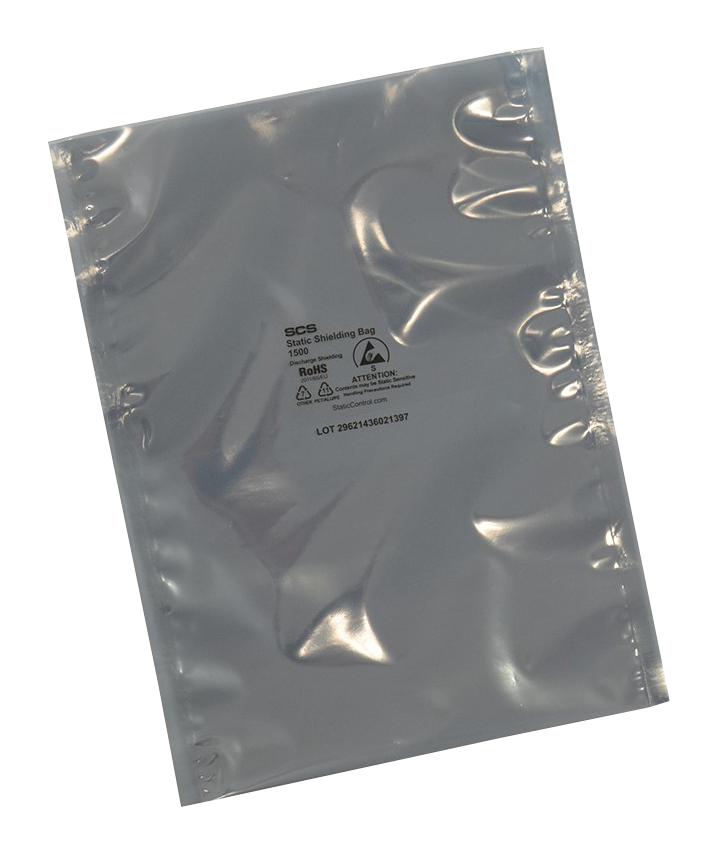

SCS 1502436 Metal-Out Static Shielding Bag
SCS Metal-Out Static Shielding Bags are manufactured from a metallized polyester and polyethylene laminate with a proprietary top coating. These bags offer excellent electrostatic discharge (ESD) protection and minimize electrical field penetration, safeguarding sensitive electronic components during shipment and storage. They meet ANSI/ESD S20.20, ANSI/ESD S541, and ANSI/ESD S11.4 Level 3 standards, ensuring reliable performance. The bags are heat sealable, printed with traceability markings, and free of amines, silicones, and heavy metals, making them suitable for a wide range of commercial applications.
SCS 1502436 Metal-Out Static Shielding Bag Specifications:
- Material: Metallized Polyester and Polyethylene Laminate
- Shielding: <10 nJ (ANSI/ESD STM11.31)
- Surface Resistance (Exterior): 1 x 10[4] to < 1 x 10[11] ohms (ANSI/ESD STM11.11)
- Surface Resistance (Interior): 1 x 10[4] to < 1 x 10[6] ohms (ANSI/ESD STM11.11)
- Charge Retention: <100 volts (1410.515)
- Puncture Resistance: 10 lbs, 44 N (MIL-STD-3010 Method 2065)
- Seal Strength: 14 lbs, 62 N (ASTM D882)
- Thickness: 3 mils, .0762 mm +/-10%
- Transparency: 40% (Tobias)
- Marking Adhesion: Pass (IPC-TM-650 2.4.1)
- Heat Sealing Temperature: 300ºF – 375°F (149ºC – 190°C)
- Heat Sealing Time: 0.5 – 3.5 seconds
- Heat Sealing Pressure: 30 – 70 PSI (206 – 482 KPa)
- Cleanliness: Silicone Not Detected (ASTM-E168 (FTIR))
- Tolerance (Width): -0, +1/4"
- Tolerance (Length): +/- 1/8"
- Tolerance (Offset): 0 to 1/4"
- Tolerance (Seal Width): +/- 1/8"
