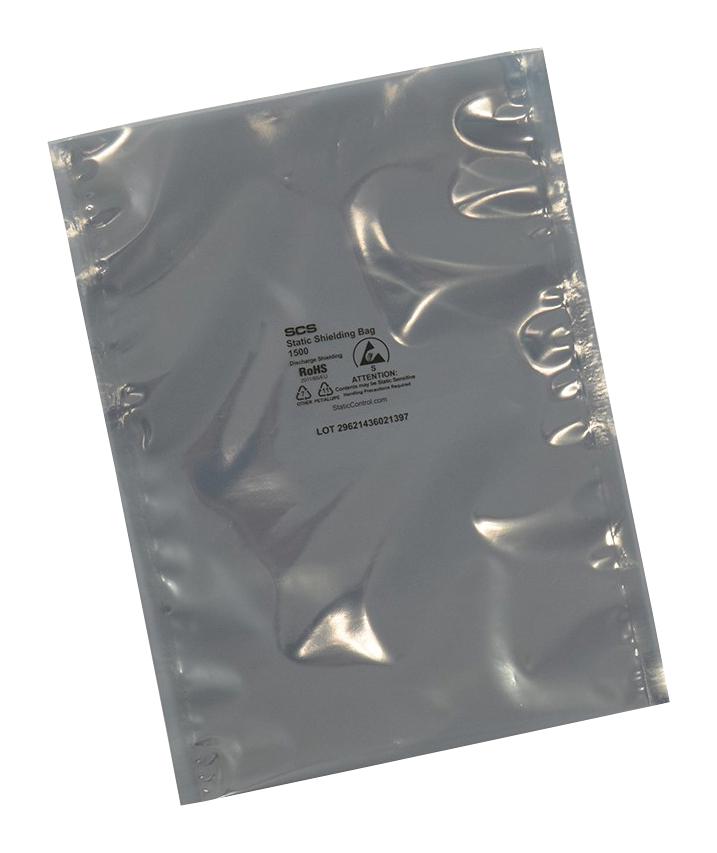

SCS 15057 Metal-Out Static Shielding Bag
SCS Metal-Out Static Shielding Bags (15057 series) are constructed from a metallized polyester and polyethylene laminate with a proprietary top coating for rapid electrical field discharge. This design provides robust shielding against electrostatic discharge (ESD) and minimizes electrical field penetration, protecting sensitive electronics during shipment and storage. The bags are free of amines, silicones, and heavy metals and are manufactured in the United States. They are suitable for commercial applications and meet stringent industry standards.
SCS 15057 Metal-Out Static Shielding Bag Specifications:
- Puncture Resistance: 10 lbs, 44 N MIL-STD-3010 Method 2065
- Seal Strength: 14 lbs, 62 N ASTM D882
- Thickness: 3 mils, .0762 mm +/-10% MIL-STD-3010 Test Method 1003 Method B
- Marking Adhesion: Pass IPC-TM-650 2.4.1
- Transparency: 40% Tobias
- Discharge Shielding: <10 nJ ANSI/ESD STM11.31
- Surface Resistance (Interior): 1 x 10 [4] to < 1 x 10 [6] ohms ANSI/ESD STM11.11
- Surface Resistance (Exterior): 1 x 10 [4] to < 1 x 10 [11] ohms ANSI/ESD STM11.11
- Charge Retention: <100 volts 1410.515 Rev 2
- Silicone: Not Detected ASTM-E168 (FTIR)
- Heat Sealing Temperature: 300ºF – 375°F, 149ºC – 190°C
- Heat Sealing Time: 0.5 – 3.5 seconds
- Heat Sealing Pressure: 30 – 70 PSI, 206 – 482 KPa
- Tolerance (Width): -0, +1/4"
- Tolerance (Length): +/- 1/8" Offset 0 to 1/4"
- Seal Width: 3/8" +/- 1/8"
