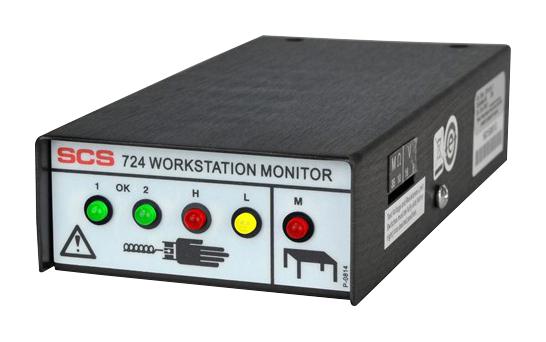

SCS 724MO Grounding Workstation Monitor
The 724MO from SCS is a workstation monitor designed to continuously test and monitor two dual-wire wrist straps and one work surface mat for proper grounding. It adheres to ANSI/ESD S20.20 standards and ESD TR12-01, ensuring compliance with electrostatic discharge control requirements. The system uses a DC current source with a special wristband and wrist cord containing two independent elements and a current limiting resistor to measure loop resistance. It features adjustable test voltage settings (9V or 16V), customizable upper resistance limits (10 or 35 MΩ), and configurable audible alarms with volume control. The device provides visible and audible alerts for improper grounding and is easy to install and calibrate (NIST traceable). Compact in size (6.5 x 3.125 x 1.375 inches), it also includes an operator remote (2.75 x 1 x 1 inches). Suitable for test and measurement applications, it meets UL and CE requirements. The package includes the workstation monitor, remote, cabling, terminal blocks, mounting hardware, and calibration certificate. Not suitable for use by individuals with pacemakers or in explosive environments.
SCS 724MO Grounding Workstation Monitor Specifications:
- Dimensions: 6.5 inches x 3.125 inches x 1.375 inches (16.5 cm x 7.9 cm x 3.5 cm)
- Operator Remote Dimensions: 2.75 inches x 1.0 inch x 1.0 inch (7.0 cm x 2.5 cm x 2.5 cm)
- Test Voltage: 9 VDC or 16 VDC (open circuit, less than 3 microamps typical)
- Resistance Limits: 10 MΩ or 35 MΩ (adjustable)
- Power Requirements: 100-120 VAC, 25 VDC @ 50 mA, input socket compatible with North American outlets
- Environmental Conditions: Operating temperature 10°C to 43°C, Humidity max 80% at 31°C
- Ingress Protection: IPX0, Altitude up to 2000 meters
- Safety Standards: Meets UL and CE safety requirements
- Certifications: UL, CE, NIST traceable calibration
- Material: Durable plastic housing
- Electrical: DC current source for resistance measurement, configurable alarms
- Additional features: Adjustable alarm volume, visual and audible fault indicators
Buy the SCS Series 724 Workstation Grounding Monitor: 724MO
Enhance your static control measures with the SCS 724MO workstation monitor. This compact device reliably tests and monitors wrist straps and work surface mats for proper grounding, ensuring static discharge safety. Easily adjustable test voltages and resistance limits, along with configurable alarms, provide precise control. Simple to install and calibrated with NIST traceability, it offers visible and audible alerts for faults. Perfect for static-sensitive environments, it includes remote control, cabling, mounting hardware, and calibration certificate—order online today for dependable static discharge management.
Get SCS 724MO workstation grounding monitor today—designed for reliable wrist strap and mat grounding, with easy calibration and compliance with industry standards.
