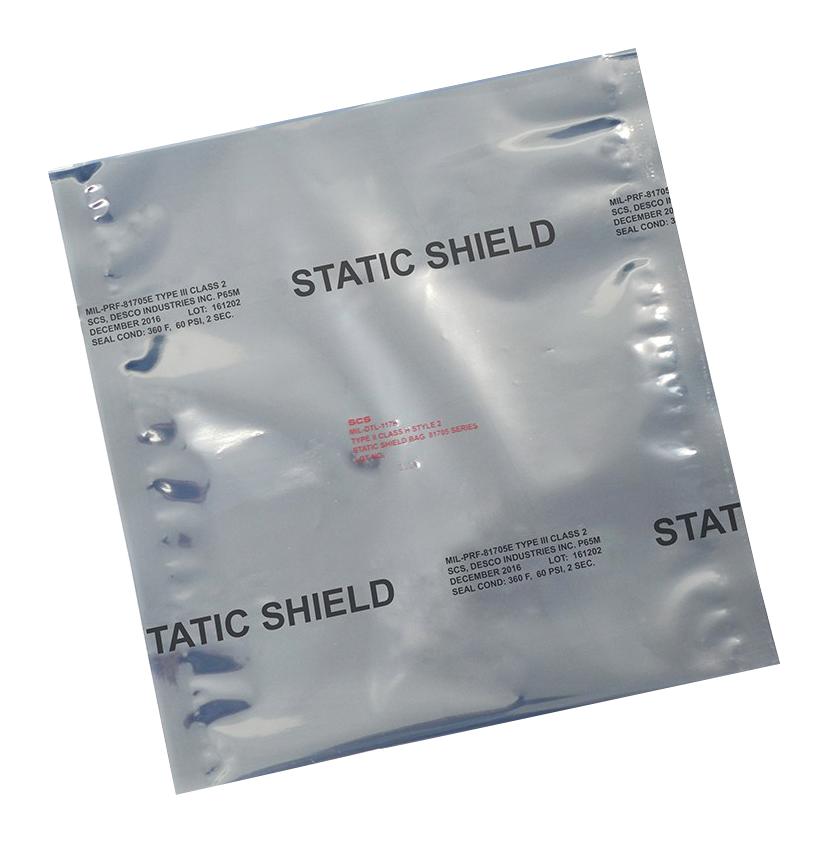

SCS 817912 Static Shield Bag
SCS Static Shield Bags, part number 817912, provide reliable electrostatic discharge (ESD) protection for sensitive electronic components and devices. Constructed from a four-layer laminate including a static dissipative coating, polyester, metal, and polyethylene, these bags offer excellent shielding performance. They are qualified to MIL-PRF-81705E Type III, Class 2, ensuring compliance with stringent military standards. The bags are ideal for use in electronics manufacturing, aerospace, and other industries where ESD control is critical. Custom conversion options are available to meet specific packaging requirements, and the bags are free from silicones and heavy metals.
SCS 817912 Static Shield Bag Specifications:
- Tensile Strength: 4600 PSI, 32 MPa
- Puncture Resistance: 12 lbs, 53 N
- Seam Strength: Pass
- Thickness: 2.8 mils, 0.071 mm +/-10%
- Marking Abrasion Resistance: Pass
- Contact Corrosivity: Pass
- Transparency: 40%
- EMI Attenuation: ≥ 10 db
- ESD Shielding: ≤ 10 nJ
- Surface Resistivity - Interior: < 1 x 10 [12] ohms/sq
- Surface Resistivity - Exterior: ≥ 1 x 10 [5] to < 1 x 10 [12] ohms/sq
- Static Decay: ≤ 2 seconds
- Heat Sealing Temperature: 360°F, 182ºC
- Heat Sealing Time: 2 seconds
- Heat Sealing Pressure: 60 PSI, 414 KPa
