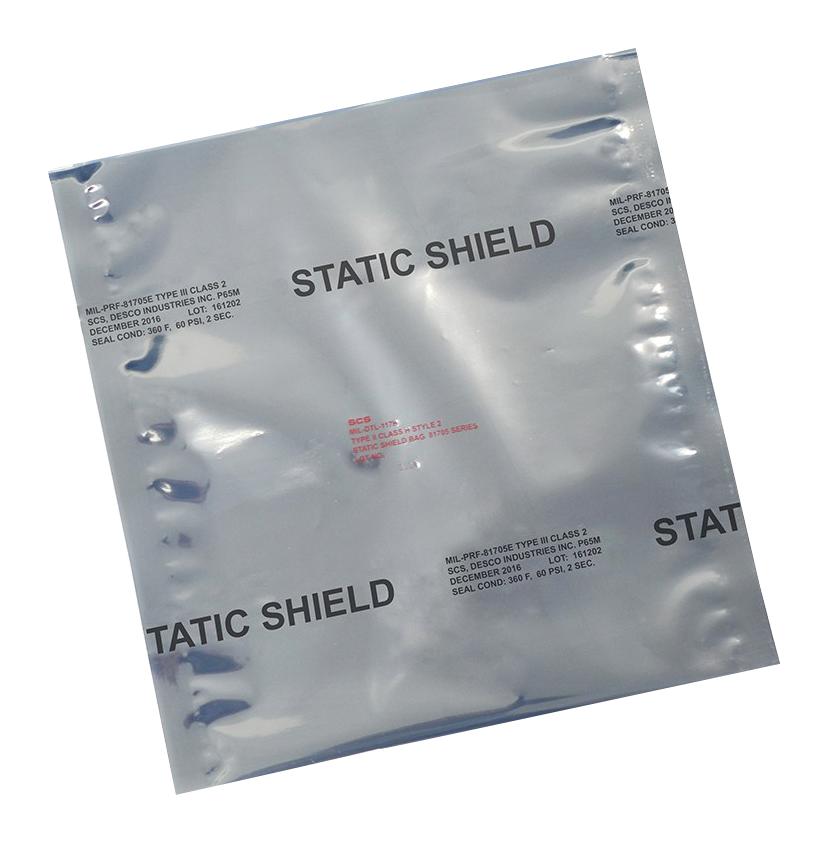

SCS 8171216 Static Shield Bag
SCS Static Shield Bags, part number 8171216, provide robust electrostatic discharge (ESD) shielding for sensitive electronic components. These bags feature a four-layer construction, including a static dissipative coating, polyester, a metal layer, and a polyethylene laminate. This design ensures effective discharge shielding and allows for electrostatic charges to be removed when grounded. The bags are qualified to MIL-PRF-81705E Type III, Class 2, and are commonly used in electronics manufacturing, aerospace, and other industries where ESD control is critical. They are free of silicones and heavy metals, ensuring compatibility with a wide range of electronic devices.
SCS 8171216 Static Shield Bag Specifications:
- Tensile Strength: 4600 PSI, 32 MPa
- Puncture Resistance: 12 lbs, 53 N
- Seam Strength: Pass
- Thickness: 2.8 mils, 0.071 mm +/-10%
- Marking Abrasion Resistance: Pass
- Contact Corrosivity: Pass
- Transparency: 40%
- EMI Attenuation: ≥ 10 db
- ESD Shielding: ≤ 10 nJ
- Surface Resistivity (Interior): < 1 x 10 [12] ohms/sq
- Surface Resistivity (Exterior): ≥ 1 x 10 [5] to < 1 x 10 [12] ohms/sq
- Static Decay: ≤ 2 seconds
- Heat Sealing Temperature: 360°F, 182ºC
- Heat Sealing Time: 2 seconds
- Heat Sealing Pressure: 60 PSI, 414 KPa
- Material Composition: Four-layer laminate (static dissipative coating, polyester, metal, polyethylene)
- Color: Red (default)
