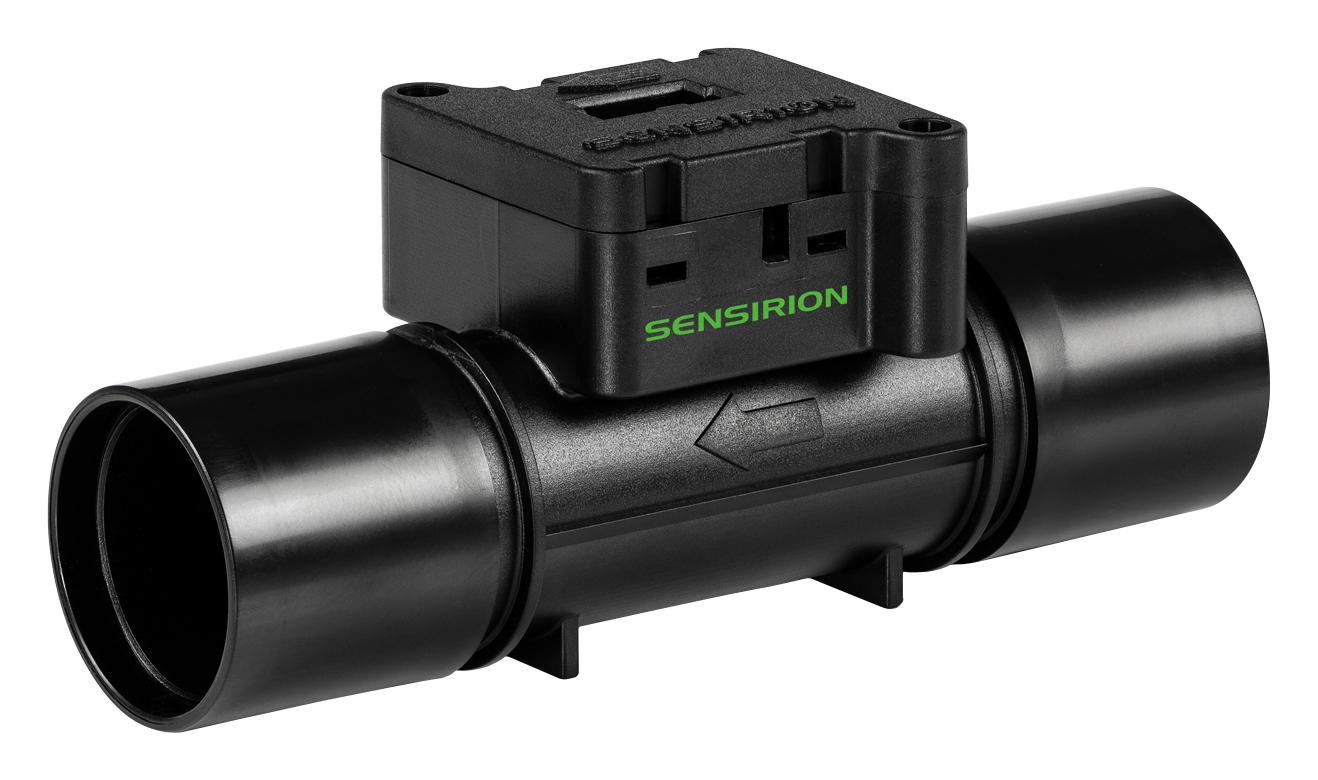

SENSIRION SFM3013300CL Digital Mass Flow Meter
The SFM3013 series is a highly reliable digital mass flow meter designed for low pressure drop and bidirectional flow measurement. Based on CMOSens® technology, it offers excellent stability against overpressure and can be calibrated for different gas mixtures, including O2, air, and Heliox. Its compact design features a flow range up to 300 standard liters per minute, minimal pressure drop, and no recalibration needed. Suitable for precise applications in medical and industrial fields, it communicates via I2C with fast response times and robust performance in diverse environments.
SENSIRION SFM3013300CL Digital Mass Flow Meter Specifications:
- Flow range: up to 300 sim
- Calibrated gases: O2, air, Heliox (optional)
- Pressure operating range: up to 1 bar gauge pressure
- Pressure drop: < 3 Pa at 60 slm; < 750 Pa at 300 sim
- Response time: < 3 ms
- Communication interface: I2C, 400 kHz to 1 MHz
- Resolution: 16-bit
- Power supply: 3.3 V to 5 V
- Power consumption: measurement mode 55 mA, idle 14 mA, sleep 4 μA
- Temperature range: -20°C to +85°C
- Dimensions: approximated 31.5 mm x 22 mm
- Weight: 146 g
- Materials: PPE+PS, Si, glass, gold, copper alloy, stainless steel, RoHS and REACH compliant
- Operational pressure: 0 to 1 bar gauge, overpressure limit -0.2 to +1 bar
- Warm-up time: approx. 30 ms for accurate measurement
- Measurement update rate: approx. 1800-2200 Hz
- Measurement accuracy: ± 4% of span
- Output data: flow, temperature, status word
Buy the Buy Sensirion SFM3013 Series Digital Mass Flow Meter Part Number 3.000.387 Online
Order the Sensirion SFM3013 digital mass flow meter online today and benefit from its high stability, quick response, and broad calibration options including Heliox. With zero recalibration needed, it provides precise flow measurement up to 300 standard liters per minute, suitable for medical and industrial uses. Its compact design and I2C interface ensure easy integration into your systems. Select this reliable sensor to achieve accurate, stable, and efficient flow control in demanding environments.
Buy Sensirion SFM3013 mass flow sensor now and experience unmatched reliability, rapid response, and precise gas measurement for industrial and medical applications.
