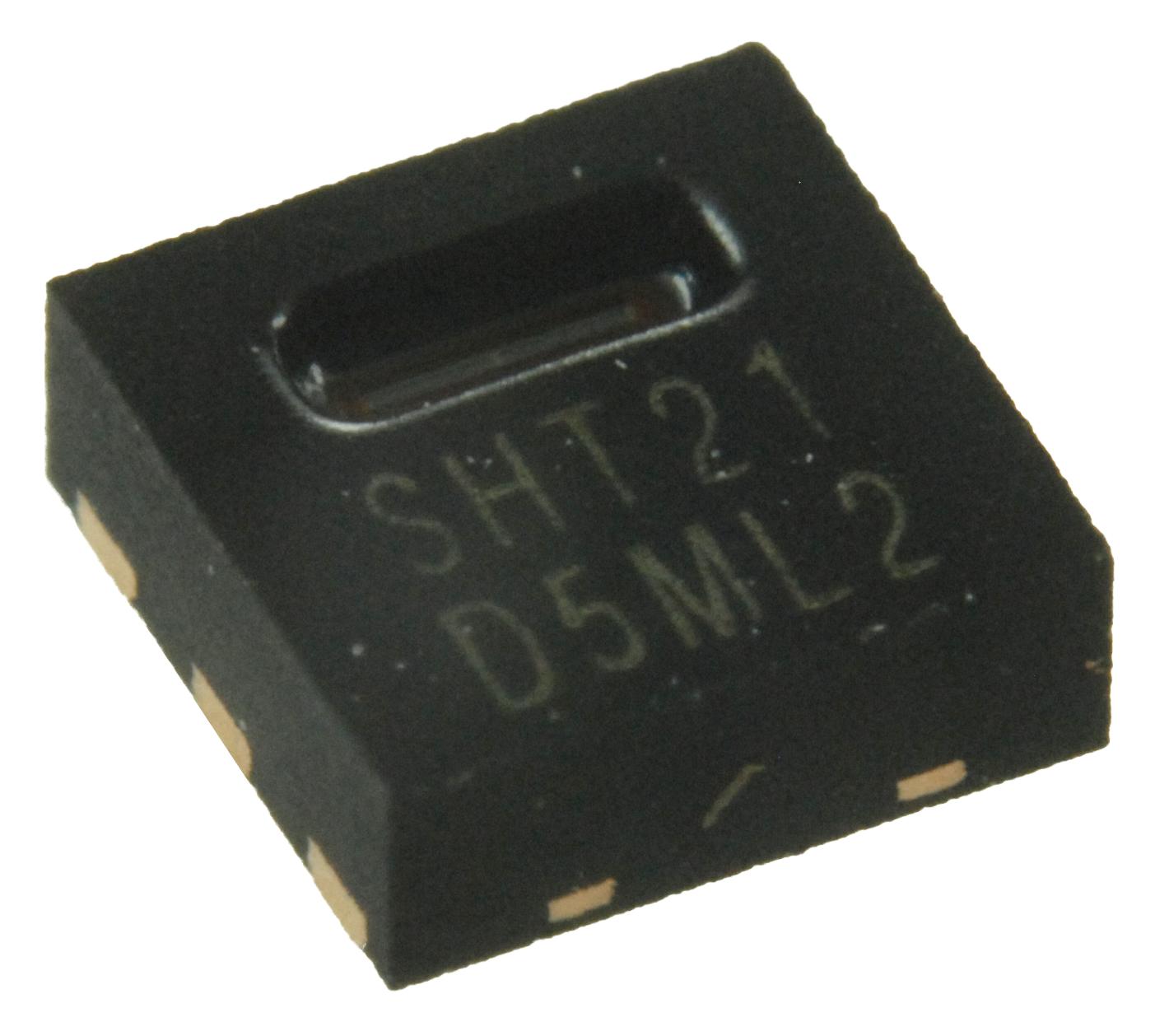

SENSIRION SHT21TR04KS Humidity and Temperature Sensor
The SHT21 is a surface-mount temperature and humidity sensor from Sensirion, widely regarded as an industry standard due to its compact form factor and intelligent design. Encased in a reflow-solderable 3x3mm DFN package with a height of 1.1mm, it provides calibrated, linearized digital signals via I²C interface. The sensor integrates a capacitive humidity sensor, a bandgap temperature sensor, and specialized analog and digital circuitry on a single CMOSens® chip, offering high accuracy, stability, and low power consumption. Key features include a ±2% RH accuracy, digital output, low energy consumption of about 3.2µW at 8-bit resolution with one measurement per second, and a humidity response time of approximately 8 seconds. The device operates within a supply voltage range of 2.1V to 3.6V and is suitable for sensing and instrumentation applications. It is sensitive to electrostatic discharge (ESD), so proper handling precautions are advised.
SENSIRION SHT21TR04KS Humidity and Temperature Sensor Specifications:
- Dimensions: 3 x 3 mm footprint, height 1.1 mm
- Package: DFN, reflow solderable
- Humidity Range: 0-100% RH, extended
- Temperature Range: -40°C to 125°C
- Measurement Resolution: 8/12bit RH, 14/12bit T
- Accuracy: ±2% RH, ±0.3°C
- Response Time: Humidity approximately 8 seconds
- Power Consumption: about 3.2 µW at 8-bit resolution, 1 measurement/sec
- Supply Voltage: 2.1V to 3.6V
- Long-term Stability: <0.04°C/year
- Communication: I²C digital interface
- Operating Conditions: Stable from -40°C to 125°C, humidity 0-100%
- Material: Silicon sensor with Cu lead-frame, epoxy mold
- ESD Sensitivity: Precautions required during handling
Buy the Sensirion SHT21 – Reliable Humidity and Temperature Sensor for Industrial Applications
Get your Sensirion SHT21 humidity and temperature sensor online now to ensure reliable, precise environmental monitoring for your industrial or IoT projects. Featuring a compact 3x3mm DFN package, this sensor offers calibrated digital signals via I²C interface, ensuring easy integration into your systems. Its low power consumption of approximately 3.2µW makes it ideal for battery-powered applications. With a fast response time of around 8 seconds and a proven stability of less than 0.04°C per year, the SHT21 guarantees long-term accuracy, making it an essential component for environmental sensing needs.
Order your Sensirion SHT21 humidity and temperature sensor today and give your projects the dependable quality they deserve, with low power consumption and high accuracy.
Frequently Asked Questions
Where can I buy SENSIRION SHT21TR04KS?
You can click on the BUY or RFQ button to purchase SHT21TR04KS from an authorized SENSIRION distributor.
How do I troubleshoot issues or seek technical support for part SHT21TR04KS?
You can download the SHT21TR04KS datasheet or visit the SENSIRION website for support.
Who is the manufacturer of SHT21TR04KS?
SENSIRION
