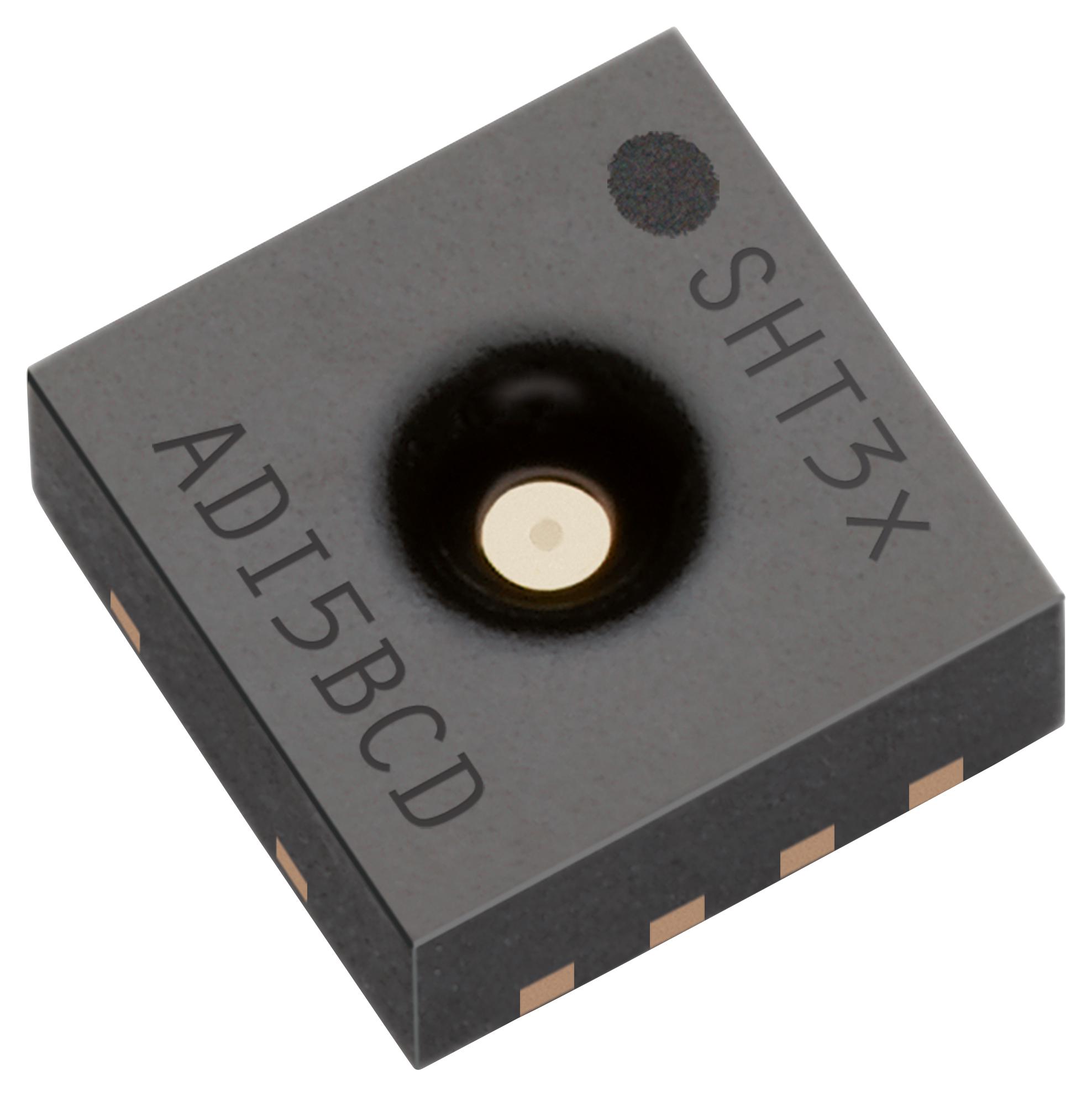

SENSIRION SHT31ADISB25KS humidity temperature sensor
The SHT3xA-DIS is an automotive-grade humidity and temperature sensor built with Sensirion's CMOSens® technology, offering fully calibrated, linearized, and temperature-compensated digital outputs. It features a compact DFN package with a footprint of 2.5 x 2.5 mm and a height of only 0.9 mm, making it ideal for integrated applications. The sensor operates over a wide supply voltage range of 2.4 V to 5.5 V and supports I2C communication with speeds up to 1 MHz, providing high accuracy of ±1.5 %RH and ±0.2 °C, fast startup times, and reliable long-term stability suitable for automotive industry standards.
SENSIRION SHT31ADISB25KS humidity temperature sensor Specifications:
- Operating Range: 2.4 V to 5.5 V supply voltage
- Measurement Accuracy: ±1.5 %RH, ±0.2 °C (typical)
- Resolution: 0.01 %RH, 0.01 °C
- Package: 2.5 x 2.5 mm DFN, height of 0.9 mm
- Communication Interface: I2C up to 1 MHz, two user-selectable addresses
- Repeatability: Medium 0.15 %RH, High 0.08 %RH
- Response Time: approx. 86 seconds (humidity)
- Temperature Range: -40°C to 90°C
- Long-term Drift: <0.25 %RH/year
- Reliability: Automotive qualified (AEC-Q100), RoHS & WEEE compliant
- Calibration: Fully calibrated, linearized, temperature compensated
- Physical: Silicon sensor chip mounted on Cu/Ni/Pd/Au plated lead frame, overmolded with epoxy
Buy the Sensirion SHT35A – Reliable Humidity and Temperature Sensor for Industrial Applications
Purchase the Sensirion humidity and temperature sensor today and experience industry-leading accuracy, rapid startup, and durability. Designed for automotive and industrial applications, this compact and reliable sensor supports wide voltage operation from 2.4 V to 5.5 V, features I2C communication at up to 1 MHz, and offers fully calibrated, temperature-compensated digital outputs. Its small DFN package of 2.5 x 2.5 mm with a height of just 0.9 mm makes integration into compact spaces seamless, ensuring long-term stability and high performance under harsh conditions.
Get Sensirion SHT35A today—built for precision, fast response, and long-lasting durability in demanding environments.
Frequently Asked Questions
Where can I buy SENSIRION SHT31ADISB25KS?
You can click on the BUY or RFQ button to purchase SHT31ADISB25KS from an authorized SENSIRION distributor.
How do I troubleshoot issues or seek technical support for part SHT31ADISB25KS?
You can download the SHT31ADISB25KS datasheet or visit the SENSIRION website for support.
Who is the manufacturer of SHT31ADISB25KS?
SENSIRION
