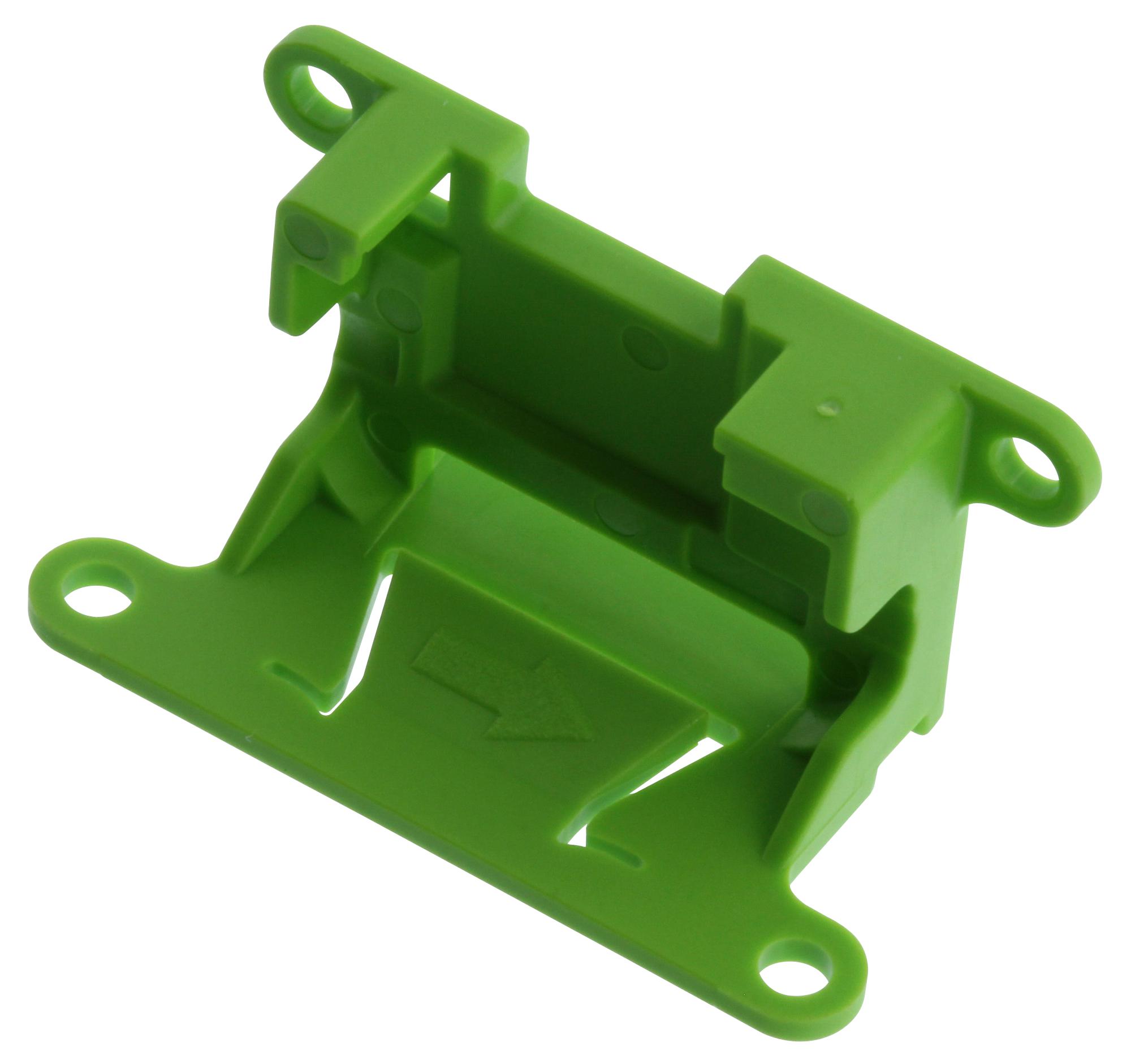

SENSIRION SLF3XMOUNTINGCLAMP Liquid Flow Sensor
The SLF3S-1300F is a compact, bi-directional liquid flow sensor designed for high-volume, precise measurements up to 40 ml/min. It features calibration, temperature compensation, a digital I2C interface, and uses CMOSens® technology for high reliability and stability. Ideal for OEMs, its small form factor, quick response time below 20 ms, and ability to detect flow failures make it suitable for industrial and medical applications. The sensor’s robust mechanical and fluidic design ensures consistent performance in demanding environments.
SENSIRION SLF3XMOUNTINGCLAMP Liquid Flow Sensor Specifications:
- Full scale flow rate: 40 ml/min
- Sensor output limit: 65 ml/min
- Accuracy: ±5% of measured value or 0.1 ml/min (whichever larger)
- Repeatability: 0.5% of measured value or 0.01 ml/min
- Temperature coefficient: TBD % / °C
- Flow direction: Bi-directional
- Power supply: 3.2 to 3.8 V DC, typically 3.5 V
- Power consumption: 4.5 to 6 mA during measurement, 0.6 mA in idle, 0.001 mA in sleep
- Response time: <20 ms
- Fluidic connector: Ye 28 flat bottom ports, recommended tubing ID 2 mm
- Max operating pressure: 12 bar, Burst pressure: 25 bar
- Physical dimensions: approximately 48 x 15.5 x 8.9 mm
- Weight: about 3.09 g
- Inner diameter: ~1.4 mm
- Inner volume: 58 pl
- Operating temperature: +5°C to +50°C
- Maximum humidity: 95% RH non-condensing
- Environmental rating: ESD sensitive, handle with precautions
- Interface: 6-pin Molex PicoBlade, SDA, SCL, VDD, GND connections
- Response after reset: Max 25 ms to reset, warm-up time needed for stable operation
Buy the Sensirion SLF3S-1300F – Reliable Liquid Flow Sensor for Industrial Applications
Experience the high-precision and reliable performance of the Sensirion liquid flow sensor designed for accurate measurement of dynamic liquid flow rates up to 40 ml/min. Its compact and lightweight design, combined with a fast response time below 20 ms, makes it ideal for high-volume OEM applications. Calibrated and temperature compensated, the sensor ensures long-term stability. Easily integrate with digital I2C interface, and utilize the robust fluidic connectors for seamless installation. Perfect for industrial, medical, and laboratory environments, it provides dependable flow data to optimize your processes. Purchase online today for effortless integration and exceptional performance.
Get Sensirion SLF3S-1300F today—built for precision, durability, and high-performance liquid flow measurement in demanding environments.
Frequently Asked Questions
Where can I buy SENSIRION SLF3XMOUNTINGCLAMP?
You can click on the BUY or RFQ button to purchase SLF3XMOUNTINGCLAMP from an authorized SENSIRION distributor.
How do I troubleshoot issues or seek technical support for part SLF3XMOUNTINGCLAMP?
You can download the SLF3XMOUNTINGCLAMP datasheet or visit the SENSIRION website for support.
Who is the manufacturer of SLF3XMOUNTINGCLAMP?
SENSIRION
