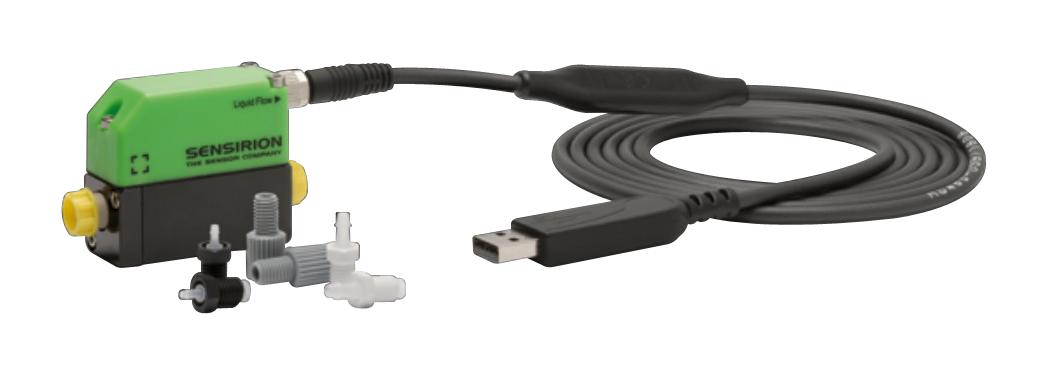

SENSIRION SLI0430FMK Liquid Flow Meter
The SLI Liquid Flow Meter Series by Sensirion offers highly accurate, non-invasive microfluidic measurement of very low liquid flow rates up to 10 ml/min. Designed with advanced MEMS sensors, it features several interface options including 2C-Bus, RS485, USB, and analog outputs for flexible integration. The flow path is formed by borosilicate glass with PEEK fittings, ensuring excellent chemical resistance. Compact and IP65 protected, these meters deliver fast response times of 40 ms, making them suitable for demanding industrial, laboratory, and OEM applications with robust construction and precise calibration for water and IPA.
SENSIRION SLI0430FMK Liquid Flow Meter Specifications:
- Full scale flow rate (H2O): 80 ul/min (SLI-0430), 1000 ul/min (SLI-1000), 5000 ul/min (SLI-2000)
- Sensor output limit: 120 ul/min, 1100 ul/min, 5500 ul/min respectively
- Accuracy below full scale: 5% of measurement value or 0.15%, 0.2%, 0.2% of full scale accordingly
- Repeatability: 0.5% of measurement value or 0.01%, 0.02%, 0.02% of full scale respectively
- Temperature coefficient: 0.13, 0.1, 0.1% mv/°C
- Flow detection response time: 40 ms
- Operating temperature: +10°C to +50°C
- Maximum operating pressure: 15 bar
- Burst pressure: 30 bar
- Wetted materials: borosilicate glass, PEEK fittings, FEP sealing
- Fluidic ports: 1/16” or 1/8” OD tubing, recommends 4 mm ID
- Mechanical dimensions: 58 x 42.5 x 20 mm, IP65 protection, weight 53g
Buy the Buy Sensirion Liquid Flow Meter Part Number SLI0430FMK Online
Order the Sensirion SLI Liquid Flow Meter series online today for precise, non-invasive liquid flow measurement in low flow applications. Perfect for industrial, laboratory, and OEM use, these meters are equipped with advanced MEMS sensors delivering fast 40 ms response times and excellent chemical resistance. Available with multiple interface options including USB, RS485, and 2C-Bus, ensuring seamless integration. Their compact design, IP65 protection, and accurate calibration for water and IPA make them the ideal choice for demanding fluid control and monitoring tasks. Purchase now for reliable performance.
Buy Sensirion SLI0430FMK now and experience unmatched microfluidic measurement precision, fast response, and chemical resistance for industrial applications.
