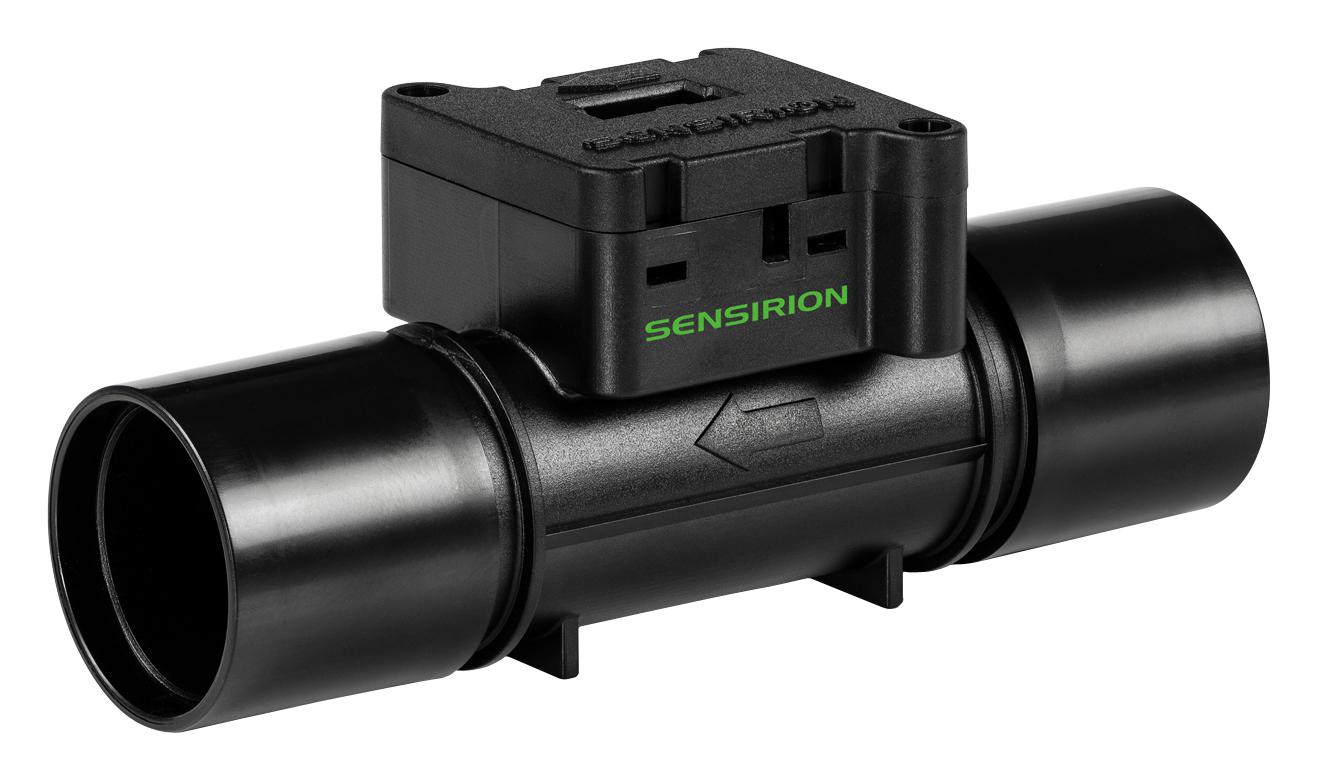

SENSIRION SFM3013300CLM Digital Mass Flow Meter
The SFM3013 series is a low-pressure, bidirectional digital mass flow meter featuring CMOSens® technology. It offers accurate flow measurement up to 300 sim, calibrated for O2, air, and Heliox mixtures. With a PC interface and no recalibration needed, it provides stable performance against overpressure up to 1 bar gauge. Its compact design ensures low pressure drop, fast response time below 3ms, and reliable long-term stability, making it ideal for precise gas flow monitoring in medical and industrial applications.
SENSIRION SFM3013300CLM Digital Mass Flow Meter Specifications:
- Flow range: up to 300 sim
- Calibrated gases: O2, air, Heliox mixtures
- Pressure drop @ 60slm: <0.75 Pa
- Pressure range: up to 1 bar gauge pressure
- Response time: <3 ms
- Resolution: 16-bit
- Operating temperature: -20°C to +85°C
- Operating pressure: 0.13 to 13 bar absolute, overpressure max 1 bar gauge
- Supply voltage: 3.3 V (±5%)
- Supply current: typ. 55 mA, idle 14 mA, sleep 4 μA
- Dimensions: approx. 34 x 22 x 11.5 mm
- Material: PPE+PS blend, Si, glass, copper alloy, stainless steel (annealed)
- IP20 compliance, RoHS and REACH compliant
- Communication: I2C interface, 400-1000 kHz
- Intelligent diagnostics with CRC checksum for reliability
- Long-term stability and minimal recalibration required
Buy the Sensirion Series SFM3013 Digital Mass Flow Meter: SFM3013-300-CLM
Purchase the Sensirion Series SFM3013 digital mass flow meter online now for accurate, reliable gas flow measurement. Its low-pressure drop, fast response, and CMOSens® technology make it ideal for medical, industrial, and research applications. With calibration for O2, air, and Heliox, and no recalibration needed, this compact device ensures stability and long-term performance. Easy to integrate via I2C, providing continuous real-time flow and temperature data. Get yours today to enhance your gas monitoring systems with dependable technology.
Order your Sensirion Series SFM3013 mass flow meter today and ensure precise, reliable gas flow measurement for your medical and industrial projects.
Frequently Asked Questions
Where can I buy SENSIRION SFM3013300CLM?
You can click on the BUY or RFQ button to purchase SFM3013300CLM from an authorized SENSIRION distributor.
How do I troubleshoot issues or seek technical support for part SFM3013300CLM?
You can download the SFM3013300CLM datasheet or visit the SENSIRION website for support.
Who is the manufacturer of SFM3013300CLM?
SENSIRION
