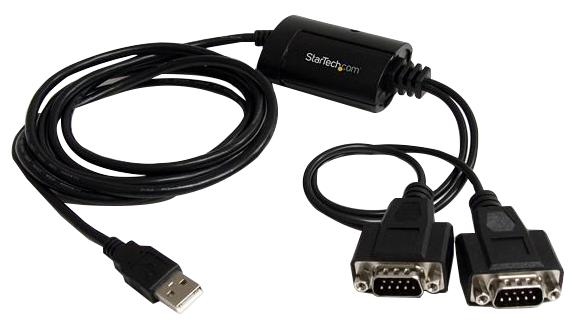

STARTECH ICUSB2322F Dual RS232 Serial Adapter
The 2 Port USB to Serial RS232 Adapter Cable with COM Retention effectively converts a USB 1.1 or 2.0 port into two RS232 DB9 serial ports, facilitating connection and control of serial devices. Equipped with the FTDI chipset, it supports high baud rates up to 921.6 Kbps, maintains COM port assignments across reboots, and is compatible with Windows, Mac OS, and Linux. Its compact, portable design features a 6-foot cable, wall-mount capability, and is powered via USB, making it ideal for legacy device integration and industrial, POS, or automation applications. Backed by a 2-year warranty and lifetime support.
STARTECH ICUSB2322F Dual RS232 Serial Adapter Specifications:
- Bus Type: USB 2.0
- Chipset ID: FTDI - FT2232D
- Interface: Serial
- Ports: 2
- Data Bits: 7,8
- FIFO: 128 Bytes
- Max Baud Rate: 921.6 Kbps
- Parity: None, Odd, Even, Mark, Space
- Serial Protocol: RS-232
- Stop Bits: 1,2
- Connector Types: USB A (4 pin) Male, DB-9 (9 pin) Male
- OS Compatibility: Windows 10/8/7/Vista/XP/2000, Windows Server 2012/2008 R2/2003, Mac OS 10.x up to 10.11, 9.x, Linux
- System Requirements: USB 1.1 or better port, powered via USB
- Power Source: USB-powered
- Humidity: 5-95% RH
- Operating Temperature: 0°C to 55°C
- Storage Temperature: -20°C to 85°C
- Cable Length: 1.8 m (6 ft)
- Color: Black
- Enclosure Type: Plastic
- Product Height: 20 mm (0.8 in)
- Product Length: 2133 mm (84 in)
- Product Weight: 159 g (5.6 oz)
- Product Width: 45 mm (1.8 in)
- Shipping Weight: 0.2 kg (0.5 lb)
Buy the Startech ICUSB2322F – Reliable Serial Adapter for Industrial Applications
Enhance your device connectivity with this dual RS232 serial adapter featuring COM retention and FTDI chipset for robust industrial, POS, and automation applications. Compatible with Windows, Mac OS, and Linux, it maintains COM port settings across reboots and supports high baud rates up to 921.6 Kbps. Powered via USB, its compact, portable design includes a 6-foot cable and wall mountability, making it easy to install in various environments. Backed by a 2-year warranty and lifetime support, ensuring dependable performance for legacy device integration.
Buy Startech ICUSB2322F now and experience unmatched reliability and performance for industrial device connections and legacy interface expansion.
Frequently Asked Questions
Where can I buy STARTECH ICUSB2322F?
You can click on the BUY or RFQ button to purchase ICUSB2322F from an authorized STARTECH distributor.
How do I troubleshoot issues or seek technical support for part ICUSB2322F?
You can download the ICUSB2322F datasheet or visit the STARTECH website for support.
Who is the manufacturer of ICUSB2322F?
STARTECH
