STEGO 01141000 Datasheet & Stock

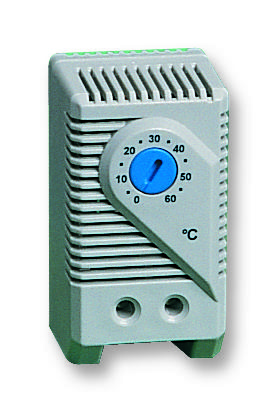

The 01141.0-00 is a small, compact thermostat featuring a bi-metal sensor element and a light grey plastic casing. It is designed as a normally open contact switch used for regulating filter fans, heat exchangers, or for switching signals when a specified temperature limit is exceeded. The contact closes as the temperature rises. The thermostat is mountable on a 35mm DIN rail following EN 60715 standards, allows for variable positioning, and has an IP20 protection class. It offers a switching temperature difference of approximately 7K (±4K tolerance) with a large setting range. Suitable for use with stranded wires (using wire end ferrules), it is easy to install and delivers high switching performance with a maximum capacity of 10A at 250VAC. The device conforms to UL94V0 flammability standards and is suitable for sensing, instrumentation, and signal processing applications.
Frequently Asked Questions
Where can I buy STEGO 01141000?
You can click on the BUY or RFQ button to purchase 01141000 from an authorized STEGO distributor.
How do I troubleshoot issues or seek technical support for part 01141000?
You can download the 01141000 datasheet or visit the STEGO website for support.
Who is the manufacturer of 01141000?
STEGO
