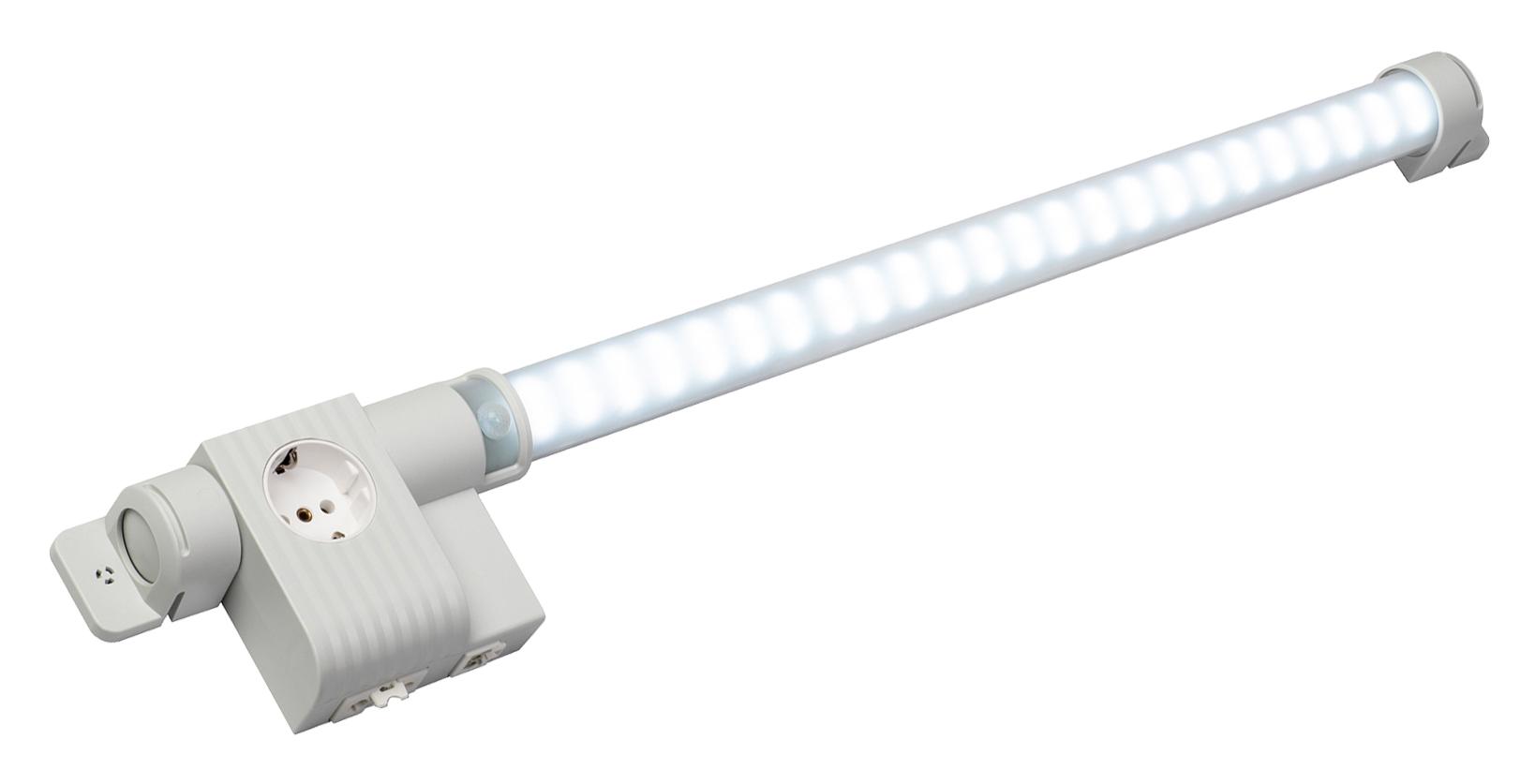

STEGO 12224030 LED Lamp with Socket
The STEGO LED 121/122 Varioline is a powerful and compact LED lamp designed for use in enclosures. It incorporates socket standards for various countries, allowing for the convenient power connection of laptops and diagnostic devices. The LED tube emits a high luminous flux, effectively illuminating enclosures. The lamp offers a 60,000-hour service life and is available with magnet or screw fixing options, providing flexibility in installation. It is ideal for industrial environments requiring reliable and bright illumination.
STEGO 12224030 LED Lamp with Socket Specifications:
- Power consumption: max. 11 W/16 W
- Operating voltage: AC 220 - 240 V, 50/60 Hz (min. AC 200 V, max. AC 265 V)
- AC 120 V: 50/60 Hz (min. AC 110 V, max. AC 130 V)
- Luminous flux: 1,080 Lm/1,730 Lm
- Lamp type: LED
- Angle of radiation: 120°
- Light color: daylight
- Color temperature: 6,500 K
- Service life: 60,000 h at +20 °C (+68 °F)
- Connection: 3-pole connector with snap lock
- AC max current: max. 16 A / AC 240 V
- Mounting: magnet fixing or screw fixing (M5), torque 2 Nm max.
- Casing: plastic, translucent
- Operating/Storage temperature: -30 to +40 °C (-22 to +104 °F) / -40 to +85 °C (-40 to +185 °F)
- Operation/Storage humidity: max. 90 % RH (non-condensing)
- Protection type/Protection class: IP20 / I (earthed)
Buy the 12224.0-30 STEGO LED Lamp with Socket | myMectronic
Securely purchase the STEGO LED 121/122 Varioline lamp online for reliable enclosure lighting.
Buy Now
Frequently Asked Questions
Where can I buy STEGO 12224030?
You can click on the BUY or RFQ button to purchase 12224030 from an authorized STEGO distributor.
How do I troubleshoot issues or seek technical support for part 12224030?
You can download the 12224030 datasheet or visit the STEGO website for support.
Who is the manufacturer of 12224030?
STEGO
